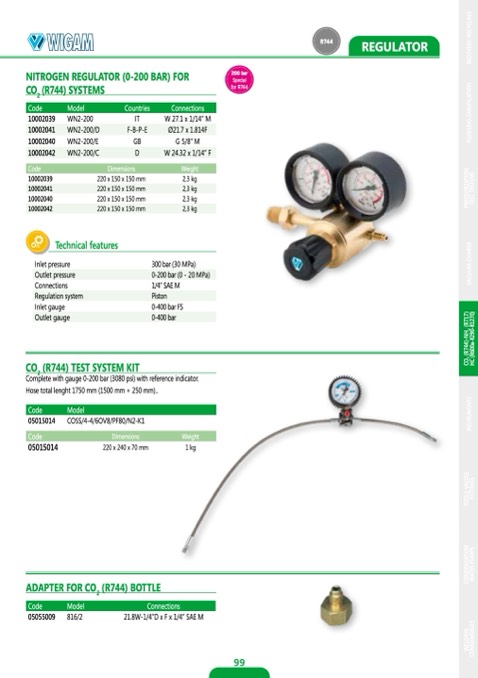

R744
REGULATOR
NITROGEN REGULATOR (0-200 BAR) FOR
200 bar
Special
for R744
CO (R744) SYSTEMS
2
Code
Dimensions
Technical features
Inlet pressure
Connections
Inlet gauge
CO
2
(R744) TEST SYSTEM KIT
Weight
300 bar (30 MPa)
1/4” SAE M
0-400 bar FS
Code
Model
Countries
Connections
10002039
WN2-200
IT
W 27.1 x 1/14” M
10002041
WN2-200/D
F-B-P-E
Ø21.7 x 1.814F
10002040
WN2-200/E
GB
G 5/8” M
10002042
WN2-200/C
D
W 24.32 x 1/14” F
10002039
220 x 150 x 150 mm
2,3 kg
10002041
220 x 150 x 150 mm
2,3 kg
10002040
220 x 150 x 150 mm
2,3 kg
10002042
220 x 150 x 150 mm
2,3 kg
Outlet pressure
0-200 bar (0 - 20 MPa)
Regulation system
Piston
Outlet gauge
0-400 bar
Complete with gauge 0-200 bar (3080 psi) with reference indicator.
Hose total lenght 1750 mm (1500 mm + 250 mm)..
Code
05015014
Model
COSS/4-4/6OV8/PF80/N2-K1
Code
Dimensions
Weight
05015014
220 x 240 x 70 mm
1 kg
ADAPTER FOR CO
2
(R744) BOTTLE
Code
Model
Connections
05055009
816/2
21.8W-1/4”D x F x 1/4” SAE M
99
