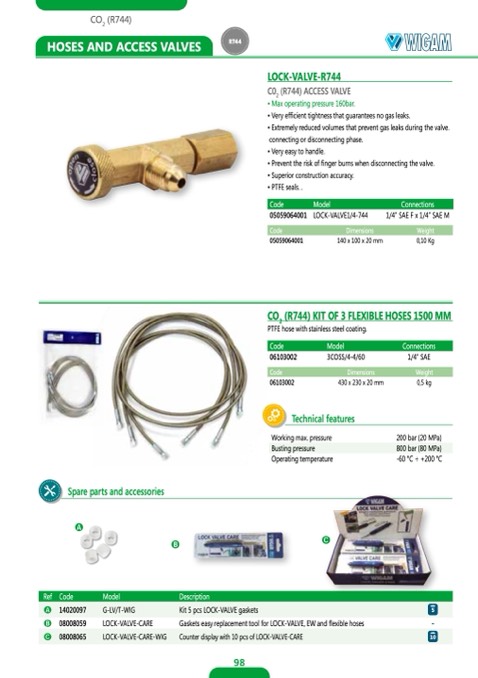

CO

2

(R744)

HOSES AND ACCESS VALVES

R744

LOCK-VALVE-R744

C0

2

(R744) ACCESS VALVE

• Max operating pressure 160bar.

• Very efficient tightness that guarantees no gas leaks.

• Extremely reduced volumes that prevent gas leaks during the valve.

connecting or disconnecting phase.

• Very easy to handle.

• Prevent the risk of finger burns when disconnecting the valve.

• Superior construction accuracy.

• PTFE seals. .

Code

Dimensions

Weight

05059064001

140 x 100 x 20 mm

0,10 Kg

CO

2

(R744) KIT OF 3 FLEXIBLE HOSES 1500 MM

Code

Model

Connections

05059064001

LOCK-VALVE1/4-744

1/4” SAE F x 1/4” SAE M

PTFE hose with stainless steel coating.

Code

Dimensions

06103002

430 x 230 x 20 mm

Technical features

Weight

0,5 kg

Code

Model

Connections

06103002

3COSS/4-4/60

1/4” SAE

Working max. pressure

200 bar (20 MPa)

Busting pressure

800 bar (80 MPa)

Operating temperature

-60 °C ÷ +200 °C

Spare parts and accessories

A

B

C

Ref

Code

Model

Description

A

14020097

G-LV/T-WIG

Kit 5 pcs LOCK-VALVE gaskets

5

B

08008059

LOCK-VALVE-CARE

Gaskets easy replacement tool for LOCK-VALVE, EW and flexible hoses

-

C

08008065

LOCK-VALVE-CARE-WIG

Counter display with 10 pcs of LOCK-VALVE-CARE

10

98
