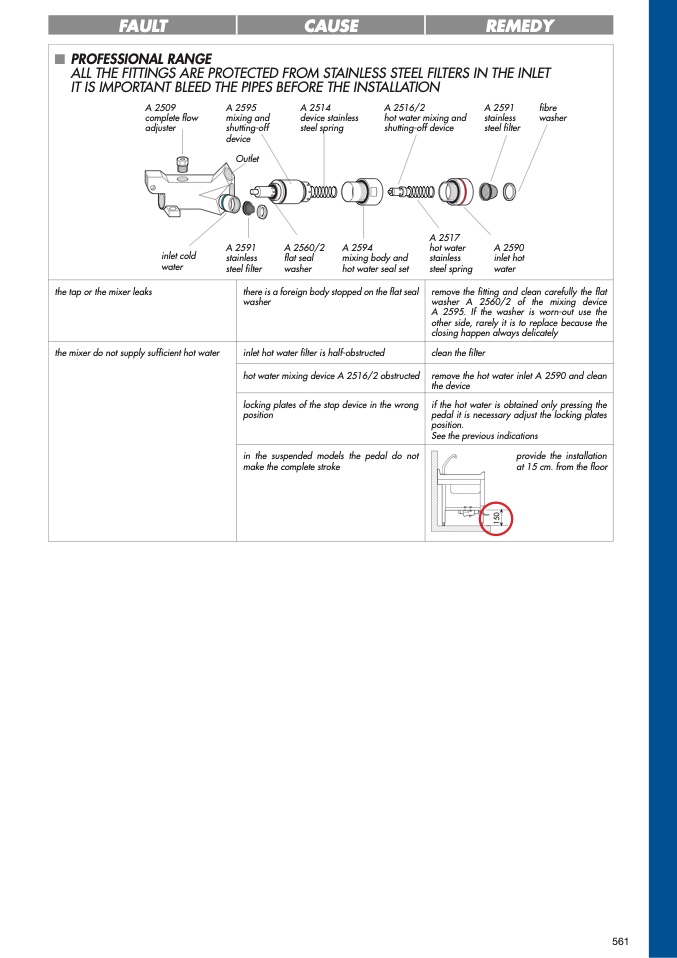

FAULT

CAUSE

REMEDY

� PROFESSIONAL RANGE

ALL THE FITTINGS ARE PROTECTED FROM STAINLESS STEEL FILTERS IN THE INLET

IT IS IMPORTANT BLEED THE PIPES BEFORE THE INSTALLATION

A 2509

complete flow

adjuster

inlet cold

water

A 2595

mixing and

shutting-off

device

Outlet

A 2591

stainless

steel filter

A 2514

device stainless

steel spring

A 2516/2

hot water mixing and

shutting-off device

A 2591

stainless

steel filter

A 2590

inlet hot

water

fibre

washer

A 2560/2

flat seal

washer

A 2594

mixing body and

hot water seal set

A 2517

hot water

stainless

steel spring

the tap or the mixer leaks

there is a foreign body stopped on the flat seal

washer

remove the fitting and clean carefully the flat

washer A 2560/2 of the mixing device

A 2595. If the washer is worn-out use the

other side, rarely it is to replace because the

closing happen always delicately

the mixer do not supply sufficient hot water

inlet hot water filter is half-obstructed

clean the filter

hot water mixing device A 2516/2 obstructed

remove the hot water inlet A 2590 and clean

the device

locking plates of the stop device in the wrong

position

if the hot water is obtained only pressing the

pedal it is necessary adjust the locking plates

position.

See the previous indications

in the suspended models the pedal do not

make the complete stroke

provide the installation

at 15 cm. from the floor
