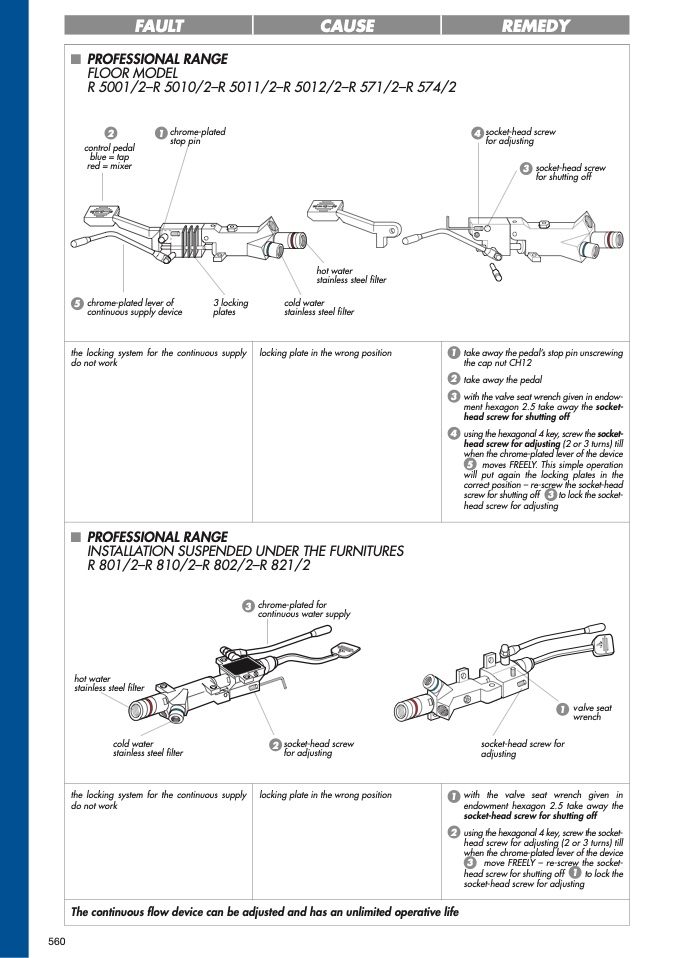

FAULT
CAUSE
REMEDY
� PROFESSIONAL RANGE
FLOOR MODEL
R 5001/2–R 5010/2–R 5011/2–R 5012/2–R 571/2–R 574/2
2
control pedal
blue = tap
red = mixer
1 chrome-plated
stop pin
4 socket-head screw
for adjusting
3 socket-head screw
for shutting off
5
chrome-plated lever of
continuous supply device
3 locking
plates
hot water
stainless steel filter
cold water
stainless steel filter
the locking system for the continuous supply
do not work
locking plate in the wrong position
1 take away the pedal’s stop pin unscrewing
the cap nut CH12
2 take away the pedal
3 with the valve seat wrench given in endow-
ment hexagon 2.5 take away the socket-
head screw for shutting off
4 using the hexagonal 4 key, screw the socket-
head screw for adjusting (2 or 3 turns) till
when the chrome-plated lever of the device
5 moves FREELY. This simple operation
will put again the locking plates in the
correct position – re-screw the socket-head
screw for shutting off 3 to lock the socket-
head screw for adjusting
� PROFESSIONAL RANGE
INSTALLATION SUSPENDED UNDER THE FURNITURES
R 801/2–R 810/2–R 802/2–R 821/2
hot water
stainless steel filter
cold water
stainless steel filter
1 valve seat
wrench
socket-head screw for
adjusting
3
chrome-plated for
continuous water supply
2 socket-head screw
for adjusting
the locking system for the continuous supply
do not work
locking plate in the wrong position
1 with the valve seat wrench given in
endowment hexagon 2.5 take away the
socket-head screw for shutting off
2 using the hexagonal 4 key, screw the socket-
head screw for adjusting (2 or 3 turns) till
when the chrome-plated lever of the device
3 move FREELY – re-screw the socket-
head screw for shutting off 1 to lock the
socket-head screw for adjusting
The continuous flow device can be adjusted and has an unlimited operative life
560
