FAULT

CAUSE

REMEDY

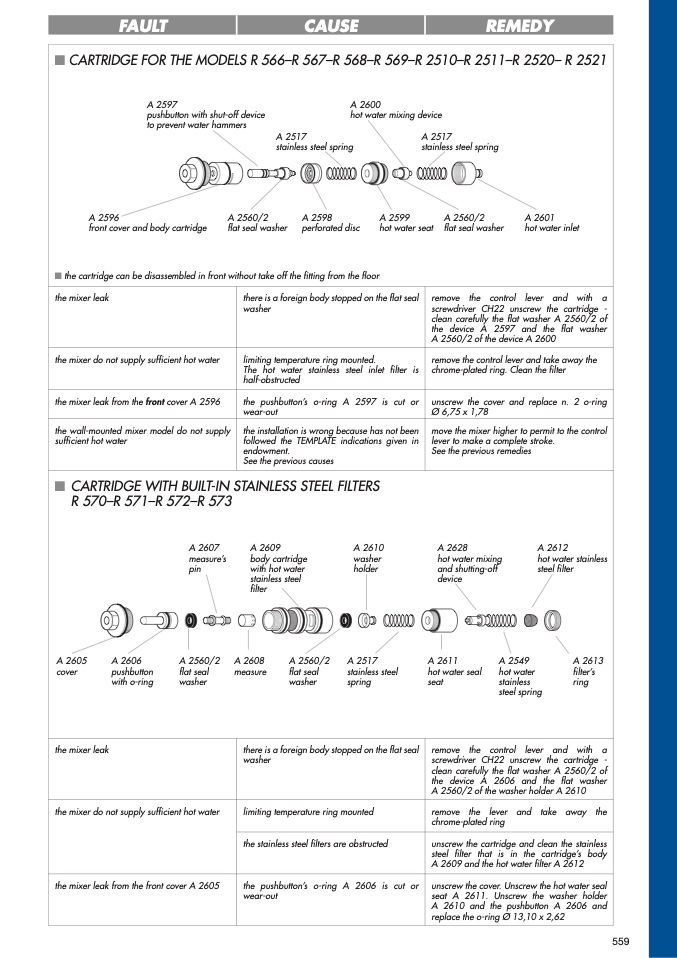

� CARTRIDGE FOR THE MODELS R 566–R 567–R 568–R 569–R 2510–R 2511–R 2520– R 2521

A 2597

pushbutton with shut-off device

to prevent water hammers

A 2596

A 2560/2

front cover and body cartridge

flat seal washer

perforated disc

� the cartridge can be disassembled in front without take off the fitting from the floor

A 2600

hot water mixing device

A 2517

stainless steel spring

A 2517

stainless steel spring

A 2599

A 2560/2

hot water seat flat seal washer

A 2598

A 2601

hot water inlet

the mixer leak

there is a foreign body stopped on the flat seal

washer

remove the control lever and with a

screwdriver CH22 unscrew the cartridge -

clean carefully the flat washer A 2560/2 of

the device A 2597 and the flat washer

A 2560/2 of the device A 2600

the mixer do not supply sufficient hot water

limiting temperature ring mounted.

The hot water stainless steel inlet filter is

half-obstructed

remove the control lever and take away the

chrome-plated ring. Clean the filter

the mixer leak from the front cover A 2596

the pushbutton’s o-ring A 2597 is cut or

wear-out

unscrew the cover and replace n. 2 o-ring

Ø 6,75 x 1,78

the wall-mounted mixer model do not supply

sufficient hot water

the installation is wrong because has not been

followed the TEMPLATE indications given in

endowment.

See the previous causes

move the mixer higher to permit to the control

lever to make a complete stroke.

See the previous remedies

� CARTRIDGE WITH BUILT-IN STAINLESS STEEL FILTERS

R 570–R 571–R 572–R 573

A 2607

measure’s

pin

A 2560/2

flat seal

washer

A 2609

body cartridge

with hot water

stainless steel

filter

A 2610

washer

holder

A 2517

stainless steel

spring

A 2628

hot water mixing

and shutting-off

device

A 2612

hot water stainless

steel filter

A 2605

cover

A 2606

pushbutton

with o-ring

A 2608

measure

A 2560/2

flat seal

washer

A 2611

hot water seal

seat

A 2549

hot water

stainless

steel spring

A 2613

filter’s

ring

the mixer leak

there is a foreign body stopped on the flat seal

washer

remove the control lever and with a

screwdriver CH22 unscrew the cartridge -

clean carefully the flat washer A 2560/2 of

the device A 2606 and the flat washer

A 2560/2 of the washer holder A 2610

the mixer do not supply sufficient hot water

limiting temperature ring mounted

remove the lever and take away the

chrome-plated ring

the stainless steel filters are obstructed

unscrew the cartridge and clean the stainless

steel filter that is in the cartridge’s body

A 2609 and the hot water filter A 2612

the mixer leak from the front cover A 2605

the pushbutton’s o-ring A 2606 is cut or

wear-out

unscrew the cover. Unscrew the hot water seal

seat A 2611. Unscrew the washer holder

A 2610 and the pushbutton A 2606 and

replace the o-ring Ø 13,10 x 2,62

559
