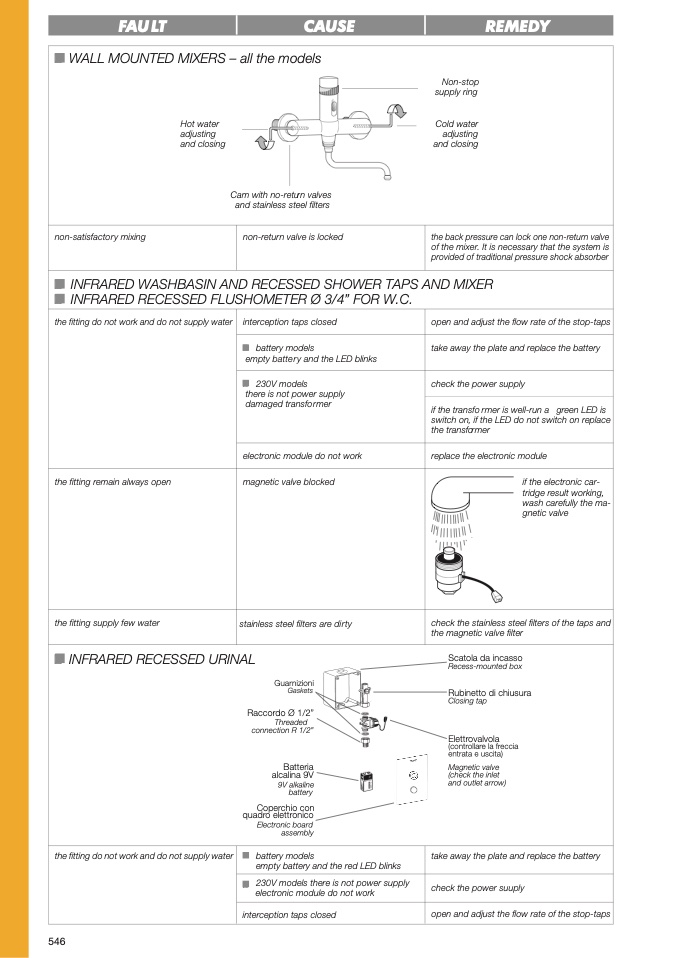

FAU LT

CAUSE

REMEDY

WALL MOUNTED MIXERS – all the models

Hot water

adjusting

and closing

Non-stop

supply ring

Cold water

adjusting

and closing

Cam with no-return valves

and stainless steel filters

non-satisfactory mixing

non-return valve is locked

the back pressure can lock one non-return valve

of the mixer. It is necessary that the system is

provided of traditional pressure shock absorber

INFRARED WASHBASIN AND RECESSED SHOWER TAPS AND MIXER

INFRARED RECESSED FLUSHOMETER Ø 3/4” FOR W.C.

the fitting do not work and do not supply water

interception taps closed

open and adjust the flow rate of the stop-taps

battery models

empty battery and the LED blinks

take away the plate and replace the battery

230V models

there is not power supply

damaged transformer

check the power supply

if the transfo rmer is well-run a green LED is

switch on, if the LED do not switch on replace

the transformer

electronic module do not work

replace the electronic module

the fitting remain always open

magnetic valve blocked

if the electronic car-

tridge result working,

wash carefully the ma-

gnetic valve

the fitting supply few water

stainless steel filters are dirty

check the stainless steel filters of the taps and

the magnetic valve filter

INFRARED RECESSED URINAL

Raccordo Ø 1/2”

Threaded

connection R 1/2”

Batteria

alcalina 9V

9V alkaline

battery

Coperchio con

quadro elettronico

Electronic board

assembly

Scatola da incasso

Recess-mounted box

Rubinetto di chiusura

Closing tap

Elettrovalvola

(controllare la freccia

entrata e uscita)

Magnetic valve

(check the inlet

and outlet arrow)

Guarnizioni

Gaskets

the fitting do not work and do not supply water

battery models

empty battery and the red LED blinks

take away the plate and replace the battery

230V models there is not power supply

electronic module do not work

check the power suuply

interception taps closed

open and adjust the flow rate of the stop-taps

546
