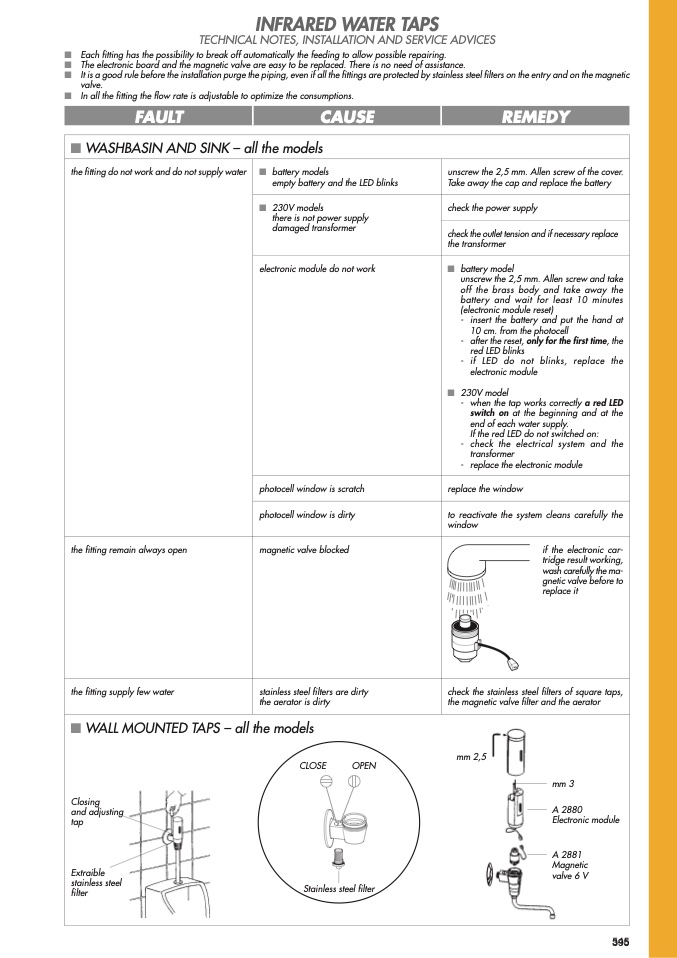

INFRARED WATER TAPS

TECHNICAL NOTES, INSTALLATION AND SERVICE ADVICES

� Each fitting has the possibility to break off automatically the feeding to allow possible repairing.

� The electronic board and the magnetic valve are easy to be replaced. There is no need of assistance.

� It is a good rule before the installation purge the piping, even if all the fittings are protected by stainless steel filters on the entry and on the magnetic

valve.

� In all the fitting the flow rate is adjustable to optimize the consumptions.

FAULT

CAUSE

REMEDY

� WASHBASIN AND SINK – all the models

the fitting do not work and do not supply water

� batterymodels

empty battery and the LED blinks

unscrew the 2,5 mm. Allen screw of the cover.

Take away the cap and replace the battery

� 230Vmodels

there is not power supply

damaged transformer

check the power supply

check the outlet tension and if necessary replace

the transformer

electronic module do not work

� batterymodel

unscrew the 2,5 mm. Allen screw and take

off the brass body and take away the

battery and wait for least 10 minutes

(electronic module reset)

- insert the battery and put the hand at

10 cm. from the photocell

- after the reset, only for the first time, the

red LED blinks

- if LED do not blinks, replace the

electronic module

� 230Vmodel

- when the tap works correctly a red LED

switch on at the beginning and at the

end of each water supply.

If the red LED do not switched on:

- check the electrical system and the

transformer

- replace the electronic module

photocell window is scratch

replace the window

photocell window is dirty

to reactivate the system cleans carefully the

window

the fitting remain always open

magnetic valve blocked

if the electronic car-

tridge result working,

wash carefully the ma-

gnetic valve before to

replace it

the fitting supply few water

stainless steel filters are dirty

the aerator is dirty

check the stainless steel filters of square taps,

the magnetic valve filter and the aerator

� WALL MOUNTED TAPS – all the models

CLOSE

OPEN

mm 2,5

Closing

and adjusting

tap

Extraible

stainless steel

filter

mm 3

A 2880

Electronic module

A 2881

Magnetic

valve 6 V

Stainless steel filter

35945
