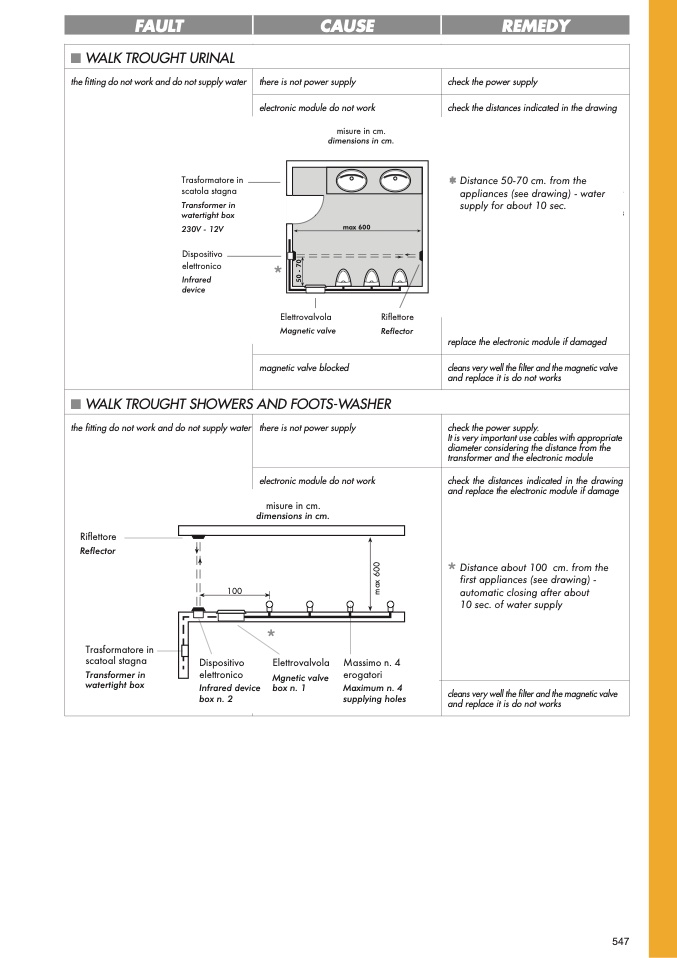

FAULT

CAUSE

REMEDY

� WALK TROUGHT URINAL

the fitting do not work and do not supply water

there is not power supply

electronic module do not work

check the power supply

check the distances indicated in the drawing

misure in cm.

dimensions in cm.

dimensions in cm.

200 - 600

max 600

Trasformatore in

scatola stagna

Transformer in

watertight box

230V - 12V

Dispositivo

elettronico

Infrared

*

device

*

Ddiisttaanncece7050cm-7.0 cm. from the

the hygiene flushing is activated when the

appliances (see drawing) - water

user enter in the active range.

supply for about 10 sec.

Water flow starts as soon as the user departs

Elettrovalvola

Magnetic valve

Riflettore

Reflector

magnetic valve blocked

*

distance 50 cm.

water flow starts as soon as the user departs

replace the electronic module if damaged

cleans very well the filter and the magnetic valve

and replace it is do not works

� WALK TROUGHT SHOWERS AND FOOTS-WASHER

the fitting do not work and do not supply water

there is not power supply

electronic module do not work

check the power supply.

It is very important use cables with appropriate

diameter considering the distance from the

transformer and the electronic module

check the distances indicated in the drawing

and replace the electronic module if damage

reflector

Riflettore

Reflector

transformer

Trasformatore in

scatoal stagna

misudreiminencsmio.ns in cm.

dimensions in cm.

magnetic valve

Elettrovalvola

Mgnetic valve

box n. 1

maximum n. 4

supplying holes

Distance about 100 cm. from the

first appliances (see drawing) -

automatic closing after about

10 sec. of water supply

100

100

infrared

device

Transformer in

elettronico

Infrared device

erogatori

Maximum n. 4

watertight box

magnetic valve blocked

230 V - 50 Hz

Dispositivo

Massimo n. 4

box n. 2

supplying holes

cleans very well the filter and the magnetic valve

and replace it is do not works
