BORDO RETTILINEO 30

STRAIGHT EDGE 30

RECHTWINKLIGE RANDPLATTE 30

BORD RECTILIGNE 30

Formati Sizes Formate Formats

300x600 / 12"x24"

300x800 / 12"x311/2"

BORDO GRIP

GRIP EDGE

GRIP-RAND

BORD ANTID

ÉRAPANT

Formati Sizes Formate Formats

300x600 / 12"x24"

300x800 / 12"x311/2"

ANGOLO ARROTONDATO INTERNO 30

INTERNAL ROUNDED CORNER 30

INNENECKE KURVIG 30

ANGLE ARRONDI INT

ÉRIEUR 30

Formati Sizes Formate Formats

600x600 / 24"x24"

ANGOLO CURVO 15

CURVED CORNER 15

ECKE KURVIG 15

ANGLE CURVILIGNE 15

Formati Sizes Formate Formats

600x600 / 24"x24"

NOTA: Tutti i formati sono nominali.

SX

DX

ANGOLO RETTILINEO 30

STRAIGHT CORNER 30

RECHTWINKLIGE ECKPLATTE 30

ANGLE RECTILIGNE 30

Formati Sizes Formate Formats

300x600 / 12"x24"

300x800 / 12"x311/2"

SX

DX

ANGOLO GRIP

CORNER GRIP

GRIP-ECKE

ANGLE ANTIDÉRAPANT

Formati Sizes Formate Formats

300x600 / 12"x24"

300x800 / 12"x311/2"

ANGOLO ARROTONDATO ESTERNO 30

EXTERNAL ROUNDED CORNER 30

KANTEN KURVIG 30

ANGLE ARRONDI EXT

ÉRIEUR 30

Formati Sizes Formate Formats

300x300 / 12"x12"

ANGOLO CURVO 30

CURVED CORNER 30

ECKE KURVIG 30

ANGLE CURVILIGNE 30

Formati Sizes Formate Formats

600x600 / 24"x24"

NOTE: All sizes are nominal.

BORDO RETTILINEO 15

STRAIGHT EDGE 15

RECHTWINKLIGE RANDPLATTE 15

BORD RECTILIGNE 15

Formati Sizes Formate Formats

150x600 / 6"x24"

150x800 / 6"x311/2"

BORDO SVASATO

SHAPED EDGE

AUSGESTELLTER RAND

BORD ÉVAS

É

Formati Sizes Formate Formats

300x600 / 12"x24"

300x800 / 12"x311/2"

ANGOLO ARROTONDATO ESTERNO 15

EXTERNAL ROUNDED CORNER 15

KANTEN KURVIG 15

ANGLE ARRONDI EXT

ÉRIEUR 15

Formati Sizes Formate Formats

150x150 / 6"x6"

SX

DX

ANGOLO RETTILINEO 15

STRAIGHT CORNER 15

RECHTWINKLIGE ECKPLATTE 15

ANGLE RECTILIGNE 15

Formati Sizes Formate Formats

150x600 / 6"x24"

150x800 / 6"x311/2"

SX

DX

ANGOLO SVASATO

SHAPED CORNER

AUSGESTELLTER ECKE

ANGLE

ÉVASÉ

Formati Sizes Formate Formats

300x600 / 12"x24"

300x800 / 12"x311/2"

ANGOLO ARROTONDATO INTERNO 15

INTERNAL ROUNDED CORNER 15

INNENECKE KURVIG 15

ANGLE ARRONDI INT

ÉRIEUR 15

Formati Sizes Formate Formats

300x300 / 12"x12"

GRIGLIA 15

GRID 15

GITTER 15

GRILLE 15

Formati Sizes Formate Formats

150x600 / 6"x24"

GRIGLIA 30

GRID 30

GITTER 30

GRILLE 30

Formati Sizes Formate Formats

300x600 / 12"x24"

SX

DX

ANGOLO GRIGLIA 15

GRID CORNER TILE 15

GITTERECKE 15

ANGLE GRILLE 15

Formati Sizes Formate Formats

150x600 / 6"x24"

SX

DX

ANGOLO GRIGLIA 30

GRID CORNER TILE 30

GITTERECKE 30

ANGLE GRILLE 30

Formati Sizes Formate Formats

300x600 / 12"x24"

GRIGLIA INVISIBILE 15

INVISIBLE GRATE 15

UNSICHTBARE GITTER 15

GRILLE INVISIBLE 15

Formati Sizes Formate Formats

150x600 / 6"x24"

GRIGLIA INVISIBILE 30

INVISIBLE GRATE 30

UNSICHTBARE GITTER 30

GRILLE INVISIBLE 30

Formati Sizes Formate Formats

300x600 / 12"x24"

SX

DX

ANGOLO GRIGLIA INV. 15

I. GRATE CORNER TILE 15

UNSICHTBARE GITTERECKE 15

ANGLE GRILLE INVISIBLE 15

Formati Sizes Formate Formats

150x600 / 6"x24"

SX

DX

ANGOLO GRIGLIA INV. 30

I. GRATE CORNER TILE 30

UNSICHTBARE GITTERECKE 30

ANGLE GRILLE INVISIBLE 30

Formati Sizes Formate Formats

300x600 / 12"x24"

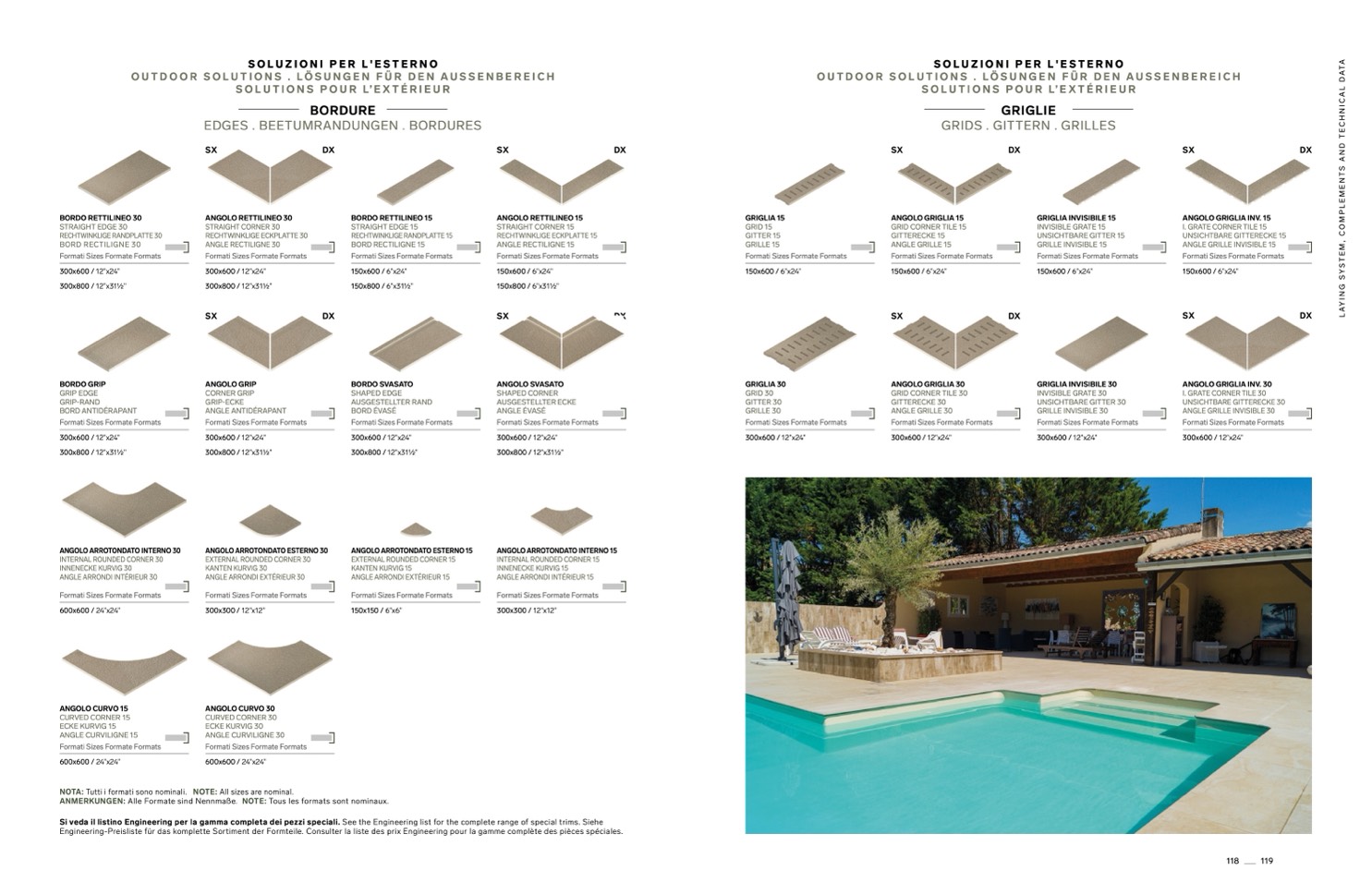

SOLUZIONI PER L'ESTERNO

OUTDOOR SOLUTIONS . L

ÖSUNGEN FÜR DEN AUSSENBEREICH

SOLUTIONS POUR L’EXT

ÉRIEUR

SOLUZIONI PER L'ESTERNO

OUTDOOR SOLUTIONS . LÖSUNGEN FÜR DEN AUSSENBEREICH

SOLUTIONS POUR L’EXTÉRIEUR

GRIGLIE

GRIDS . GITTERN . GRILLES

BORDURE

EDGES . BEETUMRANDUNGEN . BORDURES

ANMERKUNGEN: Alle Formate sind Nennmaße. NOTE: Tous les formats sont nominaux.

Si veda il listino Engineering per la gamma completa dei pezzi speciali. See the Engineering list for the complete range of special trims. Siehe

Engineering-Preisliste f

ür das komplette Sortiment der Formteile. Consulter la liste des prix Engineering pour la gamme compl

ète des pièces spéciales.
