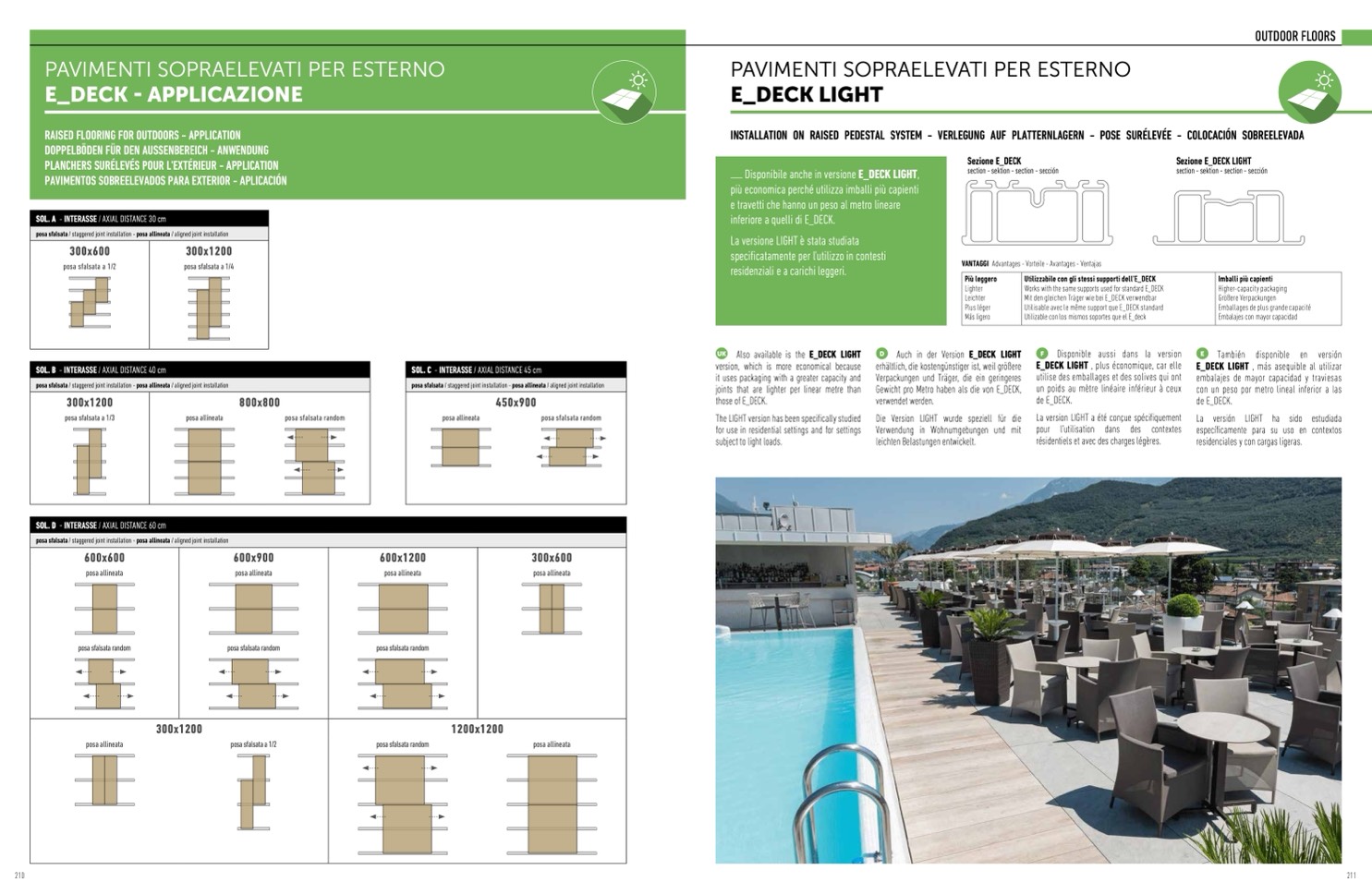

OUTDOOR FLOORS

PAVIMENTI SOPRAELEVATI PER ESTERNO

E_DECK - APPLICAZIONE

RAISED FLOORING FOR OUTDOORS - APPLICATION

DOPPELB

ÖDEN FÜR DEN AUSSENBEREICH - ANWENDUNG

PLANCHERS SUR

ÉLEVÉS POUR L'EXTÉRIEUR - APPLICATION

PAVIMENTOS SOBREELEVADOS PARA EXTERIOR - APLICACI

ÓN

PAVIMENTI SOPRAELEVATI PER ESTERNO

E_DECK LIGHT

INSTALLATION ON RAISED PEDESTAL SYSTEM - VERLEGUNG AUF PLATTERNLAGERN - POSE SUR

ÉLEVÉE - COLOCACIÓN SOBREELEVADA

Sezione E_DECK

Sezione E_DECK LIGHT

section - sektion - section - secci

ón

section - sektion - section - sección

Disponibile anche in versione E_DECK LIGHT,

pi

ù economica perché utilizza imballi più capienti

e travetti che hanno un peso al metro lineare

inferiore a quelli di E_DECK.

La versione LIGHT

è stata studiata

specificatamente per l'utilizzo in contesti

residenziali e a carichi leggeri.

SOL. A - INTERASSE / AXIAL DISTANCE 30 cm

posa sfalsata / staggered joint installation - posa allineata / aligned joint installation

300x600

300x1200

posa sfalsata a 1/2

posa sfalsata a 1/4

UK

VANTAGGI Advantages - Vorteile - Avantages - Ventajas

Più leggero

Lighter

Leichter

Plus l

éger

Más ligero

Utilizzabile con gli stessi supporti dell’E_DECK

Works with the same supports used for standard E_DECK

Mit den gleichen Träger wie bei E_DECK verwendbar

Utilisable avec le même support que E_DECK standard

Utilizable con los mismos soportes que el E_deck

Imballi più capienti

Higher-capacity packaging

Größere Verpackungen

Emballages de plus grande capacité

Embalajes con mayor capacidad

Also available is the E_DECK LIGHT

version, which is more economical because

it uses packaging with a greater capacity and

joints that are lighter per linear metre than

those of E_DECK.

The LIGHT version has been specifically studied

for use in residential settings and for settings

subject to light loads.

D

Auch in der Version E_DECK LIGHT

erh

ältlich, die kosteng

ünstiger ist, weil gr

ößere

Verpackungen und Träger, die ein geringeres

Gewicht pro Metro haben als die von E_DECK,

verwendet werden.

Die Version LIGHT wurde speziell für die

Verwendung in Wohnumgebungen und mit

leichten Belastungen entwickelt.

F

Disponible aussi dans la version

E_DECK LIGHT , plus économique, car elle

utilise des emballages et des solives qui ont

un poids au mètre linéaire inférieur

à ceux

de E_DECK.

La version LIGHT a été conçue spécifiquement

pour l’utilisation dans des contextes

résidentiels et avec des charges l

égères.

E

Tambi

én disponible en versión

E_DECK LIGHT , m

ás asequible al utilizar

embalajes de mayor capacidad y traviesas

con un peso por metro lineal inferior a las

de E_DECK.

La versi

ón LIGHT ha sido estudiada

espec

íficamente para su uso en contextos

residenciales y con cargas ligeras.

SOL. B - INTERASSE / AXIAL DISTANCE 40 cm

posa sfalsata / staggered joint installation - posa allineata / aligned joint installation

300x1200

800x800

posa sfalsata a 1/3

posa allineata

posa sfalsata random

SOL. C - INTERASSE / AXIAL DISTANCE 45 cm

posa sfalsata / staggered joint installation - posa allineata / aligned joint installation

450x900

posa allineata

posa sfalsata random

SOL. D - INTERASSE / AXIAL DISTANCE 60 cm

posa sfalsata / staggered joint installation - posa allineata / aligned joint installation

600x900

posa allineata

posa sfalsata random

600x1200

posa allineata

posa sfalsata random

600x600

posa allineata

posa sfalsata random

posa allineata

300x600

posa allineata

300x1200

1200x1200

posa sfalsata a 1/2

posa sfalsata random

posa allineata
