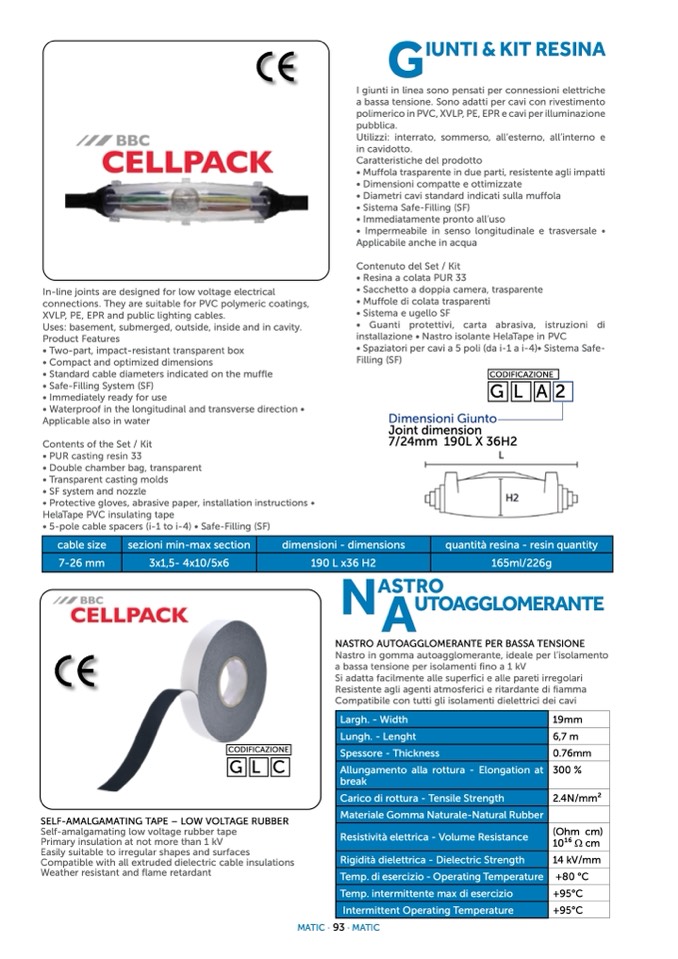

In-line joints are designed for low voltage electrical

connections. They are suitable for PVC polymeric coatings,

XVLP, PE, EPR and public lighting cables.

Uses: basement, submerged, outside, inside and in cavity.

Product Features

• Two-part, impact-resistant transparent box

• Compact and optimized dimensions

• Standard cable diameters indicated on the muffle

• Safe-Filling System (SF)

• Immediately ready for use

• Waterproof in the longitudinal and transverse direction •

Applicable also in water

G

IUNTI & KIT RESINA

I giunti in linea sono pensati per connessioni elettriche

a bassa tensione. Sono adatti per cavi con rivestimento

polimerico in PVC, XVLP, PE, EPR e cavi per illuminazione

pubblica.

Utilizzi: interrato, sommerso, all‘esterno, all‘interno e

in cavidotto.

Caratteristiche del prodotto

• Muffola trasparente in due parti, resistente agli impatti

• Dimensioni compatte e ottimizzate

• Diametri cavi standard indicati sulla muffola

• Sistema Safe-Filling (SF)

• Immediatamente pronto all‘uso

• Impermeabile in senso longitudinale e trasversale •

Applicabile anche in acqua

Contenuto del Set / Kit

• Resina a colata PUR 33

• Sacchetto a doppia camera, trasparente

• Muffole di colata trasparenti

• Sistema e ugello SF

• Guanti protettivi, carta abrasiva, istruzioni di

installazione • Nastro isolante HelaTape in PVC

• Spaziatori per cavi a 5 poli (da i-1 a i-4)• Sistema Safe-

Filling (SF)

GLA2

Dimensioni Giunto

Joint dimension

7/24mm 190L X 36H2

N

ASTRO

UTOAGGLOMERANTE

NASTRO AUTOAGGLOMERANTE PER BASSA TENSIONE

Nastro in gomma autoagglomerante, ideale per l’isolamento

a bassa tensione per isolamenti fino a 1 kV

Si adatta facilmente alle superfici e alle pareti irregolari

Resistente agli agenti atmosferici e ritardante di fiamma

Compatibile con tutti gli isolamenti dielettrici dei cavi

Contents of the Set / Kit

• PUR casting resin 33

• Double chamber bag, transparent

• Transparent casting molds

• SF system and nozzle

• Protective gloves, abrasive paper, installation instructions •

HelaTape PVC insulating tape

• 5-pole cable spacers (i-1 to i-4) • Safe-Filling (SF)

CODIFICAZIONE

GLC

SELF-AMALGAMATING TAPE – LOW VOLTAGE RUBBER

Self-amalgamating low voltage rubber tape

Primary insulation at not more than 1 kV

Easily suitable to irregular shapes and surfaces

Compatible with all extruded dielectric cable insulations

Weather resistant and flame retardant

cable size

sezioni min-max section

dimensioni - dimensions

quantità resina - resin quantity

7-26 mm

3x1,5- 4x10/5x6

190 L x36 H2

165ml/226g

Largh. - Width

19mm

Lungh. - Lenght

6,7 m

Spessore - Thickness

0.76mm

Allungamento alla rottura - Elongation at

break

300 %

Carico di rottura - Tensile Strength

2.4N/mm2

Materiale Gomma Naturale-Natural Rubber

Resistività elettrica - Volume Resistance

(Ohm cm)

1016 Ω cm

Rigidit

à dielettrica - Dielectric Strength

14 kV/mm

Temp. di esercizio - Operating Temperature

+80 °C

Temp. intermittente max di esercizio

+95°C

Intermittent Operating Temperature

+95°C
