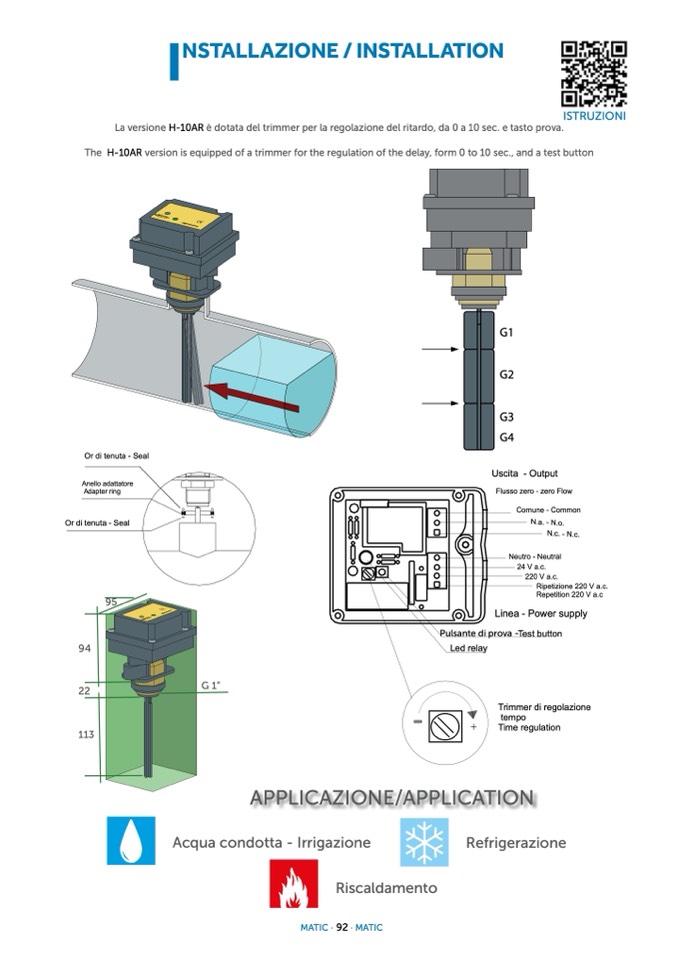

I

NSTALLAZIONE / INSTALLATION

ISTRUZIONI

La versione H-10AR è dotata del trimmer per la regolazione del ritardo, da 0 a 10 sec. e tasto prova.

The H-10AR version is equipped of a trimmer for the regulation of the delay, form 0 to 10 sec., and a test button

Or di tenuta - Seal

Anello adattatore

Adapter ring

Or di tenuta - Seal

95

G1

G2

G3

G4

Uscita - Output

Flusso zero - zero Flow

Comune - Common

N.a

. -

N.o

.

N.c

. -

N.c

.

Neutro - Neutral

24 V a.c.

220 V a.c.

Ripetizione 220 V a.c.

Repetition 220 V a.c

Linea - Power supply

Pulsante di prova -Test button

Led relay

Trimmer di regolazione

tempo

Time regulation

APPLICAZIONE/APPLICATION

94

22

113

G 1”

Acqua condotta - Irrigazione

Refrigerazione

Riscaldamento

MATIC · 92 · MATIC
