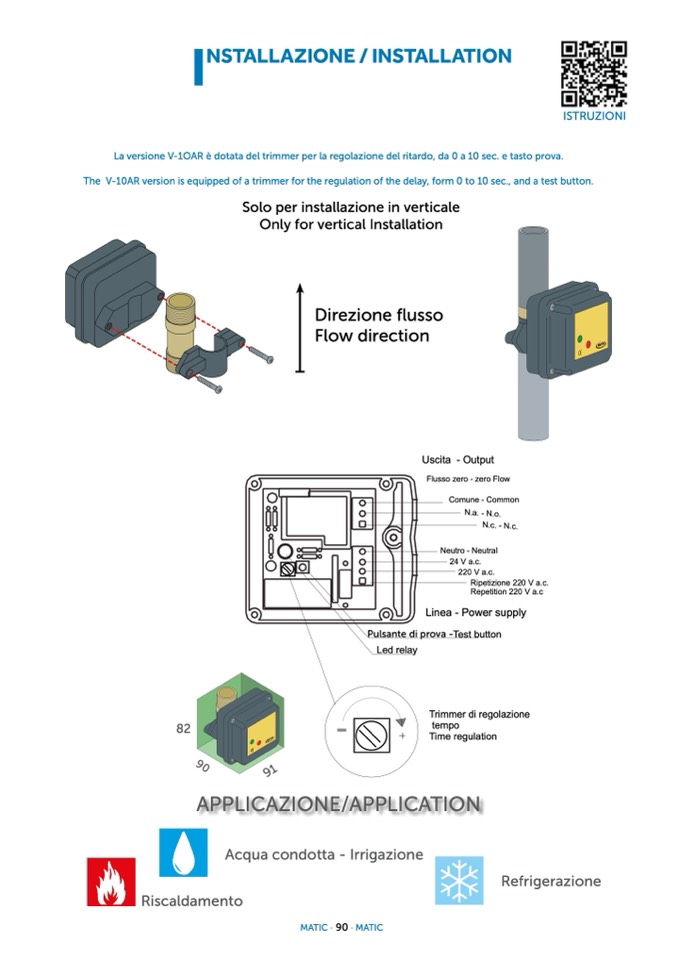

APPLICAZIONE/APPLICATION

I

NSTALLAZIONE / INSTALLATION

La versione V-1OAR è dotata del trimmer per la regolazione del ritardo, da 0 a 10 sec. e tasto prova.

The V-10AR version is equipped of a trimmer for the regulation of the delay, form 0 to 10 sec., and a test button.

Solo per installazione in verticale

Only for vertical Installation

Direzione flusso

Flow direction

Uscita - Output

Flusso zero - zero Flow

Comune - Common

N.a

. -

N.o

.

N.c

. -

N.c

.

Neutro - Neutral

24 V a.c.

220 V a.c.

Ripetizione 220 V a.c.

Repetition 220 V a.c

Linea - Power supply

Pulsante di prova -Test button

Led relay

82

Acqua condotta - Irrigazione

Riscaldamento

Trimmer di regolazione

tempo

Time regulation

Refrigerazione
