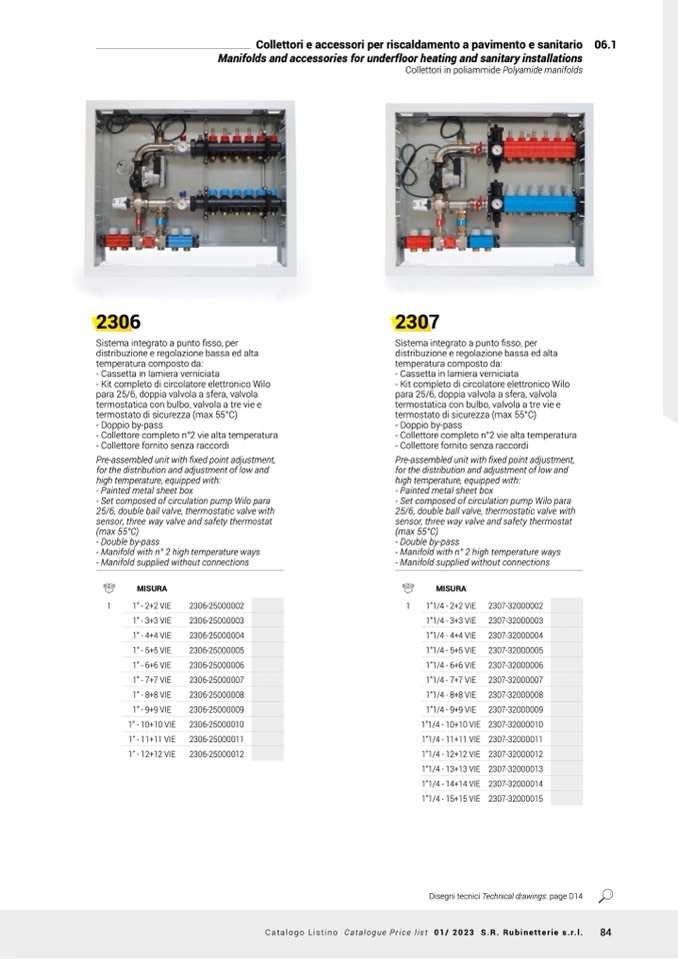

2306

Sistema integrato a punto fisso, per

distribuzione e regolazione bassa ed alta

temperatura composto da:

- Cassetta in lamiera verniciata

- Kit completo di circolatore elettronico Wilo

para 25/6, doppia valvola a sfera, valvola

termostatica con bulbo, valvola a tre vie e

termostato di sicurezza (max 55°C)

- Doppio by-pass

- Collettore completo n°2 vie alta temperatura

- Collettore fornito senza raccordi

Pre-assembled unit with fixed point adjustment,

for the distribution and adjustment of low and

high temperature, equipped with:

- Painted metal sheet box

- Set composed of circulation pump Wilo para

25/6, double ball valve, thermostatic valve with

sensor, three way valve and safety thermostat

(max 55°C)

- Double by-pass

- Manifold with n° 2 high temperature ways

- Manifold supplied without connections

Collettori e accessori per riscaldamento a pavimento e sanitario 06.1

Manifolds and accessories for underfloor heating and sanitary installations

Collettori in poliammide Polyamide manifolds

2307

Sistema integrato a punto fisso, per

distribuzione e regolazione bassa ed alta

temperatura composto da:

- Cassetta in lamiera verniciata

- Kit completo di circolatore elettronico Wilo

para 25/6, doppia valvola a sfera, valvola

termostatica con bulbo, valvola a tre vie e

termostato di sicurezza (max 55°C)

- Doppio by-pass

- Collettore completo n°2 vie alta temperatura

- Collettore fornito senza raccordi

Pre-assembled unit with fixed point adjustment,

for the distribution and adjustment of low and

high temperature, equipped with:

- Painted metal sheet box

- Set composed of circulation pump Wilo para

25/6, double ball valve, thermostatic valve with

sensor, three way valve and safety thermostat

(max 55°C)

- Double by-pass

- Manifold with n° 2 high temperature ways

- Manifold supplied without connections

MISURA

1

1” - 2+2 VIE

1” - 3+3 VIE

1” - 4+4 VIE

1” - 5+5 VIE

1” - 6+6 VIE

1” - 7+7 VIE

1” - 8+8 VIE

1” - 9+9 VIE

1” - 10+10 VIE

1” - 11+11 VIE

1” - 12+12 VIE

2306-25000002

2306-25000003

2306-25000004

2306-25000005

2306-25000006

2306-25000007

2306-25000008

2306-25000009

2306-25000010

2306-25000011

2306-25000012

1

MISURA

1”1/4 - 2+2 VIE

1”1/4 - 3+3 VIE

1”1/4 - 4+4 VIE

1”1/4 - 5+5 VIE

1”1/4 - 6+6 VIE

1”1/4 - 7+7 VIE

1”1/4 - 8+8 VIE

1”1/4 - 9+9 VIE

1”1/4 - 10+10 VIE

1”1/4 - 11+11 VIE

1”1/4 - 12+12 VIE

1”1/4 - 13+13 VIE

1”1/4 - 14+14 VIE

1”1/4 - 15+15 VIE

2307-32000002

2307-32000003

2307-32000004

2307-32000005

2307-32000006

2307-32000007

2307-32000008

2307-32000009

2307-32000010

2307-32000011

2307-32000012

2307-32000013

2307-32000014

2307-32000015

Disegni tecnici Technical drawings: page D14

Catalogo Listino Catalogue Price list 01/ 2023 S.R. Rubinetterie s.r.l.
