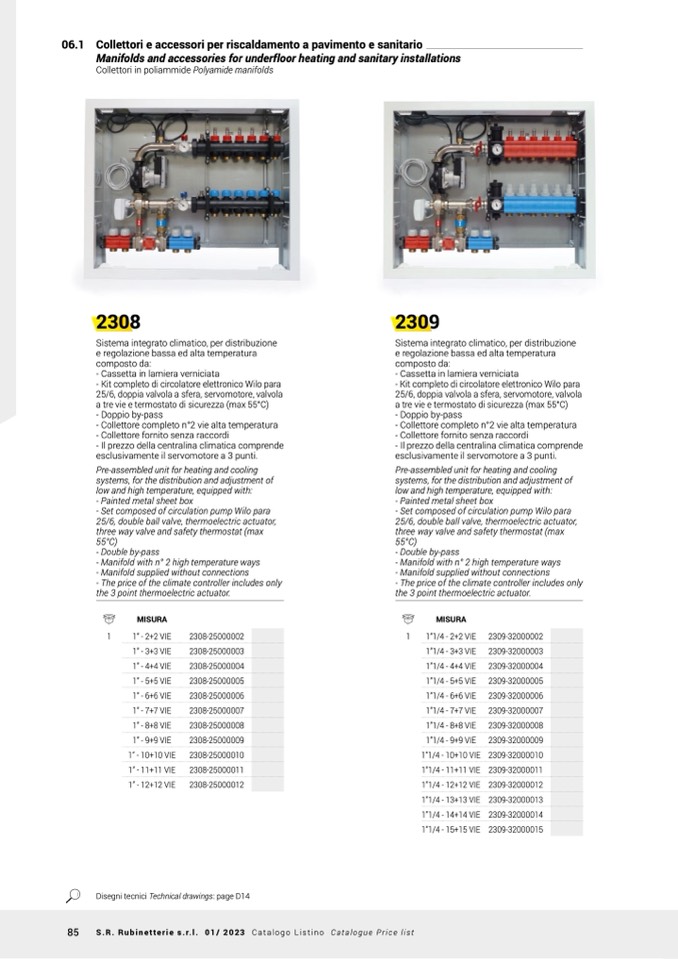

06.1 Collettori e accessori per riscaldamento a pavimento e sanitario

Manifolds and accessories for underfloor heating and sanitary installations

Collettori in poliammide Polyamide manifolds

2308

Sistema integrato climatico, per distribuzione

e regolazione bassa ed alta temperatura

composto da:

- Cassetta in lamiera verniciata

- Kit completo di circolatore elettronico Wilo para

25/6, doppia valvola a sfera, servomotore, valvola

a tre vie e termostato di sicurezza (max 55°C)

- Doppio by-pass

- Collettore completo n°2 vie alta temperatura

- Collettore fornito senza raccordi

- Il prezzo della centralina climatica comprende

esclusivamente il servomotore a 3 punti.

Pre-assembled unit for heating and cooling

systems, for the distribution and adjustment of

low and high temperature, equipped with:

- Painted metal sheet box

- Set composed of circulation pump Wilo para

25/6, double ball valve, thermoelectric actuator,

three way valve and safety thermostat (max

55°C)

- Double by-pass

- Manifold with n° 2 high temperature ways

- Manifold supplied without connections

- The price of the climate controller includes only

the 3 point thermoelectric actuator.

2309

Sistema integrato climatico, per distribuzione

e regolazione bassa ed alta temperatura

composto da:

- Cassetta in lamiera verniciata

- Kit completo di circolatore elettronico Wilo para

25/6, doppia valvola a sfera, servomotore, valvola

a tre vie e termostato di sicurezza (max 55°C)

- Doppio by-pass

- Collettore completo n°2 vie alta temperatura

- Collettore fornito senza raccordi

- Il prezzo della centralina climatica comprende

esclusivamente il servomotore a 3 punti.

Pre-assembled unit for heating and cooling

systems, for the distribution and adjustment of

low and high temperature, equipped with:

- Painted metal sheet box

- Set composed of circulation pump Wilo para

25/6, double ball valve, thermoelectric actuator,

three way valve and safety thermostat (max

55°C)

- Double by-pass

- Manifold with n° 2 high temperature ways

- Manifold supplied without connections

- The price of the climate controller includes only

the 3 point thermoelectric actuator.

MISURA

1

1” - 2+2 VIE

1” - 3+3 VIE

1” - 4+4 VIE

1” - 5+5 VIE

1” - 6+6 VIE

1” - 7+7 VIE

1” - 8+8 VIE

1” - 9+9 VIE

1” - 10+10 VIE

1” - 11+11 VIE

1” - 12+12 VIE

2308-25000002

2308-25000003

2308-25000004

2308-25000005

2308-25000006

2308-25000007

2308-25000008

2308-25000009

2308-25000010

2308-25000011

2308-25000012

1

MISURA

1”1/4 - 2+2 VIE

1”1/4 - 3+3 VIE

1”1/4 - 4+4 VIE

1”1/4 - 5+5 VIE

1”1/4 - 6+6 VIE

1”1/4 - 7+7 VIE

1”1/4 - 8+8 VIE

1”1/4 - 9+9 VIE

1”1/4 - 10+10 VIE

1”1/4 - 11+11 VIE

1”1/4 - 12+12 VIE

1”1/4 - 13+13 VIE

1”1/4 - 14+14 VIE

1”1/4 - 15+15 VIE

2309-32000002

2309-32000003

2309-32000004

2309-32000005

2309-32000006

2309-32000007

2309-32000008

2309-32000009

2309-32000010

2309-32000011

2309-32000012

2309-32000013

2309-32000014

2309-32000015

Disegni tecnici Technical drawings: page D14
