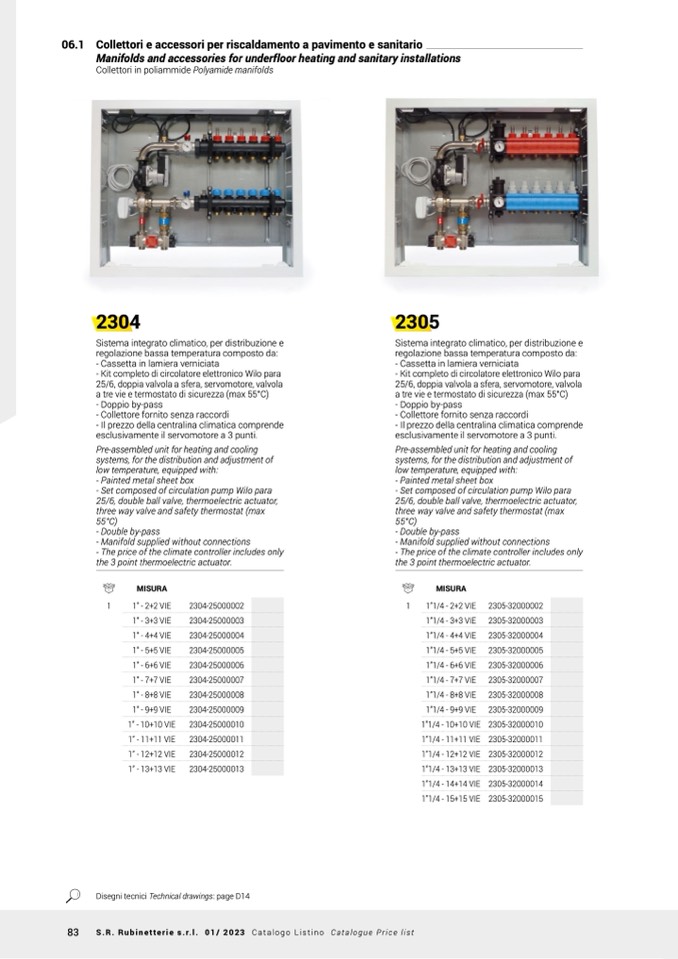

06.1 Collettori e accessori per riscaldamento a pavimento e sanitario

Manifolds and accessories for underfloor heating and sanitary installations

Collettori in poliammide Polyamide manifolds

2304

Sistema integrato climatico, per distribuzione e

regolazione bassa temperatura composto da:

- Cassetta in lamiera verniciata

- Kit completo di circolatore elettronico Wilo para

25/6, doppia valvola a sfera, servomotore, valvola

a tre vie e termostato di sicurezza (max 55°C)

- Doppio by-pass

- Collettore fornito senza raccordi

- Il prezzo della centralina climatica comprende

esclusivamente il servomotore a 3 punti.

Pre-assembled unit for heating and cooling

systems, for the distribution and adjustment of

low temperature, equipped with:

- Painted metal sheet box

- Set composed of circulation pump Wilo para

25/6, double ball valve, thermoelectric actuator,

three way valve and safety thermostat (max

55°C)

- Double by-pass

- Manifold supplied without connections

- The price of the climate controller includes only

the 3 point thermoelectric actuator.

2305

Sistema integrato climatico, per distribuzione e

regolazione bassa temperatura composto da:

- Cassetta in lamiera verniciata

- Kit completo di circolatore elettronico Wilo para

25/6, doppia valvola a sfera, servomotore, valvola

a tre vie e termostato di sicurezza (max 55°C)

- Doppio by-pass

- Collettore fornito senza raccordi

- Il prezzo della centralina climatica comprende

esclusivamente il servomotore a 3 punti.

Pre-assembled unit for heating and cooling

systems, for the distribution and adjustment of

low temperature, equipped with:

- Painted metal sheet box

- Set composed of circulation pump Wilo para

25/6, double ball valve, thermoelectric actuator,

three way valve and safety thermostat (max

55°C)

- Double by-pass

- Manifold supplied without connections

- The price of the climate controller includes only

the 3 point thermoelectric actuator.

MISURA

1

1” - 2+2 VIE

1” - 3+3 VIE

1” - 4+4 VIE

1” - 5+5 VIE

1” - 6+6 VIE

1” - 7+7 VIE

1” - 8+8 VIE

1” - 9+9 VIE

1” - 10+10 VIE

1” - 11+11 VIE

1” - 12+12 VIE

1” - 13+13 VIE

2304-25000002

2304-25000003

2304-25000004

2304-25000005

2304-25000006

2304-25000007

2304-25000008

2304-25000009

2304-25000010

2304-25000011

2304-25000012

2304-25000013

1

MISURA

1”1/4 - 2+2 VIE

1”1/4 - 3+3 VIE

1”1/4 - 4+4 VIE

1”1/4 - 5+5 VIE

1”1/4 - 6+6 VIE

1”1/4 - 7+7 VIE

1”1/4 - 8+8 VIE

1”1/4 - 9+9 VIE

1”1/4 - 10+10 VIE

1”1/4 - 11+11 VIE

1”1/4 - 12+12 VIE

1”1/4 - 13+13 VIE

1”1/4 - 14+14 VIE

1”1/4 - 15+15 VIE

2305-32000002

2305-32000003

2305-32000004

2305-32000005

2305-32000006

2305-32000007

2305-32000008

2305-32000009

2305-32000010

2305-32000011

2305-32000012

2305-32000013

2305-32000014

2305-32000015

Disegni tecnici Technical drawings: page D14
