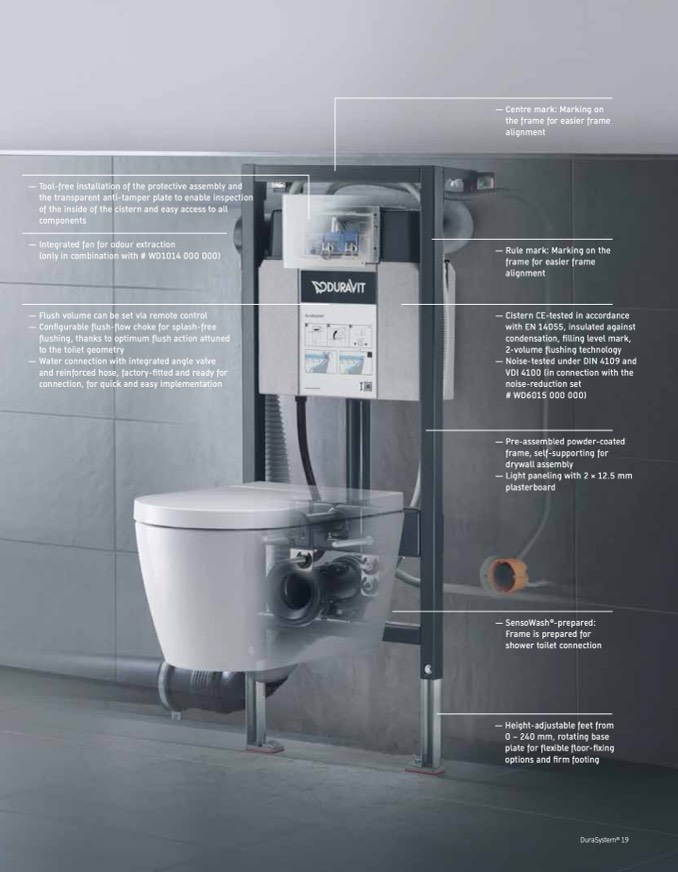

— Tool-free installation of the protective assembly and

the transparent anti-tamper plate to enable inspection

of the inside of the cistern and easy access to all

components

— Integrated fan for odour extraction

(only in combination with # WD1014 000 000)

— Flush volume can be set via remote control

— Configurable flush-flow choke for splash-free

flushing, thanks to optimum flush action attuned

to the toilet geometry

— Water connection with integrated angle valve

and reinforced hose, factory-fitted and ready for

connection, for quick and easy implementation

— Centre mark: Marking on

the frame for easier frame

alignment

— Rule mark: Marking on the

frame for easier frame

alignment

— Cistern CE-tested in accordance

with EN 14055, insulated against

condensation, filling level mark,

2-volume flushing technology

— Noise-tested under DIN 4109 and

VDI 4100 (in connection with the

noise-reduction set

# WD6015 000 000)

— Pre-assembled powder-coated

frame, self-supporting for

drywall assembly

— Light paneling with 2 × 12.5 mm

plasterboard

— SensoWash

®

-prepared:

Frame is prepared for

shower toilet connection

— Height-adjustable feet from

0 – 240 mm, rotating base

plate for flexible floor-fixing

options and firm footing

DuraSystem

®

19
