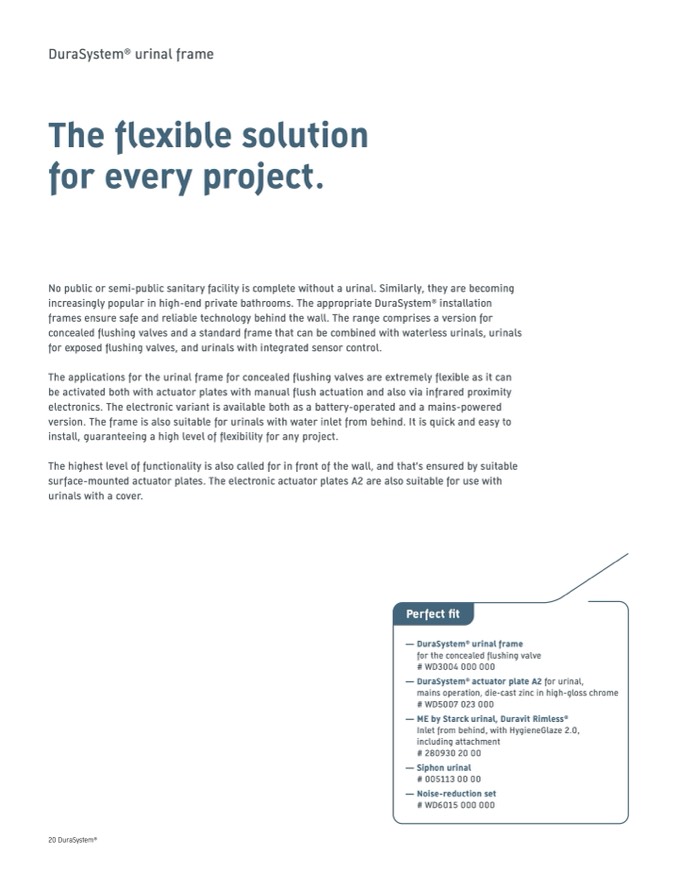

DuraSystem

®

urinal frame

The flexible solution

for every project.

No public or semi-public sanitary facility is complete without a urinal. Similarly, they are becoming

increasingly popular in high-end private bathrooms. The appropriate DuraSystem

®

installation

frames ensure safe and reliable technology behind the wall. The range comprises a version for

concealed flushing valves and a standard frame that can be combined with waterless urinals, urinals

for exposed flushing valves, and urinals with integrated sensor control.

The applications for the urinal frame for concealed flushing valves are extremely flexible as it can

be activated both with actuator plates with manual flush actuation and also via infrared proximity

electronics. The electronic variant is available both as a battery-operated and a mains-powered

version. The frame is also suitable for urinals with water inlet from behind. It is quick and easy to

install, guaranteeing a high level of flexibility for any project.

The highest level of functionality is also called for in front of the wall, and that’s ensured by suitable

surface-mounted actuator plates. The electronic actuator plates A2 are also suitable for use with

urinals with a cover.

Perfect fit

— DuraSystem

®

urinal frame

for the concealed flushing valve

# WD3004 000 000

— DuraSystem

®

actuator plate A2 for urinal,

mains operation, die-cast zinc in high-gloss chrome

# WD5007 023 000

— ME by Starck urinal, Duravit Rimless

®

Inlet from behind, with HygieneGlaze 2.0,

including attachment

# 280930 20 00

— Siphon urinal

# 005113 00 00

— Noise-reduction set

20 DuraSystem

®

# WD6015 000 000
