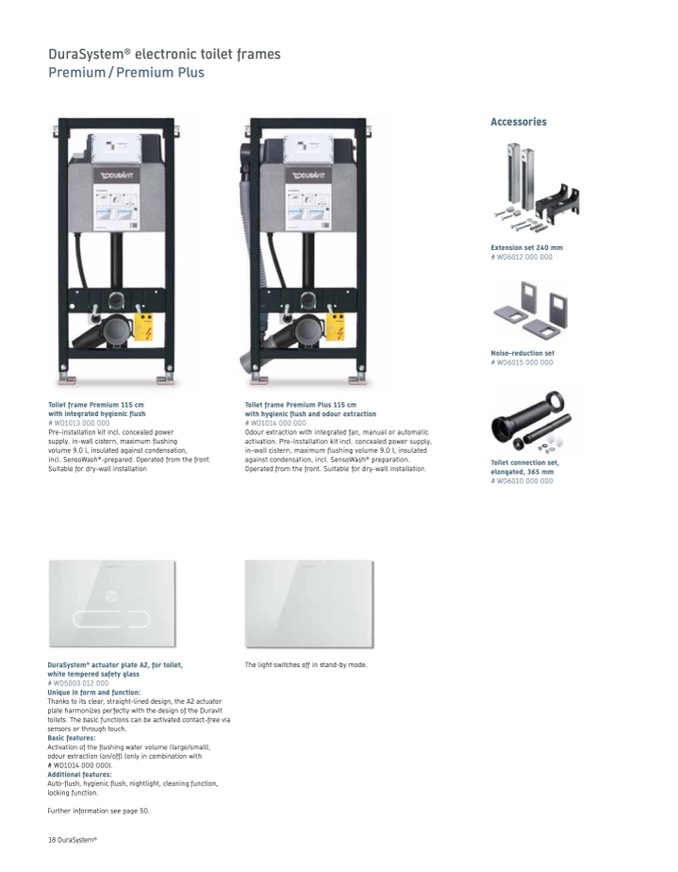

Duravit - DuraSystem

Toilet frame Premium 115 cm

with integrated hygienic flush

# WD1013 000 000

Pre-installation kit incl. concealed power

supply, in-wall cistern, maximum flushing

volume 9.0 l, insulated against condensation,

incl. SensoWash

-prepared. Operated from the front.

Suitable for dry-wall installation

DuraSystem

actuator plate A2, for toilet,

white tempered safety glass

# WD5003 012 000

Unique in form and function:

Thanks to its clear, straight-lined design, the A2 actuator

plate harmonizes perfectly with the design of the Duravit

toilets. The basic functions can be activated contact-free via

sensors or through touch.

Basic features:

Activation of the flushing water volume (large/small),

odour extraction (on/off) (only in combination with

# WD1014 000 000).

Additional features:

Auto-flush, hygienic flush, nightlight, cleaning function,

locking function.

Further information see page 50.

18 DuraSystem

Toilet frame Premium Plus 115 cm

with hygienic flush and odour extraction

# WD1014 000 000

Odour extraction with integrated fan, manual or automatic

activation. Pre-installation kit incl. concealed power supply,

in-wall cistern, maximum flushing volume 9.0 l, insulated

against condensation, incl. SensoWash

preparation.

Operated from the front. Suitable for dry-wall installation.

Extension set 240 mm

# WD6012 000 000

Noise-reduction set

# WD6015 000 000

Toilet connection set,

elongated, 365 mm

# WD6010 000 000

The light switches off in stand-by mode.
