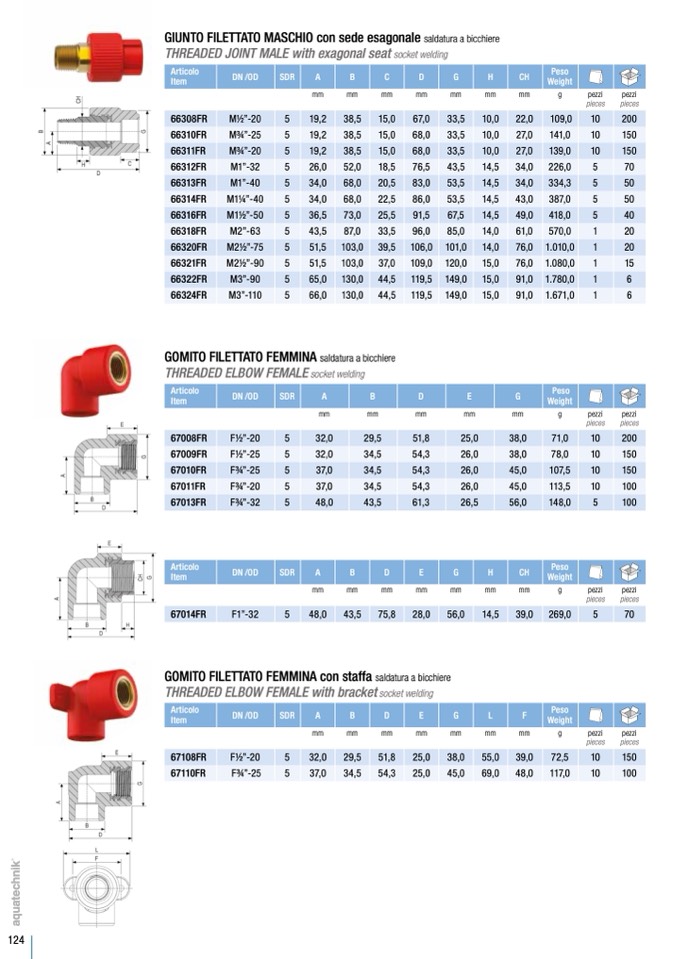

GIUNTO FILETTATO MASCHIO con sede esagonale saldatura a bicchiere
THREADED JOINT MALE with exagonal seat socket welding
Articolo
Item
66308FR
66310FR
66311FR
66312FR
66313FR
66314FR
66316FR
66318FR
66320FR
66321FR
66322FR
66324FR
DN /OD
M1⁄2”-20
M
3⁄4”-25
M
3⁄4”-20
M1”-32
M1”-40
M11⁄4”-40
M11⁄2”-50
M2”-63
M2
1⁄2”-75
M2
1⁄2”-90
M3”-90
M3”-110
SDR
5
5
5
5
5
5
5
5
5
5
5
5
A
mm
19,2
19,2
19,2
26,0
34,0
34,0
36,5
43,5
51,5
51,5
65,0
66,0
B
mm
38,5
38,5
38,5
52,0
68,0
68,0
73,0
87,0
103,0
103,0
130,0
130,0
C
mm
15,0
15,0
15,0
18,5
20,5
22,5
25,5
33,5
39,5
37,0
44,5
44,5
D
mm
67,0
68,0
68,0
76,5
83,0
86,0
91,5
96,0
106,0
109,0
119,5
119,5
G
mm
33,5
33,5
33,5
43,5
53,5
53,5
67,5
85,0
101,0
120,0
149,0
149,0
H
mm
10,0
10,0
10,0
14,5
14,5
14,5
14,5
14,0
14,0
15,0
15,0
15,0
CH
mm
22,0
27,0
27,0
34,0
34,0
43,0
49,0
61,0
76,0
76,0
91,0
91,0
Peso
Weight
g
109,0
141,0
139,0
226,0
334,3
387,0
418,0
570,0
1.010,0
1.080,0
1.780,0
1.671,0
pezzi
pieces
10
10
10
5
5
5
5
1
1
1
1
1
200
150
150
70
50
50
40
20
20
15
6
6
pezzi
pieces
GOMITO FILETTATO FEMMINA saldatura a bicchiere
THREADED ELBOW FEMALE socket welding
Articolo
Item
67008FR
67009FR
67010FR
67011FR
67013FR
DN /OD
F1⁄2”-20
F
1⁄2”-25
F3⁄4”-25
F3⁄4”-20
F3⁄4”-32
SDR
5
5
5
5
5
A
mm
32,0
32,0
37,0
37,0
48,0
B
mm
29,5
34,5
34,5
34,5
43,5
D
mm
51,8
54,3
54,3
54,3
61,3
E
mm
25,0
26,0
26,0
26,0
26,5
G
mm
38,0
38,0
45,0
45,0
56,0
Peso
Weight
g
71,0
78,0
107,5
113,5
148,0
pezzi
pieces
10
10
10
10
5
200
150
150
100
100
pezzi
pieces
Articolo
Item
67014FR
DN /OD
F1”-32
SDR
5
A
mm
48,0
B
mm
43,5
D
mm
75,8
E
mm
28,0
G
mm
56,0
H
mm
14,5
CH
mm
39,0
Peso
Weight
g
269,0
pezzi
pieces
5
70
GOMITO FILETTATO FEMMINA con staffa saldatura a bicchiere
THREADED ELBOW FEMALE with bracket socket welding
pezzi
pieces
pezzi
pieces
Articolo
Item
67108FR
67110FR
DN /OD
F1⁄2”-20
F
3⁄4”-25
SDR
5
5
A
mm
32,0
37,0
B
mm
29,5
34,5
D
mm
51,8
54,3
E
mm
25,0
25,0
G
mm
38,0
45,0
L
mm
55,0
69,0
F
mm
39,0
48,0
Peso
Weight
g
72,5
117,0
pezzi
pieces
10
10
150
100
124
