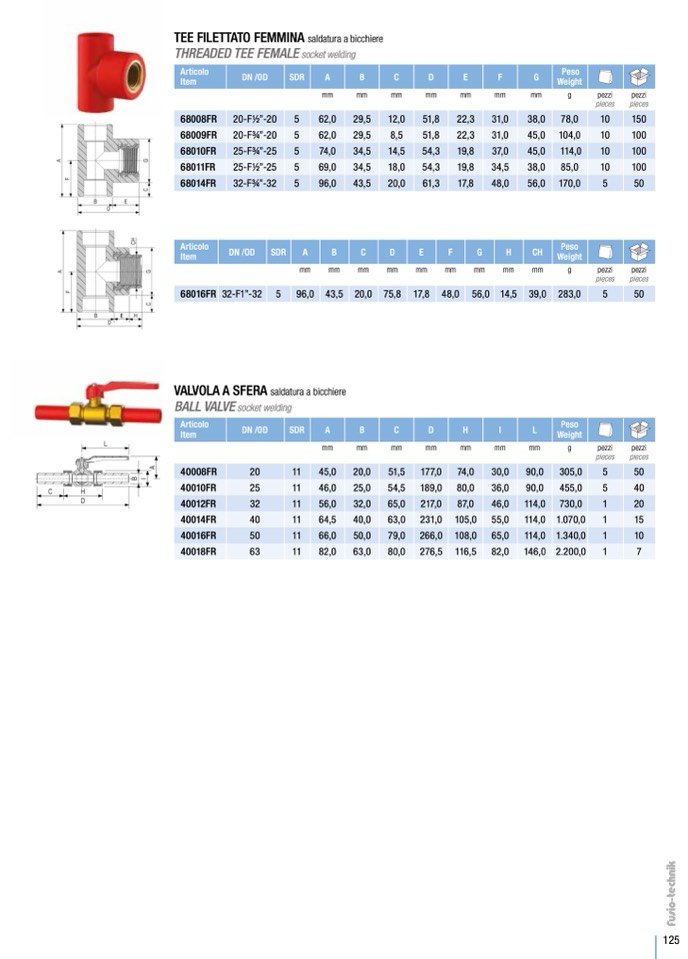

TEE FILETTATO FEMMINA saldatura a bicchiere
THREADED TEE FEMALE socket welding
Articolo
Item
68008FR
68009FR
68010FR
68011FR
68014FR
DN /OD
20-F
1⁄2”-20
20-F
3⁄4”-20
25-F3⁄4”-25
25-F1⁄2”-25
32-F3⁄4”-32
SDR
5
5
5
5
5
A
mm
62,0
62,0
74,0
69,0
96,0
B
mm
29,5
29,5
34,5
34,5
43,5
C
mm
12,0
8,5
14,5
18,0
20,0
D
mm
51,8
51,8
54,3
54,3
61,3
E
mm
22,3
22,3
19,8
19,8
17,8
F
mm
31,0
31,0
37,0
34,5
48,0
G
mm
38,0
45,0
45,0
38,0
56,0
Peso
Weight
g
78,0
104,0
114,0
85,0
170,0
pezzi
pieces
10
10
10
10
5
150
100
100
100
50
pezzi
pieces
Articolo
Item
68016FR
DN /OD
32-F1”-32
SDR
5
A
mm
96,0
B
mm
43,5
C
mm
20,0
D
mm
75,8
E
mm
17,8
F
mm
48,0
G
mm
56,0
H
mm
14,5
CH
mm
39,0
Peso
Weight
g
283,0
pezzi
pieces
5
50
pezzi
pieces
E
VALVOLA A SFERA saldatura a bicchiere
BALL VALVE socket welding
Articolo
Item
40008FR
40010FR
40012FR
40014FR
40016FR
40018FR
DN /OD
20
25
32
40
50
63
SDR
11
11
11
11
11
11
A
mm
45,0
46,0
56,0
64,5
66,0
82,0
B
mm
20,0
25,0
32,0
40,0
50,0
63,0
C
mm
51,5
54,5
65,0
63,0
79,0
80,0
D
mm
177,0
189,0
217,0
231,0
266,0
276,5
H
mm
74,0
80,0
87,0
105,0
108,0
116,5
I
mm
30,0
36,0
46,0
55,0
65,0
82,0
L
mm
90,0
90,0
114,0
114,0
114,0
146,0
Peso
Weight
g
305,0
455,0
730,0
1.070,0
1.340,0
2.200,0
pezzi
pieces
5
5
1
1
1
1
50
40
20
15
10
7
pezzi
pieces
125
