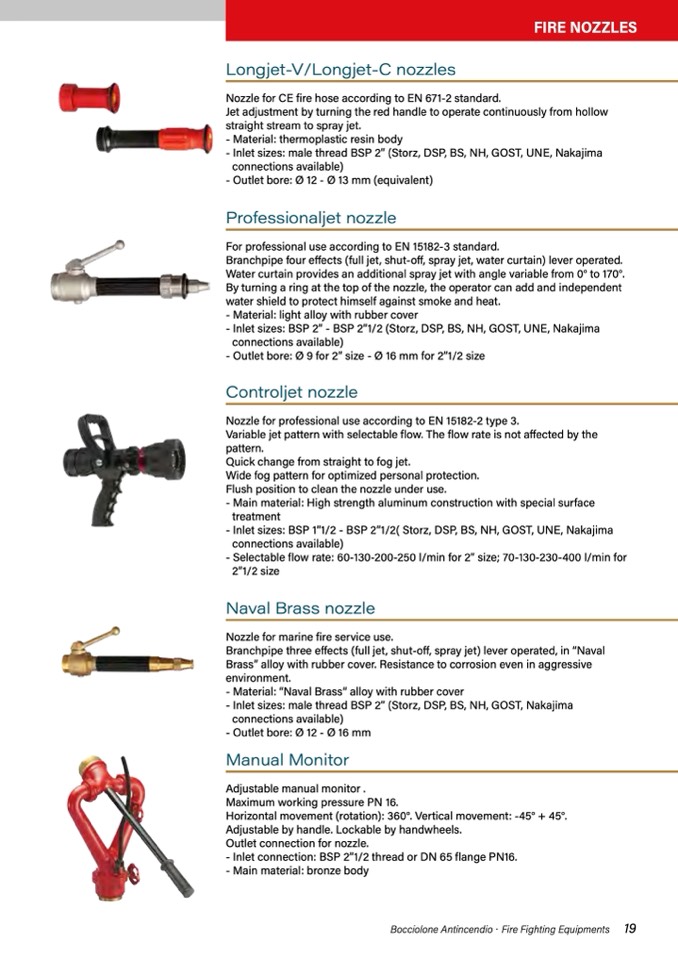

FIRE NOZZLES

Longjet-V/Longjet-C nozzles

Nozzle for CE fire hose according to EN 671-2 standard.

Jet adjustment by turning the red handle to operate continuously from hollow

straight stream to spray jet.

- Material: thermoplastic resin body

- Inlet sizes: male thread BSP 2” (Storz, DSP, BS, NH, GOST, UNE, Nakajima

connections available)

- Outlet bore: Ø 12 - Ø 13 mm (equivalent)

Professionaljet nozzle

For professional use according to EN 15182-3 standard.

Branchpipe four effects (full jet, shut-off, spray jet, water curtain) lever operated.

Water curtain provides an additional spray jet with angle variable from 0° to 170°.

By turning a ring at the top of the nozzle, the operator can add and independent

water shield to protect himself against smoke and heat.

- Material: light alloy with rubber cover

- Inlet sizes: BSP 2” - BSP 2”1/2 (Storz, DSP, BS, NH, GOST, UNE, Nakajima

connections available)

- Outlet bore: Ø 9 for 2” size - Ø 16 mm for 2”1/2 size

Controljet nozzle

Nozzle for professional use according to EN 15182-2 type 3.

Variable jet pattern with selectable flow. The flow rate is not affected by the

pattern.

Quick change from straight to fog jet.

Wide fog pattern for optimized personal protection.

Flush position to clean the nozzle under use.

- Main material: High strength aluminum construction with special surface

treatment

- Inlet sizes: BSP 1”1/2 - BSP 2”1/2( Storz, DSP, BS, NH, GOST, UNE, Nakajima

connections available)

- Selectable flow rate: 60-130-200-250 l/min for 2” size; 70-130-230-400 l/min for

2”1/2 size

Naval Brass nozzle

Nozzle for marine fire service use.

Branchpipe three effects (full jet, shut-off, spray jet) lever operated, in “Naval

Brass” alloy with rubber cover. Resistance to corrosion even in aggressive

environment.

- Material: “Naval Brass“ alloy with rubber cover

- Inlet sizes: male thread BSP 2” (Storz, DSP, BS, NH, GOST, Nakajima

connections available)

- Outlet bore: Ø 12 - Ø 16 mm

Manual Monitor

Adjustable manual monitor .

Maximum working pressure PN 16.

Horizontal movement (rotation): 360°. Vertical movement: -45° + 45°.

Adjustable by handle. Lockable by handwheels.

Outlet connection for nozzle.

- Inlet connection: BSP 2”1/2 thread or DN 65 flange PN16.

- Main material: bronze body
