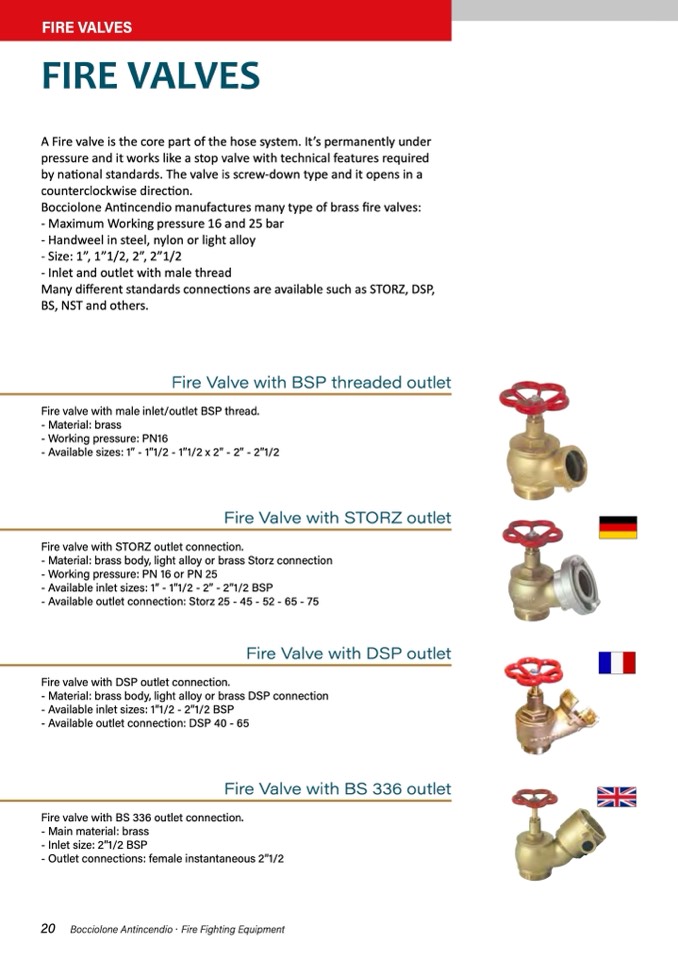

FIRE VALVES

FIRE VALVES

A Fire valve is the core part of the hose system. It’s permanently under

pressure and it works like a stop valve with technical features required

by national standards. The valve is screw-down type and it opens in a

counterclockwise direction.

Bocciolone Antincendio manufactures many type of brass fire valves:

- Maximum Working pressure 16 and 25 bar

- Handweel in steel, nylon or light alloy

- Size: 1”, 1”1/2, 2”, 2”1/2

- Inlet and outlet with male thread

Many different standards connections are available such as STORZ, DSP,

BS, NST and others.

Fire Valve with BSP threaded outlet

Fire valve with male inlet/outlet BSP thread.

- Material: brass

- Working pressure: PN16

- Available sizes: 1” - 1”1/2 - 1”1/2 x 2” - 2” - 2”1/2

Fire Valve with STORZ outlet

Fire valve with STORZ outlet connection.

- Material: brass body, light alloy or brass Storz connection

- Working pressure: PN 16 or PN 25

- Available inlet sizes: 1” - 1”1/2 - 2” - 2”1/2 BSP

- Available outlet connection: Storz 25 - 45 - 52 - 65 - 75

Fire Valve with DSP outlet

Fire valve with DSP outlet connection.

- Material: brass body, light alloy or brass DSP connection

- Available inlet sizes: 1”1/2 - 2”1/2 BSP

- Available outlet connection: DSP 40 - 65

Fire Valve with BS 336 outlet

Fire valve with BS 336 outlet connection.

- Main material: brass

- Inlet size: 2”1/2 BSP

- Outlet connections: female instantaneous 2”1/2

20 Bocciolone Antincendio · Fire Fighting Equipment
