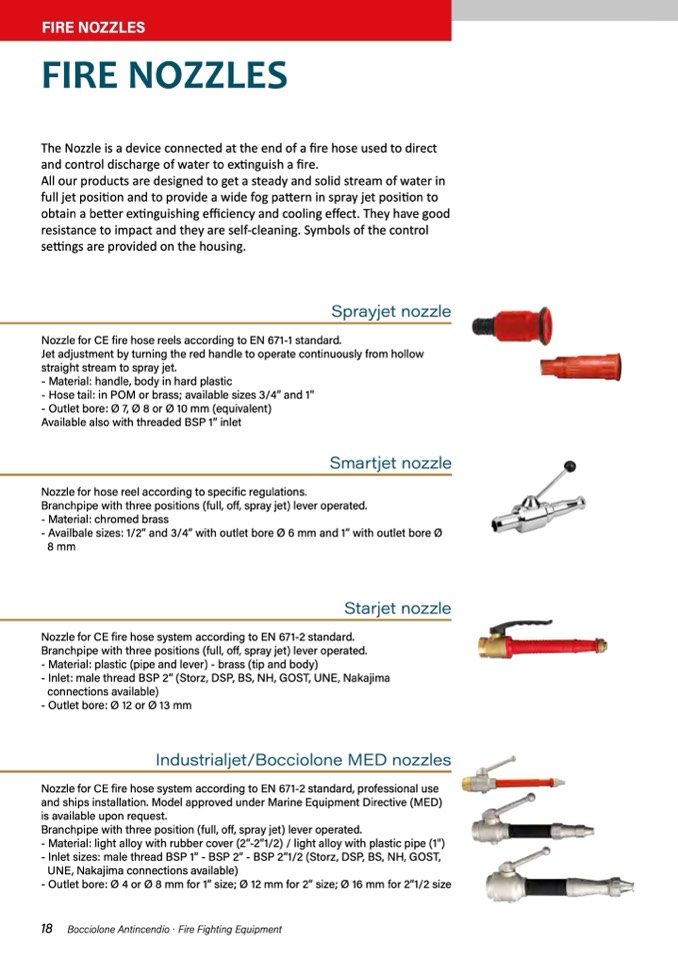

FIRE NOZZLES

FIRE NOZZLES

The Nozzle is a device connected at the end of a fire hose used to direct

and control discharge of water to extinguish a fire.

All our products are designed to get a steady and solid stream of water in

full jet position and to provide a wide fog pattern in spray jet position to

obtain a better extinguishing efficiency and cooling effect. They have good

resistance to impact and they are self-cleaning. Symbols of the control

settings are provided on the housing.

Sprayjet nozzle

Nozzle for CE fire hose reels according to EN 671-1 standard.

Jet adjustment by turning the red handle to operate continuously from hollow

straight stream to spray jet.

- Material: handle, body in hard plastic

- Hose tail: in POM or brass; available sizes 3/4” and 1”

- Outlet bore: Ø 7, Ø 8 or Ø 10 mm (equivalent)

Available also with threaded BSP 1” inlet

Smartjet nozzle

Nozzle for hose reel according to specific regulations.

Branchpipe with three positions (full, off, spray jet) lever operated.

- Material: chromed brass

- Availbale sizes: 1/2” and 3/4” with outlet bore Ø 6 mm and 1” with outlet bore Ø

8 mm

Starjet nozzle

Nozzle for CE fire hose system according to EN 671-2 standard.

Branchpipe with three positions (full, off, spray jet) lever operated.

- Material: plastic (pipe and lever) - brass (tip and body)

- Inlet: male thread BSP 2” (Storz, DSP, BS, NH, GOST, UNE, Nakajima

connections available)

- Outlet bore: Ø 12 or Ø 13 mm

Industrialjet/Bocciolone MED nozzles

Nozzle for CE fire hose system according to EN 671-2 standard, professional use

and ships installation. Model approved under Marine Equipment Directive (MED)

is available upon request.

Branchpipe with three position (full, off, spray jet) lever operated.

- Material: light alloy with rubber cover (2”-2”1/2) / light alloy with plastic pipe (1”)

- Inlet sizes: male thread BSP 1” - BSP 2” - BSP 2”1/2 (Storz, DSP, BS, NH, GOST,

UNE, Nakajima connections available)

- Outlet bore: Ø 4 or Ø 8 mm for 1” size; Ø 12 mm for 2” size; Ø 16 mm for 2”1/2 size
