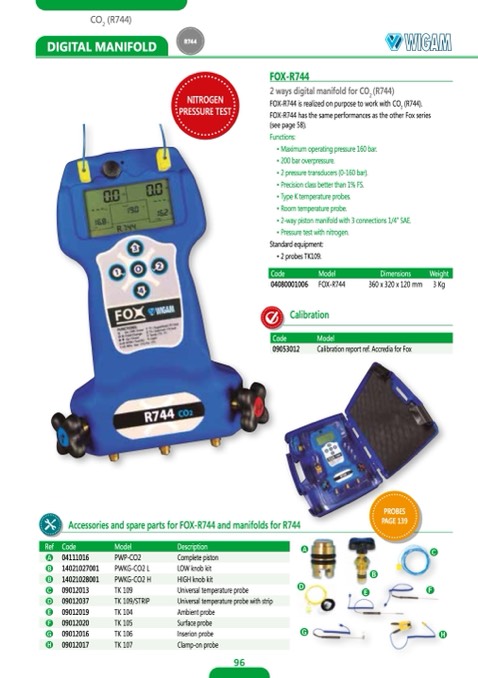

CO

2

(R744)

DIGITAL MANIFOLD

R744

NITROGEN

PRESSURE TEST

FOX-R744

2 ways digital manifold for CO

2

(R744)

FOX-R744 is realized on purpose to work with CO

2

(R744).

FOX-R744 has the same performances as the other Fox series

(see page 58).

Functions:

• Maximum operating pressure 160 bar.

• 200 bar overpressure.

• 2 pressure transducers (0-160 bar).

• Precision class better than 1% FS.

• Type K temperature probes.

• Room temperature probe.

• 2-way piston manifold with 3 connections 1/4” SAE.

• Pressure test with nitrogen.

Standard equipment:

• 2 probes TK109.

Calibration

Code

04080001006

Code

09053012

Model

FOX-R744

Model

Calibration report ref. Accredia for Fox

Dimensions

360 x 320 x 120 mm

Weight

3 Kg

Accessories and spare parts for FOX-R744 and manifolds for R744

A

D

B

Ref

Code

Model

Description

A

04111016

PWP-CO2

Complete piston

B

14021027001

PWKG-CO2 L

LOW knob kit

B

14021028001

PWKG-CO2 H

HIGH knob kit

C

09012013

TK 109

Universal temperature probe

D

09012037

TK 109/STRIP

Universal temperature probe with strip

E

09012019

TK 104

Ambient probe

F

09012020

TK 105

Surface probe

G

09012016

TK 106

Inserion probe

H

09012017

TK 107

Clamp-on probe

E

PROBES

PAGE 139

C

F

96

G

H
