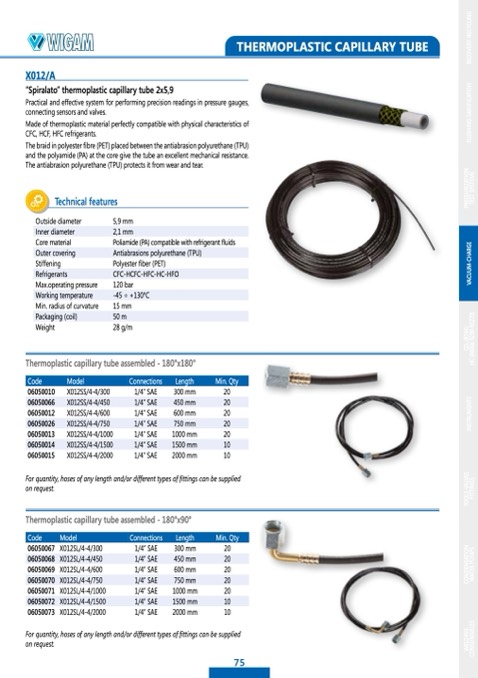

X012/A

“Spiralato” thermoplastic capillary tube 2x5,9

Practical and effective system for performing precision readings in pressure gauges,

connecting sensors and valves.

Made of thermoplastic material perfectly compatible with physical characteristics of

CFC, HCF, HFC refrigerants.

The braid in polyester fibre (PET) placed between the antiabrasion polyurethane (TPU)

and the polyamide (PA) at the core give the tube an excellent mechanical resistance.

The antiabrasion polyurethane (TPU) protects it from wear and tear.

Technical features

THERMOPLASTIC CAPILLARY TUBE

Outside diameter

Core material

Stiffening

Max.operating pressure

Min. radius of curvature

Weight

5,9 mm

Poliamide (PA) compatible with refrigerant fluids

Polyester fiber (PET)

120 bar

15 mm

28 g/m

Inner diameter

2,1 mm

Outer covering

Antiabrasions polyurethane (TPU)

Refrigerants

CFC-HCFC-HFC-HC-HFO

Working temperature

-45 ÷ +130°C

Packaging (coil)

50 m

Thermoplastic capillary tube assembled - 180°x180°

Code

Model

Connections

Length

Min. Qty

06050010

X012SS/4-4/300

1/4” SAE

300 mm

20

06050066

X012SS/4-4/450

1/4” SAE

450 mm

20

06050012

X012SS/4-4/600

1/4” SAE

600 mm

20

06050026

X012SS/4-4/750

1/4” SAE

750 mm

20

06050013

X012SS/4-4/1000

1/4” SAE

1000 mm

20

06050014

X012SS/4-4/1500

1/4” SAE

1500 mm

10

06050015

X012SS/4-4/2000

1/4” SAE

2000 mm

10

For quantity, hoses of any length and/or different types of fittings can be supplied

on request.

Thermoplastic capillary tube assembled - 180°x90°

Code

Model

Connections

Length

Min. Qty

06050067

X012SL/4-4/300

1/4” SAE

300 mm

20

06050068

X012SL/4-4/450

1/4” SAE

450 mm

20

06050069

X012SL/4-4/600

1/4” SAE

600 mm

20

06050070

X012SL/4-4/750

1/4” SAE

750 mm

20

06050071

X012SL/4-4/1000

1/4” SAE

1000 mm

20

06050072

X012SL/4-4/1500

1/4” SAE

1500 mm

10

06050073

X012SL/4-4/2000

1/4” SAE

2000 mm

10

For quantity, hoses of any length and/or different types of fittings can be supplied

on request.
