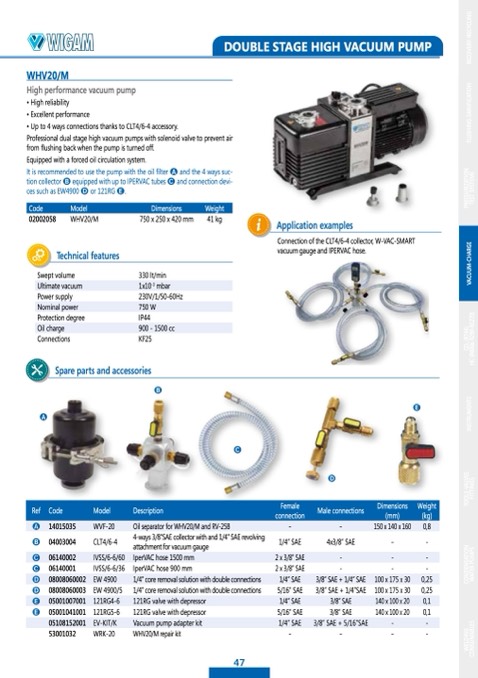

DOUBLE STAGE HIGH VACUUM PUMP

WHV20/M

High performance vacuum pump

• High reliability

• Excellent performance

• Up to 4 ways connections thanks to CLT4/6-4 accessory.

Professional dual stage high vacuum pumps with solenoid valve to prevent air

from flushing back when the pump is turned off.

Equipped with a forced oil circulation system.

It is recommended to use the pump with the oil filter A and the 4 ways suc-

tion collector B equipped with up to IPERVAC tubes C and connection devi-

ces such as EW4900 D or 121RG E.

Code

Model

Dimensions

Weight

02002058

WHV20/M

750 x 250 x 420 mm

41 kg

i

Application examples

Connection of the CLT4/6-4 collector, W-VAC-SMART

vacuum gauge and IPERVAC hose.

Technical features

Swept volume

Power supply

Protection degree

Connections

330 lt/min

230V/1/50-60Hz

IP44

KF25

Ultimate vacuum

1x10

-3

mbar

Nominal power

750 W

Oil charge

900 - 1500 cc

Spare parts and accessories

B

Ref

A

B

C

C

D

D

E

E

A

Code

14015035

04003004

06140002

06140001

08008060002

08008060003

05001007001

05001041001

05108152001

53001032

Model

WVF-20

CLT4/6-4

IVSS/6-6/60

IVSS/6-6/36

EW 4900

EW 4900/5

121RG4-6

121RG5-6

EV-KIT/K

WRK-20

Description

Oil separator for WHV20/M and RV-25B

4-ways 3/8”SAE collector with and 1/4” SAE revolving

attachment for vacuum gauge

IperVAC hose 1500 mm

IperVAC hose 900 mm

1/4” core removal solution with double connections

1/4” core removal solution with double connections

121RG valve with depressor

121RG valve with depressor

Vacuum pump adapter kit

WHV20/Mrepair kit

C

Female

connection

-

1/4” SAE

2 x 3/8” SAE

2 x 3/8” SAE

1/4” SAE

5/16” SAE

1/4” SAE

5/16” SAE

1/4” SAE

-

D

Male connections

-

4x3/8” SAE

-

-

3/8” SAE + 1/4” SAE

3/8” SAE + 1/4”SAE

3/8” SAE

3/8” SAE

3/8” SAE + 5/16”SAE

-

Dimensions

(mm)

150 x 140 x 160

-

-

-

100 x 175 x 30

100 x 175 x 30

140 x 100 x 20

140 x 100 x 20

-

-

E

Weight

(kg)

47

0,8

-

-

-

0,25

0,25

0,1

0,1

-

-
