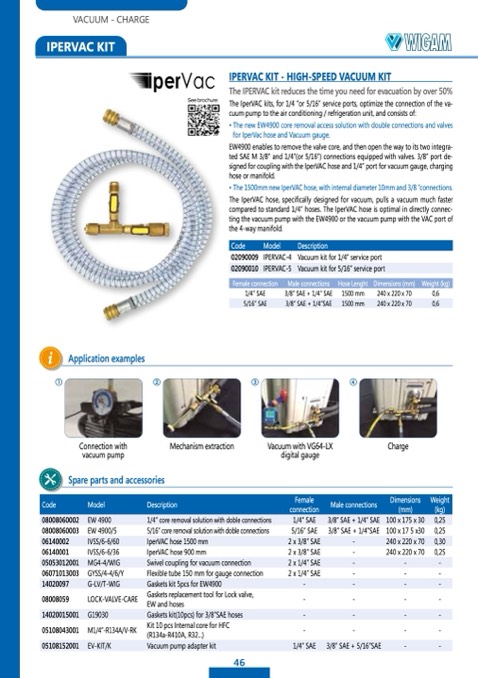

VACUUM - CHARGE

IPERVAC KIT

See brochure:

IPERVAC KIT - HIGH-SPEED VACUUM KIT

The IPERVAC kit reduces the time you need for evacuation by over 50%

The IperVAC kits, for 1/4 “or 5/16” service ports, optimize the connection of the va-

cuum pump to the air conditioning / refrigeration unit, and consists of:

• The new EW4900 core removal access solution with double connections and valves

for IperVac hose and Vacuum gauge.

EW4900 enables to remove the valve core, and then open the way to its two integra-

ted SAE M 3/8” and 1/4”(or 5/16“) connections equipped with valves. 3/8” port de-

signed for coupling with the IperVAC hose and 1/4” port for vacuum gauge, charging

hose or manifold.

• The 1500mm new IperVAC hose, with internal diameter 10mm and 3/8 “connections.

The IperVAC hose, specifically designed for vacuum, pulls a vacuum much faster

compared to standard 1/4” hoses. The IperVAC hose is optimal in directly connec-

ting the vacuum pump with the EW4900 or the vacuum pump with the VAC port of

the 4-way manifold.

Code

Model

Description

02090009

IPERVAC-4

Vacuum kit for 1/4” service port

02090010

IPERVAC-5

Vacuum kit for 5/16” service port

Female connection

1/4” SAE

5/16” SAE

Male connections

3/8” SAE + 1/4” SAE

3/8” SAE + 1/4”SAE

Hose Lenght

1500 mm

1500 mm

Dimensions (mm)

240 x 220 x 70

240 x 220 x 70

Weight (kg)

0,6

0,6

i

Application examples









Connection with

Mechanism extraction

Vacuum with VG64-LX

vacuum pump

digital gauge

Spare parts and accessories

Charge

Code

Model

Description

Female

connection

Male connections

Dimensions

(mm)

Weight

(kg)

08008060002

EW 4900

1/4” core removal solution with doble connections

1/4” SAE

3/8” SAE + 1/4” SAE

100 x 175 x 30

0,25

08008060003

EW 4900/5

5/16” core removal solution with doble connections

5/16” SAE

3/8” SAE + 1/4”SAE

100 x 17 5 x30

0,25

06140002

IVSS/6-6/60

IperVAC hose 1500 mm

2 x 3/8” SAE

-

240 x 220 x 70

0,30

06140001

IVSS/6-6/36

IperVAC hose 900 mm

2 x 3/8” SAE

-

240 x 220 x 70

0,25

05053012001

MG4-4/WIG

Swivel coupling for vacuum connection

2 x 1/4” SAE

-

-

-

06071013003

GYSS/4-4/6/Y

Flexible tube 150 mm for gauge connection

2 x 1/4” SAE

-

-

-

14020097

G-LV/T-WIG

Gaskets kit 5pcs for EW4900

-

-

-

-

08008059

LOCK-VALVE-CARE

Gaskets replacement tool for Lock valve,

EW and hoses

-

-

-

-

14020015001

G19030

Gaskets kit(10pcs) for 3/8”SAE hoses

-

-

-

-

05108043001

M1/4”-R134A/V-RK

Kit 10 pcs Internal core for HFC

(R134a-R410A, R32...)

-

-

-

-

05108152001

EV-KIT/K

Vacuum pump adapter kit

1/4” SAE

3/8” SAE + 5/16”SAE

-

-
