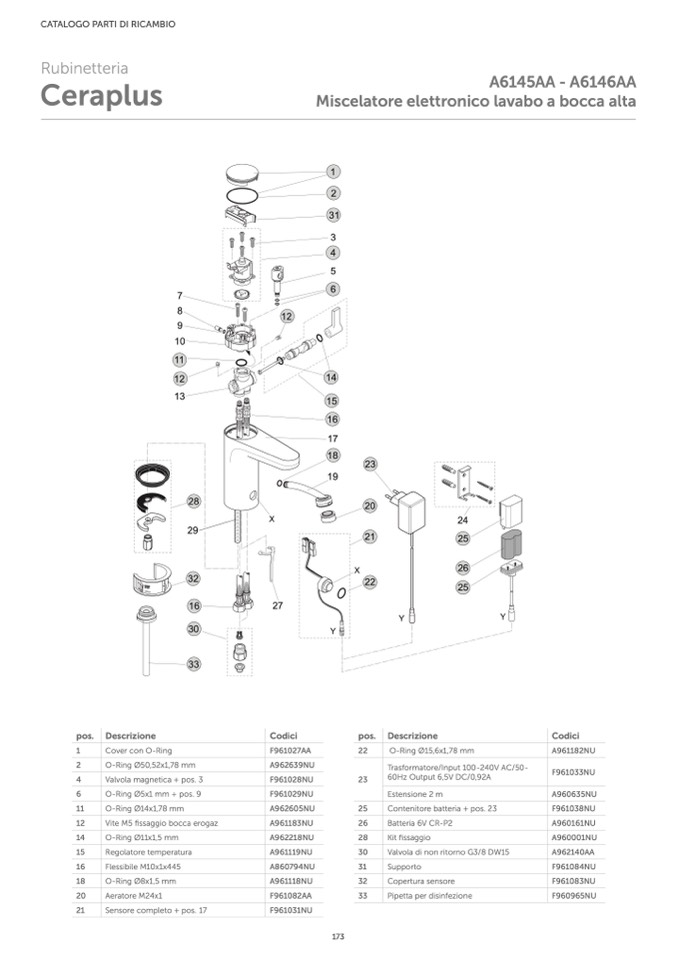

CATALOGO PARTI DI RICAMBIO

Rubinetteria

Ceraplus

A6145AA - A6146AA

Miscelatore elettronico lavabo a bocca alta

1

2

31

3

4

5

6

14

15

16

pos. Descrizione

Codici

A961182NU

F961033NU

A960635NU

F961038NU

A960161NU

A960001NU

A962140AA

F961084NU

F961083NU

F960965NU

1

Cover con O-Ring

2

O-Ring Ø50,52x1,78 mm

4

Valvola magnetica + pos. 3

6

O-Ring Ø5x1 mm + pos. 9

11

O-Ring Ø14x1,78 mm

12

Vite M5 fissaggio bocca erogaz

14

O-Ring Ø11x1,5 mm

15

Regolatore temperatura

16

Flessibile M10x1x445

18

O-Ring Ø8x1,5 mm

20

Aeratore M24x1

21

Sensore completo + pos. 17

22

O-Ring Ø15,6x1,78 mm

Trasformatore/Input 100-240V AC/50-

7

8

9

10

11

12

13

28

29

32

16

30

33

12

X

20

21

X

22

24

25

26

25

27

Codici

F961027AA

A962639NU

F961028NU

F961029NU

A962605NU

A961183NU

A962218NU

A961119NU

A860794NU

A961118NU

F961082AA

F961031NU

Y

pos. Descrizione

Y

17

18

23

19

Y

173

23

60Hz Output 6,5V DC/0,92A

Estensione 2 m

25

Contenitore batteria + pos. 23

26

Batteria 6V CR-P2

28

Kit fissaggio

30

Valvola di non ritorno G3/8 DW15

31

Supporto

32

Copertura sensore

33

Pipetta per disinfezione
