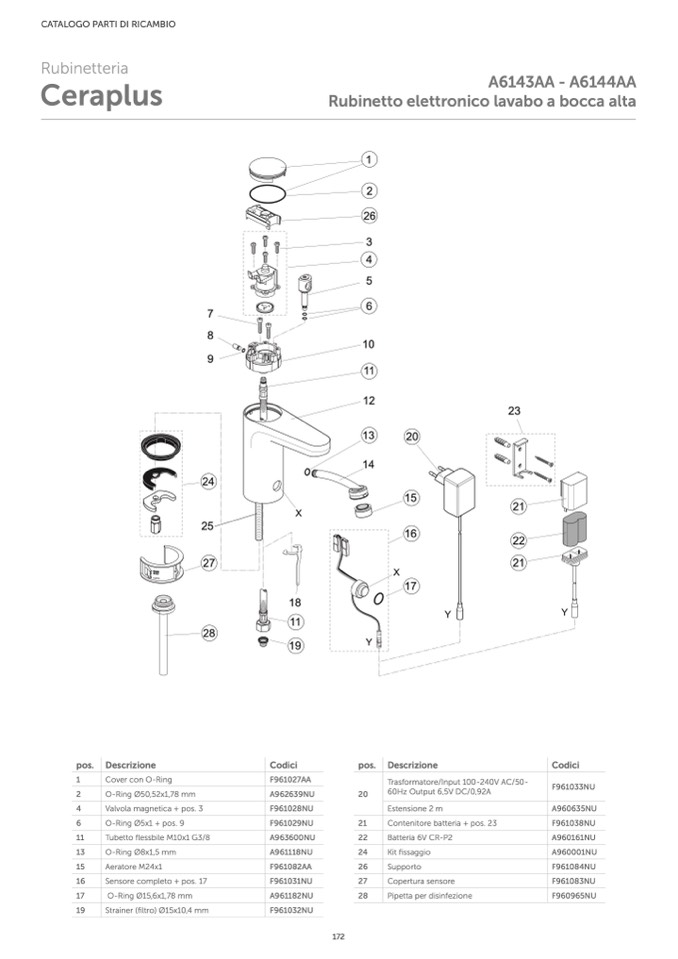

CATALOGO PARTI DI RICAMBIO

Rubinetteria

Ceraplus

A6143AA - A6144AA

Rubinetto elettronico lavabo a bocca alta

pos. Descrizione

1

Cover con O-Ring

2

O-Ring Ø50,52x1,78 mm

4

Valvola magnetica + pos. 3

6

O-Ring Ø5x1 + pos. 9

11

Tubetto flessbile M10x1 G3/8

13

O-Ring Ø8x1,5 mm

15

Aeratore M24x1

16

Sensore completo + pos. 17

17

O-Ring Ø15,6x1,78 mm

19

Strainer (filtro) Ø15x10,4 mm

pos. Descrizione

Codici

F961033NU

A960635NU

F961038NU

A960161NU

A960001NU

F961084NU

F961083NU

F960965NU

7

8

9

24

25

X

1

2

26

3

4

5

6

10

11

12

13

20

14

15

16

17

Y

Y

23

21

22

27

X

21

18

11

28

19

Codici

F961027AA

A962639NU

F961028NU

F961029NU

A963600NU

A961118NU

F961082AA

F961031NU

A961182NU

F961032NU

Y

172

20

Trasformatore/Input 100-240V AC/50-

60Hz Output 6,5V DC/0,92A

Estensione 2 m

21

Contenitore batteria + pos. 23

22

Batteria 6V CR-P2

24

Kit fissaggio

26

Supporto

27

Copertura sensore

28

Pipetta per disinfezione
