CATALOGO PARTI DI RICAMBIO
G1/2
Rubinetteria
G1/2
80
G1/2
A5716AA - A2393AA - A2391AA
Neon
Kit1 pre-installation 3/2ways
Kit1 pre-installation 4/3ways
A2393NU
A2391NU
A5716AA
Kit2 / Trim only -
chrome
Ø80
6
7
8
19 20
15
16

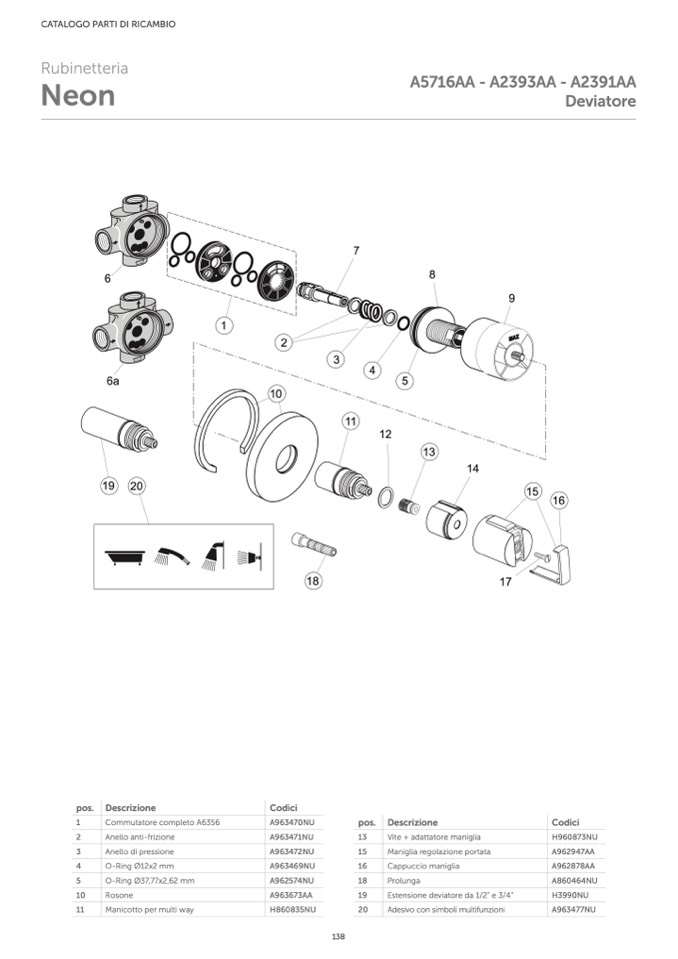

Pos. Description
1 Diverter elements compl.
2 Friktion ring
3 Spring
4 O - Ring Ø12 x 2
5 O - Ring Ø 37,77 x 2,62
6 Built-in body 3/2 Ways
6a Built-in body 4/3 Ways
7 Spindle
8 Cover
9 Plaster guard
10 Escutcheon with rubber
pos. Descrizione
Part-
Number
A 963 470 NU
A 963 471 NU
A 963 472 NU
A 963 469 NU
A 962 574 NU
A 963 673 AA
Qty.
1 Set
2 pcs.
1 pcs.
1 pcs.
1 pcs
1 pcs
Codici
Pos. Description
Part-
Number
Qty.
1 pcs
1 pcs
1 pcs
1 Set
1 pcs
1 pcs
1 pcs
1
Commutatore completo A6356
2
Anello anti-frizione
3
Anello di pressione
4
O-Ring Ø12x2 mm
5
O-Ring Ø37,77x2,62 mm
10
Rosone
11
Manicotto per multi way
A963470NU
A963471NU
A963472NU
A963469NU
A962574NU
A963673AA
H860835NU
13
Vite + adattatore maniglia
15
Maniglia regolazione portata
16
Cappuccio maniglia
18
Prolunga
19
Estensione deviatore da 1/2” e 3/4”
20
Adesivo con simboli multifunzioni
Codici
H960873NU
A962947AA
A962878AA
A860464NU
H3990NU
A963477NU
1
2
3
4
6a
5
10
18
17
Neon
11
12
11 Sleeve for Multi way
12 Plastic ring Ø18,5/11,7 x 1
13 Spindle adapter
14 Handle adapter
15 Control handle cpl.
16 Handle cap
17 Flat head screw M4x16 DIN85
18 Extension spindle
19 Extension kit
20 Adhesive film
with symbols
pos. Descrizione
A 860 464 NU
H 3990 NU
A 963 477 NU
138
41 min
66 max
64
9
13
14
H 860 835 NU
H 960 873 NU
A 962 947 AA
A 962 878 AA
