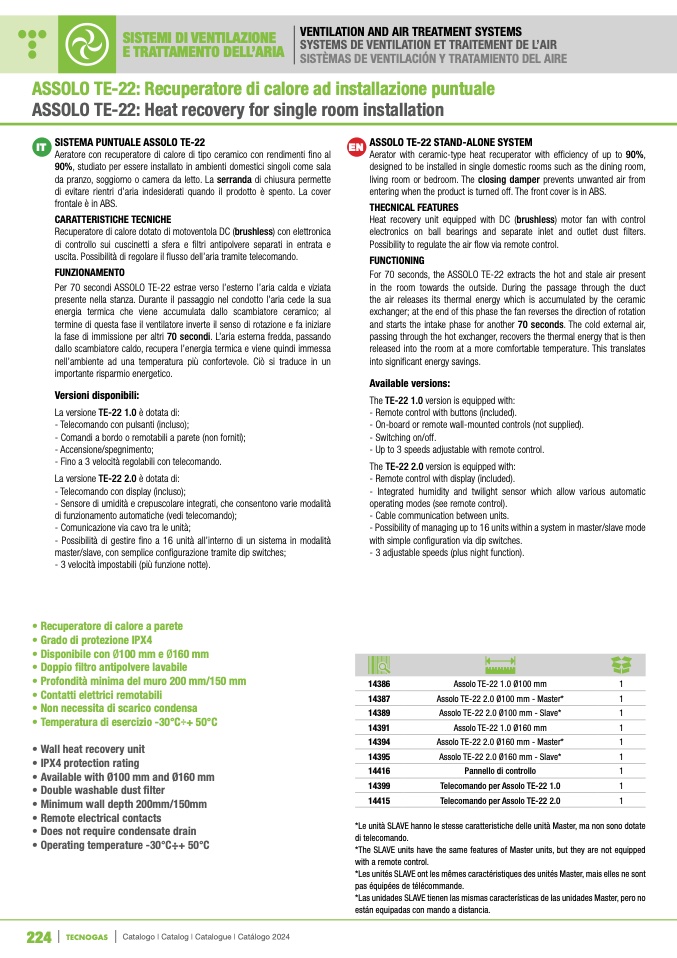

224

SISTEMI DI VENTILAZIONE

E TRATTAMENTO DELL’ARIA

VENTILATION AND AIR TREATMENT SYSTEMS

SYSTEMS DE VENTILATION ET TRAITEMENT DE L’AIR

SISTÈMAS DE VENTILACIÓN Y TRATAMIENTO DEL AIRE

ASSOLO TE-22: Recuperatore di calore ad installazione puntuale

ASSOLO TE-22: Heat recovery for single room installation

IT

SISTEMA PUNTUALE ASSOLO TE-22

Aeratore con recuperatore di calore di tipo ceramico con rendimenti fino al

90%, studiato per essere installato in ambienti domestici singoli come sala

da pranzo, soggiorno o camera da letto. La serranda di chiusura permette

di evitare rientri d’aria indesiderati quando il prodotto è spento. La cover

frontale è in ABS.

CARATTERISTICHE TECNICHE

Recuperatore di calore dotato di motoventola DC (brushless) con elettronica

di controllo sui cuscinetti a sfera e filtri antipolvere separati in entrata e

uscita. Possibilità di regolare il flusso dell’aria tramite telecomando.

FUNZIONAMENTO

Per 70 secondi ASSOLO TE-22 estrae verso l’esterno l’aria calda e viziata

presente nella stanza. Durante il passaggio nel condotto l’aria cede la sua

energia termica che viene accumulata dallo scambiatore ceramico; al

termine di questa fase il ventilatore inverte il senso di rotazione e fa iniziare

la fase di immissione per altri 70 secondi. L’aria esterna fredda, passando

dallo scambiatore caldo, recupera l’energia termica e viene quindi immessa

nell’ambiente ad una temperatura più confortevole. Ciò si traduce in un

importante risparmio energetico.

Versioni disponibili:

La versione TE-22 1.0 è dotata di:

- Telecomando con pulsanti (incluso);

- Comandi a bordo o remotabili a parete (non forniti);

- Accensione/spegnimento;

- Fino a 3 velocità regolabili con telecomando.

La versione TE-22 2.0 è dotata di:

- Telecomando con display (incluso);

- Sensore di umidità e crepuscolare integrati, che consentono varie modalità

di funzionamento automatiche (vedi telecomando);

- Comunicazione via cavo tra le unità;

- Possibilità di gestire fino a 16 unità all’interno di un sistema in modalità

master/slave, con semplice configurazione tramite dip switches;

- 3 velocità impostabili (più funzione notte).

• Recuperatore di calore a parete

• Grado di protezione IPX4

• Disponibile con Ø100 mm e Ø160 mm

• Doppio filtro antipolvere lavabile

• Profondità minima del muro 200 mm/150 mm

• Contatti elettrici remotabili

• Non necessita di scarico condensa

• Temperatura di esercizio -30°C÷+ 50°C

• Wall heat recovery unit

• IPX4 protection rating

• Available with Ø100 mm and Ø160 mm

• Double washable dust filter

• Minimum wall depth 200mm/150mm

• Remote electrical contacts

• Does not require condensate drain

• Operating temperature -30°C÷+ 50°C

EN

ASSOLO TE-22 STAND-ALONE SYSTEM

Aerator with ceramic-type heat recuperator with efficiency of up to 90%,

designed to be installed in single domestic rooms such as the dining room,

living room or bedroom. The closing damper prevents unwanted air from

entering when the product is turned off. The front cover is in ABS.

THECNICAL FEATURES

Heat recovery unit equipped with DC (brushless) motor fan with control

electronics on ball bearings and separate inlet and outlet dust filters.

Possibility to regulate the air flow via remote control.

FUNCTIONING

For 70 seconds, the ASSOLO TE-22 extracts the hot and stale air present

in the room towards the outside. During the passage through the duct

the air releases its thermal energy which is accumulated by the ceramic

exchanger; at the end of this phase the fan reverses the direction of rotation

and starts the intake phase for another 70 seconds. The cold external air,

passing through the hot exchanger, recovers the thermal energy that is then

released into the room at a more comfortable temperature. This translates

into significant energy savings.

Available versions:

The TE-22 1.0 version is equipped with:

- Remote control with buttons (included).

- On-board or remote wall-mounted controls (not supplied).

- Switching on/off.

- Up to 3 speeds adjustable with remote control.

The TE-22 2.0 version is equipped with:

- Remote control with display (included).

- Integrated humidity and twilight sensor which allow various automatic

operating modes (see remote control).

- Cable communication between units.

- Possibility of managing up to 16 units within a system in master/slave mode

with simple configuration via dip switches.

- 3 adjustable speeds (plus night function).

14386

14387

14389

14391

14394

14395

14416

14399

14415

Assolo TE-22 1.0 Ø100 mm

1

Assolo TE-22 2.0 Ø100 mm - Master*

1

Assolo TE-22 2.0 Ø100 mm - Slave*

1

Assolo TE-22 1.0 Ø160 mm

1

Assolo TE-22 2.0 Ø160 mm - Master*

1

Assolo TE-22 2.0 Ø160 mm - Slave*

1

Pannello di controllo

1

Telecomando per Assolo TE-22 1.0

1

Telecomando per Assolo TE-22 2.0

1

*Le unità SLAVE hanno le stesse caratteristiche delle unità Master, ma non sono dotate

di telecomando.

*The SLAVE units have the same features of Master units, but they are not equipped

with a remote control.

*Les unités SLAVE ont les mêmes caractéristiques des unités Master, mais elles ne sont

pas équipées de télécommande.

*Las unidades SLAVE tienen las mismas características de las unidades Master, pero no

están equipadas con mando a distancia.
