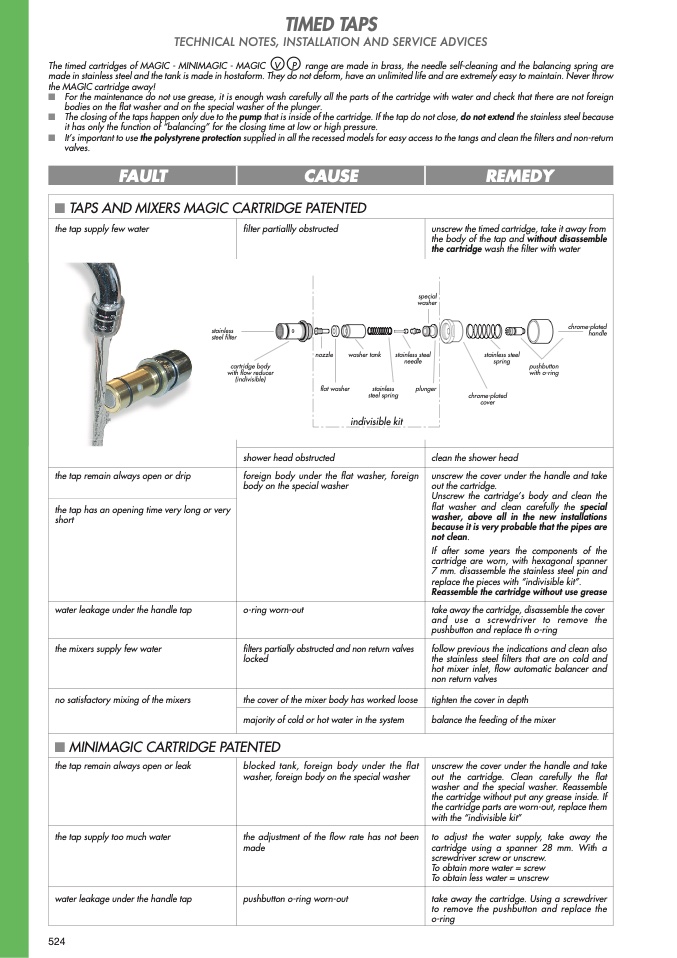

TIMED TAPS

TECHNICAL NOTES, INSTALLATION AND SERVICE ADVICES

The timed cartridges of MAGIC - MINIMAGIC - MAGIC V P range are made in brass, the needle self-cleaning and the balancing spring are

made in stainless steel and the tank is made in hostaform. They do not deform, have an unlimited life and are extremely easy to maintain. Never throw

the MAGIC cartridge away!

� For the maintenance do not use grease, it is enough wash carefully all the parts of the cartridge with water and check that there are not foreign

bodies on the flat washer and on the special washer of the plunger.

� The closing of the taps happen only due to the pump that is inside of the cartridge. If the tap do not close, do not extend the stainless steel because

it has only the function of “balancing” for the closing time at low or high pressure.

� It’s important to use the polystyrene protection supplied in all the recessed models for easy access to the tangs and clean the filters and non-return

valves.

FAULT

CAUSE

REMEDY

� TAPS AND MIXERS MAGIC CARTRIDGE PATENTED

the tap supply few water

filter partiallly obstructed

unscrew the timed cartridge, take it away from

the body of the tap and without disassemble

the cartridge wash the filter with water

stainless

steel filter

cartridge body

with flow reducer

(indivisible)

special

washer

stainless steel

needle

chrome-plated

handle

nozzle

flat washer

stainless steel

spring

chrome-plated

cover

pushbutton

with o-ring

washer tank

stainless

steel spring

indivisible kit

plunger

shower head obstructed

clean the shower head

the tap remain always open or drip

foreign body under the flat washer, foreign

body on the special washer

unscrew the cover under the handle and take

out the cartridge.

Unscrew the cartridge’s body and clean the

flat washer and clean carefully the special

washer, above all in the new installations

because it is very probable that the pipes are

not clean.

If after some years the components of the

cartridge are worn, with hexagonal spanner

7 mm. disassemble the stainless steel pin and

replace the pieces with “indivisible kit”.

Reassemble the cartridge without use grease

the tap has an opening time very long or very

short

water leakage under the handle tap

o-ring worn-out

take away the cartridge, disassemble the cover

and use a screwdriver to remove the

pushbutton and replace th o-ring

the mixers supply few water

filters partially obstructed and non return valves

locked

follow previous the indications and clean also

the stainless steel filters that are on cold and

hot mixer inlet, flow automatic balancer and

non return valves

no satisfactory mixing of the mixers

the cover of the mixer body has worked loose

tighten the cover in depth

majority of cold or hot water in the system

balance the feeding of the mixer

� MINIMAGIC CARTRIDGE PATENTED

the tap remain always open or leak

blocked tank, foreign body under the flat

washer, foreign body on the special washer

unscrew the cover under the handle and take

out the cartridge. Clean carefully the flat

washer and the special washer. Reassemble

the cartridge without put any grease inside. If

the cartridge parts are worn-out, replace them

with the “indivisible kit”

the tap supply too much water

the adjustment of the flow rate has not been

made

to adjust the water supply, take away the

cartridge using a spanner 28 mm. With a

screwdriver screw or unscrew.

To obtain more water = screw

To obtain less water = unscrew

water leakage under the handle tap

pushbutton o-ring worn-out

take away the cartridge. Using a screwdriver

to remove the pushbutton and replace the

o-ring
