Ø40

Ø

11⁄2”

Max Ø43,1mm

Ø32

Ø50

AS2887

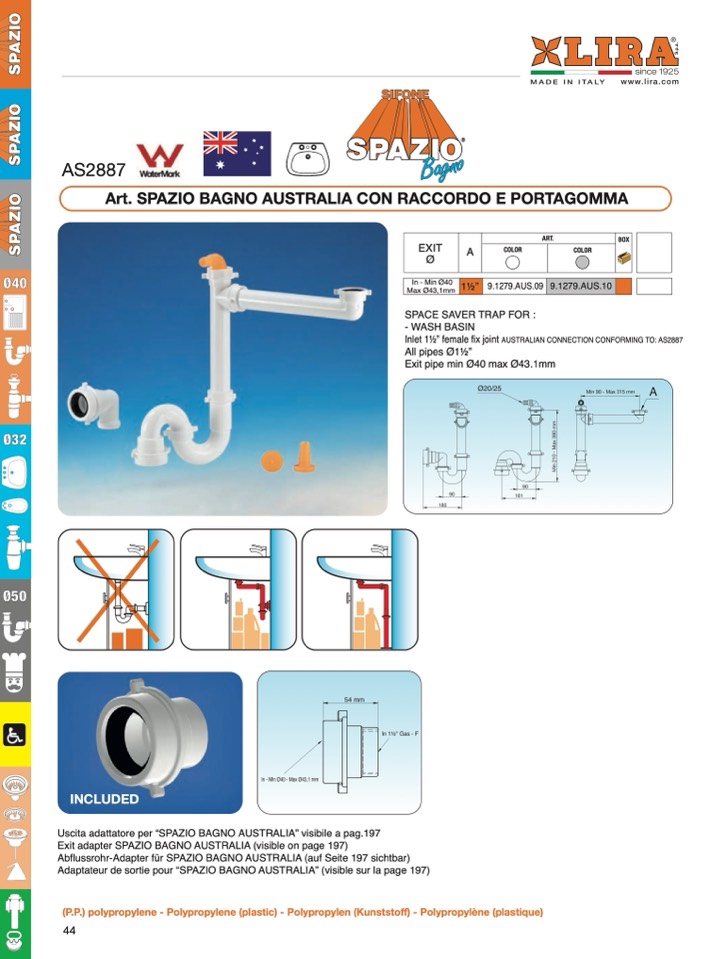

Art. SPAZIO BAGNO AUSTRALIA CON RACCORDO E PORTAGOMMA

INCLUDED

Uscita adattatore per “SPAZIO BAGNO AUSTRALIA” visibile a pag.197

Exit adapter SPAZIO BAGNO AUSTRALIA (visible on page 197)

Abflussrohr-Adapter für SPAZIO BAGNO AUSTRALIA (auf Seite 197 sichtbar)

Adaptateur de sortie pour “SPAZIO BAGNO AUSTRALIA” (visible sur la page 197)

(P.P.) polypropylene - Polypropylene (plastic) - Polypropylen (Kunststoff) - Polypropylène (plastique)

44

ExIT A

COLOR

ART.

COLOR

BOX

In - Min Ø40

9.1279.AUS.09 9.1279.AUS.10

SPACE SAVER TRAP FOR :

- WASH BASIN

Inlet 11⁄2” female fix joint AUSTRALIAN CONNECTION CONFORMING TO: AS2887

All pipes Ø11⁄2”

Exit pipe min Ø40 max Ø43.1mm
