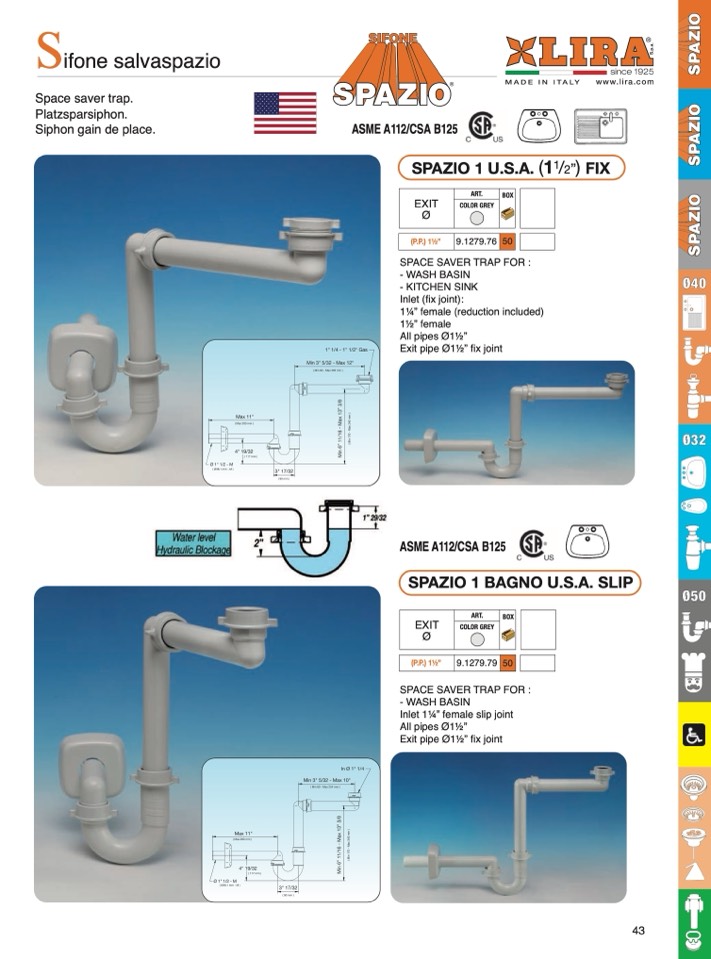

S

ifone salvaspazio

Space saver trap.

Platzsparsiphon.

Siphon gain de place.

ASME A112/CSA B125

SPAZIO 1 U.S.A. (11/2”) FIX

ART.

BOX

ExIT

COLOR GREY

Ø

(P.P.) 11⁄2”

9.1279.76 50

SPACE SAVER TRAP FOR :

- WASH BASIN

- KITCHEN SINK

Inlet (fix joint):

Ø40

11⁄4” female (reduction included)

11⁄2” female

All pipes Ø11⁄2”

Exit pipe Ø11⁄2” fix joint

ASME A112/CSA B125

SPAZIO 1 BAGNO U.S.A. SLIP

Ø50

ART.

BOX

ExIT

COLOR GREY

Ø

(P.P.) 11⁄2”

9.1279.79 50

SPACE SAVER TRAP FOR :

- WASH BASIN

Inlet 11⁄4” female slip joint

All pipes Ø11⁄2”

Exit pipe Ø11⁄2” fix joint

43

Ø32
