CODIFICAZIONE

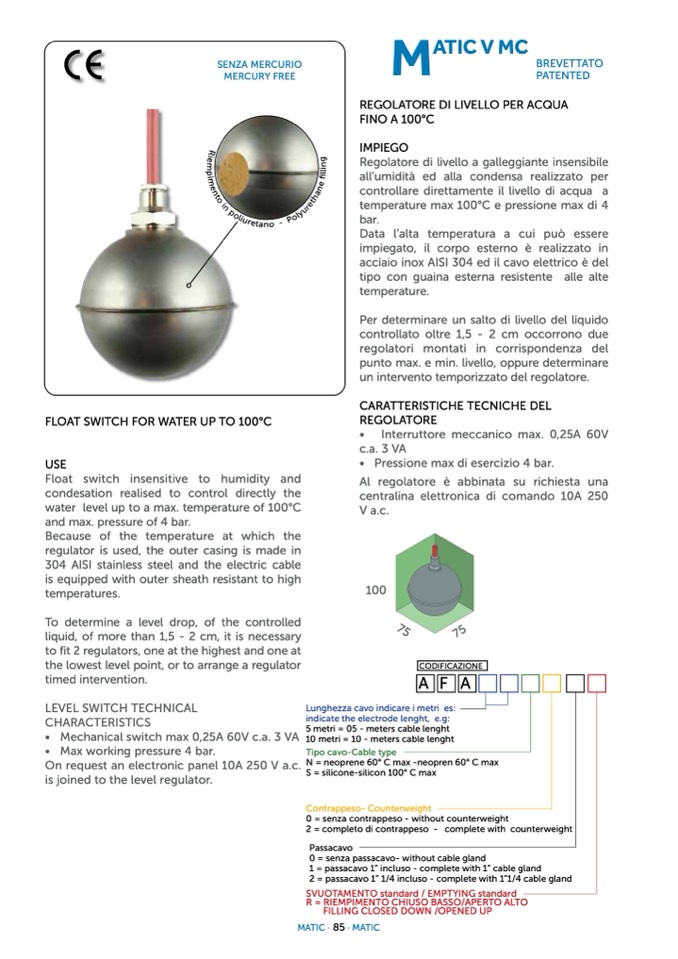

FLOAT SWITCH FOR WATER UP TO 100°C

USE

Float switch insensitive to humidity and

condesation realised to control directly the

water level up to a max. temperature of 100°C

and max. pressure of 4 bar.

Because of the temperature at which the

regulator is used, the outer casing is made in

304 AISI stainless steel and the electric cable

is equipped with outer sheath resistant to high

temperatures.

To determine a level drop, of the controlled

liquid, of more than 1,5 - 2 cm, it is necessary

to fit 2 regulators, one at the highest and one at

the lowest level point, or to arrange a regulator

timed intervention.

LEVEL SWITCH TECHNICAL

CHARACTERISTICS

• Mechanical switch max 0,25A 60V c.a. 3 VA

• Max working pressure 4 bar.

On request an electronic panel 10A 250 V a.c.

is joined to the level regulator.

AFA

SENZA MERCURIO

MERCURY FREE

t

a

n

M

ATIC V MC

BREVETTATO

PATENTED

REGOLATORE DI LIVELLO PER ACQUA

FINO A 100°C

IMPIEGO

Regolatore di livello a galleggiante insensibile

all’umidit

à ed alla condensa realizzato per

controllare direttamente il livello di acqua a

temperature max 100°C e pressione max di 4

bar.

Data l’alta temperatura a cui pu

ò essere

impiegato, il corpo esterno è realizzato in

acciaio inox AISI 304 ed il cavo elettrico è del

tipo con guaina esterna resistente alle alte

temperature.

Per determinare un salto di livello del liquido

controllato oltre 1,5 - 2 cm occorrono due

regolatori montati in corrispondenza del

punto max. e min. livello, oppure determinare

un intervento temporizzato del regolatore.

CARATTERISTICHE TECNICHE DEL

REGOLATORE

• Interruttore meccanico max. 0,25A 60V

c.a. 3 VA

• Pressione max di esercizio 4 bar.

Al regolatore

è abbinata su richiesta una

centralina elettronica di comando 10A 250

V a.c.

100

Lunghezza cavo indicare i metri es:

indicate the electrode lenght, e.g:

5 metri = 05 - meters cable lenght

10 metri = 10 - meters cable lenght

Tipo cavo-Cable type

N = neoprene 60° C max -neopren 60° C max

S = silicone-silicon 100° C max

Contrappeso- Counterweight

0 = senza contrappeso - without counterweight

2 = completo di contrappeso - complete with counterweight

Passacavo

0 = senza passacavo- without cable gland

1 = passacavo 1” incluso - complete with 1” cable gland

2 = passacavo 1” 1/4 incluso - complete with 1”1/4 cable gland

SVUOTAMENTO standard / EMPTYING standard

R = RIEMPIMENTO CHIUSO BASSO/APERTO ALTO

FILLING CLOSED DOWN /OPENED UP

MATIC · 85 · MATIC
