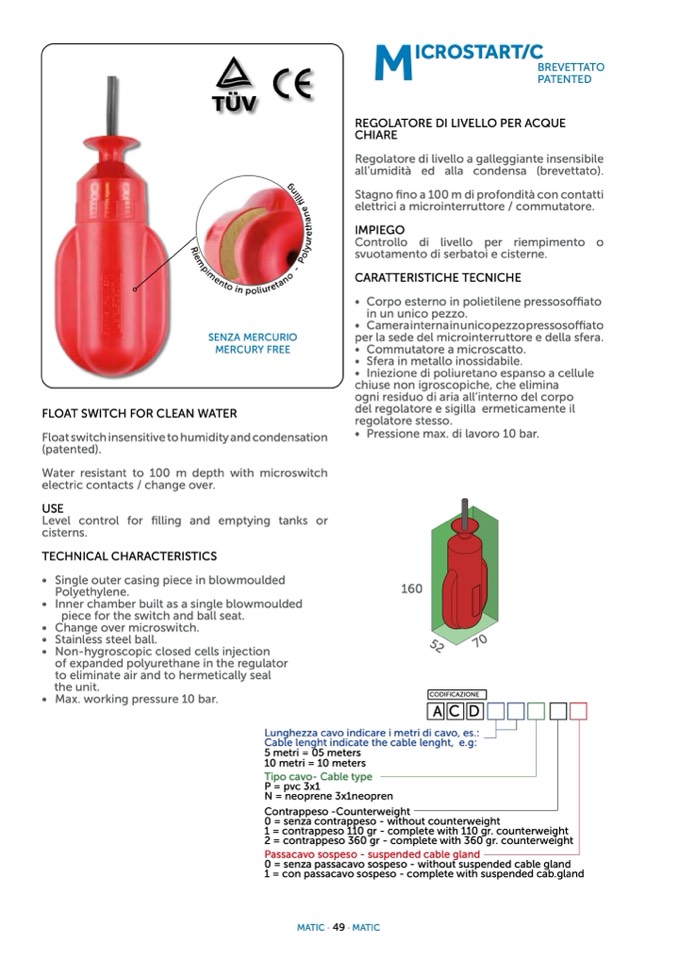

SENZA MERCURIO

MERCURY FREE

FLOAT SWITCH FOR CLEAN WATER

Float switch insensitive to humidity and condensation

(patented).

Water resistant to 100 m depth with microswitch

electric contacts / change over.

USE

Level control for

filling and emptying tanks or

cisterns.

TECHNICAL CHARACTERISTICS

M

ICROSTART/C

BREVETTATO

PATENTED

REGOLATORE DI LIVELLO PER ACQUE

CHIARE

Regolatore di livello a galleggiante insensibile

all’umidit

à ed alla condensa (brevettato).

Stagno

fino a 100 m di profondità con contatti

elettrici a microinterruttore / commutatore.

IMPIEGO

Controllo di livello per riempimento o

svuotamento di serbatoi e cisterne.

CARATTERISTICHE TECNICHE

• Corpo esterno in polietilene pressoso

ffiato

in un unico pezzo.

• Camerainternainunicopezzopressosoffiato

per la sede del microinterruttore e della sfera.

• Commutatore a microscatto.

• Sfera in metallo inossidabile.

• Iniezione di poliuretano espanso a cellule

chiuse non igroscopiche, che elimina

ogni residuo di aria all’interno del corpo

del regolatore e sigilla ermeticamente il

regolatore stesso.

• Pressione max. di lavoro 10 bar.

• Single outer casing piece in blowmoulded

Polyethylene.

160

• Inner chamber built as a single blowmoulded

piece for the switch and ball seat.

• Change over microswitch.

• Stainless steel ball.

• Non-hygroscopic closed cells injection

of expanded polyurethane in the regulator

to eliminate air and to hermetically seal

the unit.

CODIFICAZIONE

• Max. working pressure 10 bar.

ACD

Lunghezza cavo indicare i metri di cavo, es.:

Cable lenght indicate the cable lenght, e.g:

5 metri = 05 meters

10 metri = 10 meters

Tipo cavo- Cable type

P = pvc 3x1

N = neoprene 3x1neopren

Contrappeso -Counterweight

0 = senza contrappeso - without counterweight

1 = contrappeso 110 gr - complete with 110 gr. counterweight

2 = contrappeso 360 gr - complete with 360 gr. counterweight

Passacavo sospeso - suspended cable gland

0 = senza passacavo sospeso - without suspended cable gland

1 = con passacavo sospeso - complete with suspended cab.gland

MATIC · 49 · MATIC
