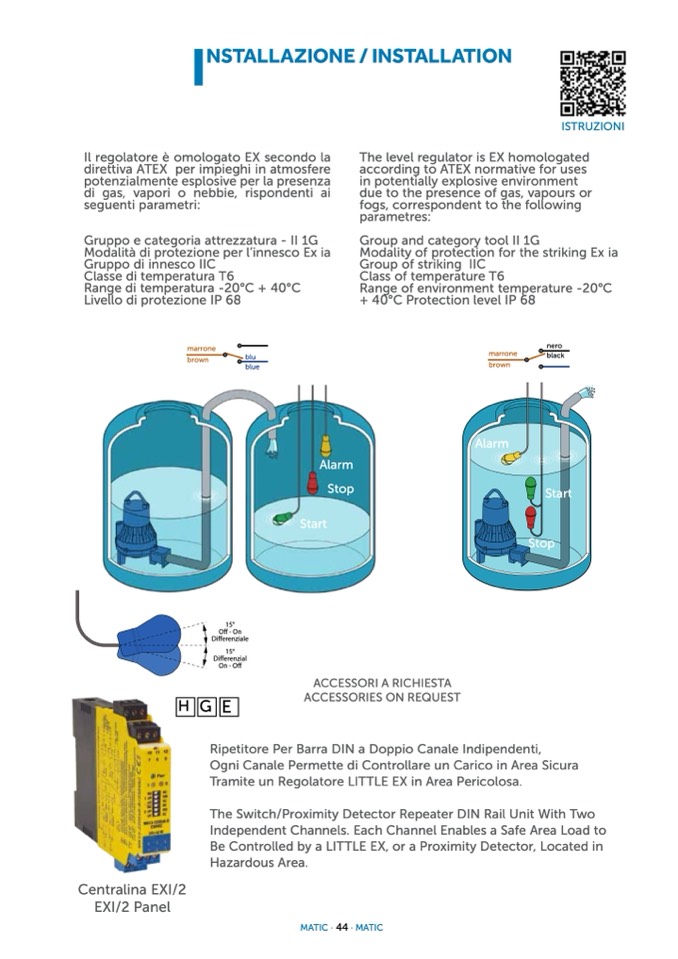

I

NSTALLAZIONE

Il regolatore

è omologato EX secondo la

direttiva ATEX per impieghi in atmosfere

potenzialmente esplosive per la presenza

di gas, vapori o nebbie, rispondenti ai

seguenti parametri:

Gruppo e categoria attrezzatura - II 1G

Modalità di protezione per l’innesco Ex ia

Gruppo di innesco IIC

Classe di temperatura T6

/ INSTALLATION

Range di temperatura -20°C + 40°C

Livello di protezione IP 68

ISTRUZIONI

The level regulator is EX homologated

according to ATEX normative for uses

in potentially explosive environment

due to the presence of gas, vapours or

fogs, correspondent to the following

parametres:

Group and category tool II 1G

Modality of protection for the striking Ex ia

Group of striking IIC

Class of temperature T6

Range of environment temperature -20°C

+ 40°C Protection level IP 68

marrone

brown

blu

blue

marrone

brown

nero

black

Alarm

Stop

Start

Alarm

Start

Stop

Centralina EXI/2

EXI/2 Panel

H

GE

ACCESSORI A RICHIESTA

ACCESSORIES ON REQUEST

15°

Off - On

Differenziale

15°

Differenzial

On - Off

Ripetitore Per Barra DIN a Doppio Canale Indipendenti,

Ogni Canale Permette di Controllare un Carico in Area Sicura

Tramite un Regolatore LITTLE EX in Area Pericolosa.

The Switch/Proximity Detector Repeater DIN Rail Unit With Two

Independent Channels. Each Channel Enables a Safe Area Load to

Be Controlled by a LITTLE EX, or a Proximity Detector, Located in

Hazardous Area.
