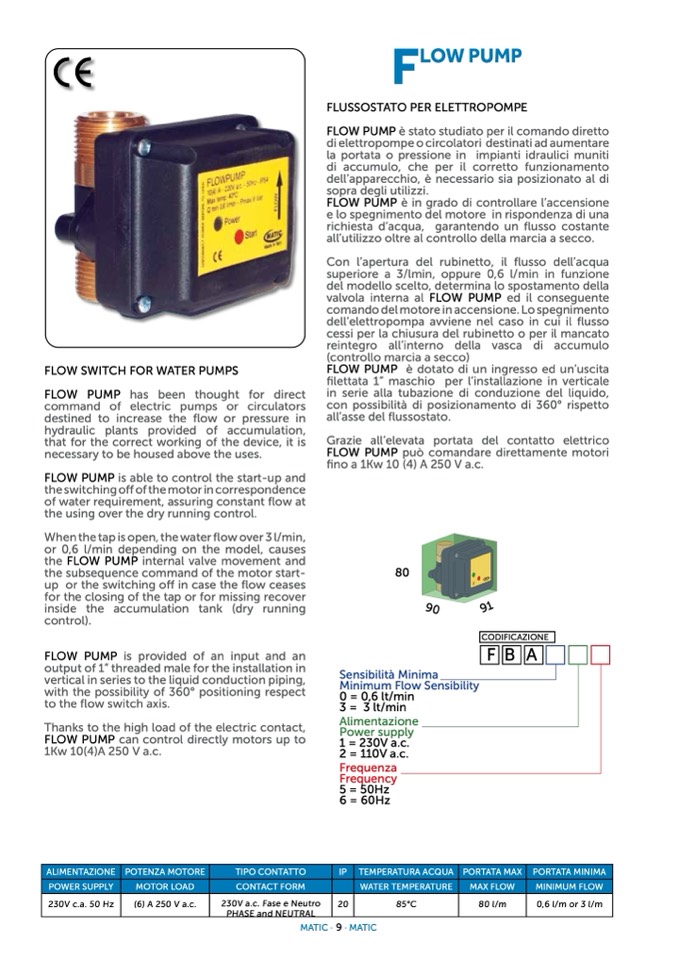

FLOW SWITCH FOR WATER PUMPS

F

LOW PUMP

FLUSSOSTATO PER ELETTROPOMPE

FLOW PUMP è stato studiato per il comando diretto

di elettropompe o circolatori destinati ad aumentare

la portata o pressione in impianti idraulici muniti

di accumulo, che per il corretto funzionamento

dell’apparecchio, è necessario sia posizionato al di

sopra degli utilizzi.

FLOW PUMP

è in grado di controllare l’accensione

e lo spegnimento del motore in rispondenza di una

richiesta d’acqua, garantendo un

flusso costante

all’utilizzo oltre al controllo della marcia a secco.

Con l’apertura del rubinetto, il flusso dell’acqua

superiore a 3/lmin, oppure 0,6 l/min in funzione

del modello scelto, determina lo spostamento della

valvola interna al FLOW PUMP ed il conseguente

comando del motore in accensione. Lo spegnimento

dell’elettropompa avviene nel caso in cui il flusso

cessi per la chiusura del rubinetto o per il mancato

reintegro all’interno della vasca di accumulo

(controllo marcia a secco)

FLOW PUMP è dotato di un ingresso ed un’uscita

filettata 1” maschio per l’installazione in verticale

in serie alla tubazione di conduzione del liquido,

con possibilità di posizionamento di 360° rispetto

all’asse del flussostato.

Grazie all’elevata portata del contatto elettrico

FLOW PUMP può comandare direttamente motori

fino a 1Kw 10 (4) A 250 V a.c.

FLOW PUMP has been thought for direct

command of electric pumps or circulators

destined to increase the flow or pressure in

hydraulic plants provided of accumulation,

that for the correct working of the device, it is

necessary to be housed above the uses.

FLOW PUMP is able to control the start-up and

the switching off of the motor in correspondence

of water requirement, assuring constant

flow at

the using over the dry running control.

When the tap is open, the water flow over 3 l/min,

or 0,6 l/min depending on the model, causes

the FLOW PUMP internal valve movement and

the subsequence command of the motor start-

up or the switching o

ff in case the flow ceases

for the closing of the tap or for missing recover

inside the accumulation tank (dry running

control).

FLOW PUMP is provided of an input and an

output of 1” threaded male for the installation in

vertical in series to the liquid conduction piping,

with the possibility of 360° positioning respect

to the

flow switch axis.

Thanks to the high load of the electric contact,

FLOW PUMP can control directly motors up to

1Kw 10(4)A 250 V a.c.

80

Sensibilit

à Minima

Minimum Flow Sensibility

0 = 0,6 lt/min

3 = 3 lt/min

Frequenza

Frequency

5 = 50Hz

6 = 60Hz

20

85°C

FBA

230V c.a. 50 Hz

(6) A 250 V a.c.

230V a.c. Fase e Neutro

PHASE and NEUTRAL

80 l/m

0,6 l/m or 3 l/m

MATIC · 9 · MATIC

91

90

CODIFICAZIONE

Alimentazione

Power supply

1 = 230V a.c.

2 = 110V a.c.

ALIMENTAZIONE

POTENZA MOTORE

TIPO CONTATTO

IP

TEMPERATURA ACQUA

PORTATA MAX

PORTATA MINIMA

POWER SUPPLY

MOTOR LOAD

CONTACT FORM

WATER TEMPERATURE

MAX FLOW

MINIMUM FLOW
