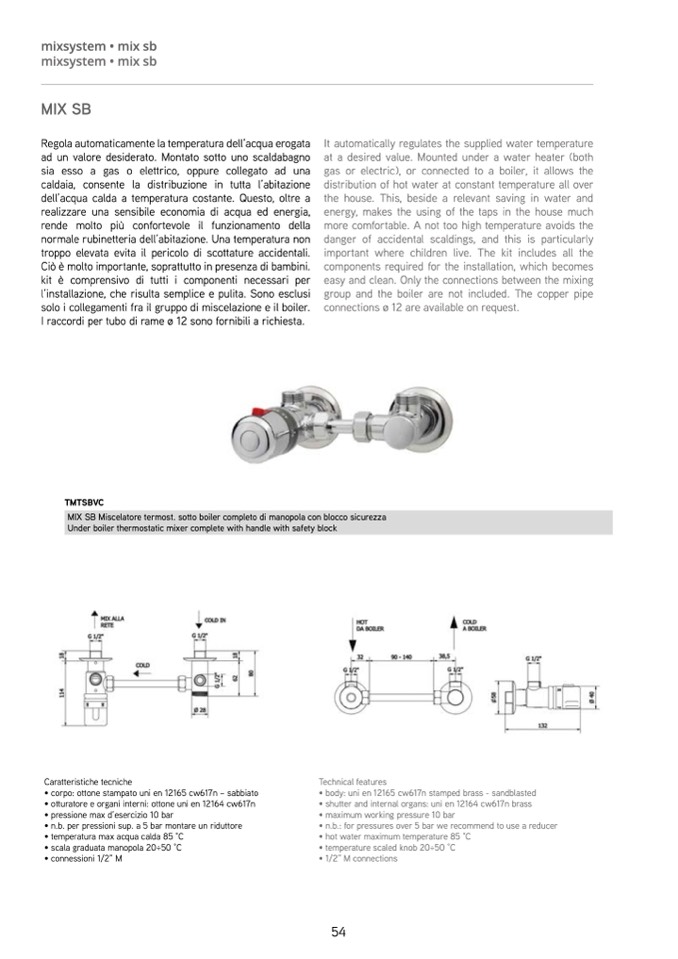

MIX SB

Regola automaticamente la temperatura dell’acqua erogata

ad un valore desiderato. Montato sotto uno scaldabagn

o

sia esso a gas o elettrico, oppure collegato ad una

caldaia, consente la distribuzione in tutta l’abitazione

dell’acqua calda a temperatura costante. Questo, oltre

a

realizzare una sensibile economia di acqua ed energia

,

rende molto più confortevole il funzionamento della

normale rubinetteria dell’abitazione. Una temperatura non

troppo elevata evita il pericolo di scottature accidentali

.

Ciò è molto importante, soprattutto in presenza di bambini

.

kit è comprensivo di tutti i componenti necessari per

l’installazione, che risulta semplice e pulita. Sono esclusi

solo i collegamenti fra il gruppo di miscelazione e il boiler.

I raccordi per tubo di rame ø 12 sono fornibili a richiesta.

It automatically regulates the supplied water temperature

at a desired value. Mounted under a water heater (both

gas or electric), or connected to a boiler, it allows the

distribution of hot water at constant temperature all over

the house. This, beside a relevant saving in water and

energy, makes the using of the taps in the house muc

h

more comfortable. A not too high temperature avoids th

e

danger of accidental scaldings, and this is particularly

important where children live. The kit includes all the

components required for the installation, which becomes

easy and clean. Only the connections between the mixing

group and the boiler are not included. The copper pipe

connections ø 12 are available on request.

TMTSBV

C

MIX SB Miscelatore termost. sotto boiler completo di manopola con blocco sicurezza

Under boiler thermostatic mixer complete with handle with safety block

Caratteristiche tecnich

e

• corpo: ottone stampato uni en 12165 cw617n – sabbiato

• otturatore e organi interni: ottone uni en 12164 cw617n

• pressione max d’esercizio 10 ba

r

• n.b. per pressioni sup. a 5 bar montare un riduttor

e

• temperatura max acqua calda 85 °

C

• scala graduata manopola 20÷50 °

C

• connessioni 1/2”

M

Technical features

• body: uni en 12165 cw617n stamped brass - sandblasted

• shutter and internal organs: uni en 12164 cw617n bras

s

• maximum working pressure 10 ba

r

• n.b.: for pressures over 5 bar we recommend to use a reduce

r

• hot water maximum temperature 85 °C

• temperature scaled knob 20÷50 °

C

• 1/2” M connection

s
