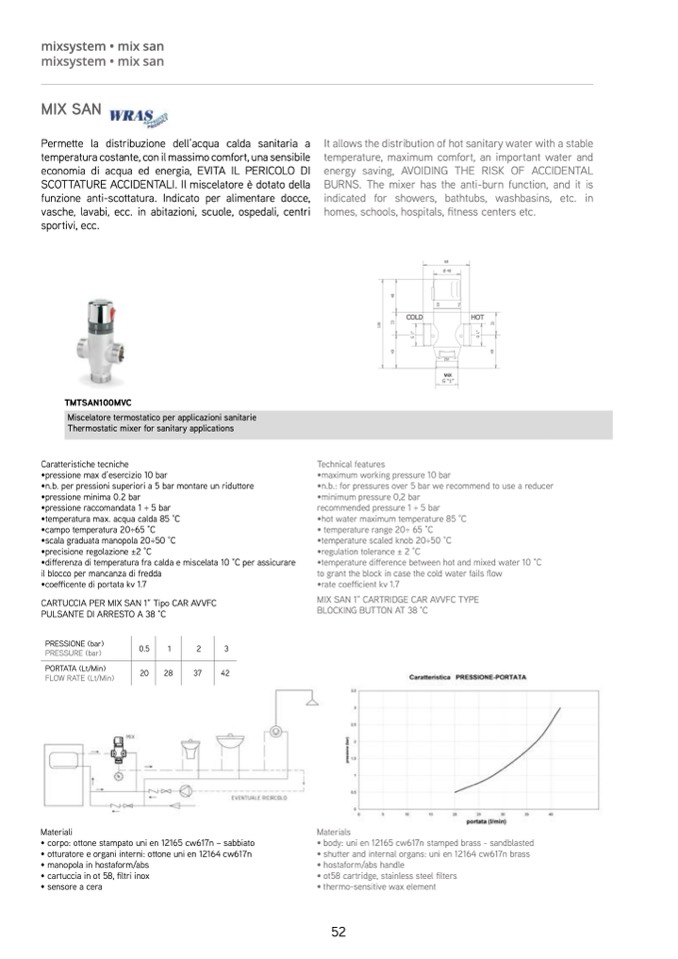

MIX SAN

Permette la distribuzione dell’acqua calda sanitaria a

temperatura costante, con il massimo comfort, una sensibil

e

economia di acqua ed energia, EVITA IL PERICOLO DI

SCOTTATURE ACCIDENTALI. Il miscelatore è dotato dell

a

funzione anti-scottatura. Indicato per alimentare docce

,

vasche, lavabi, ecc. in abitazioni, scuole, ospedali, centr

i

sportivi, ecc.

It allows the distribution of hot sanitary water with a stable

temperature, maximum comfort, an important water an

d

energy saving, AVOIDING THE RISK OF ACCIDENTAL

BURNS. The mixer has the anti-burn function, and it i

s

indicated for showers, bathtubs, washbasins, etc. i

n

homes, schools, hospitals, fitness centers etc.

68

4

0

ÿ

COLD

HO

T

1

3

0

3

3

4

9

4

8

G

1

"

G

1

"

4

9

3

3

G ì1

î

TMTSAN100MV

C

Miscelatore termostatico per applicazioni sanitarie

Thermostatic mixer for sanitary applications

Caratteristiche tecnich

e

•pressione max d’esercizio 10 ba

r

•n.b. per pressioni superiori a 5 bar montare un riduttor

e

•pressione minima 0.2 bar

•pressione raccomandata 1 ÷ 5 bar

•temperatura max. acqua calda 85 °C

•campo temperatura 20÷65 °

C

•scala graduata manopola 20÷50 °C

•precisione regolazione ±2 °

C

•di

fferenza di temperatura fra calda e miscelata 10 °C per assicurare

il blocco per mancanza di fredda

•coe

fficente di portata kv 1.7

CARTUCCIA PER MIX SAN 1” Tipo CAR AVVFC

PULSANTE DI ARRESTO A 38 °

C

PRESSIONE (bar

)

PRESSURE (bar)

0.5

Technical features

•maximum working pressure 10 ba

r

•n.b.: for pressures over 5 bar we recommend to use a reducer

•minimum pressure 0,2 ba

r

recommended pressure 1 ÷ 5 bar

•hot water maximum temperature 85 °C

• temperature range 20÷ 65 °

C

•temperature scaled knob 20÷50 °C

•regulation tolerance ± 2 °C

•temperature di

fference between hot and mixed water 10 °C

to grant the block in case the cold water fails flo

w

•rate coefficient kv 1.

7

MIX SAN 1” CARTRIDGE CAR AVVFC TYP

E

BLOCKING BUTTON AT 38 °C

1

2

3

PORTATA (Lt/Min)

FLOW RATE (Lt/Min)

20

28

37

42

Material

i

• corpo: ottone stampato uni en 12165 cw617n – sabbiat

o

• otturatore e organi interni: ottone uni en 12164 cw617

n

• manopola in hostaform/ab

s

• cartuccia in ot 58, filtri ino

x

• sensore a cera

Material

s

• body: uni en 12165 cw617n stamped brass - sandblaste

d

• shutter and internal organs: uni en 12164 cw617n bras

s

• hostaform/abs handle

• ot58 cartridge, stainless steel filter

s

• thermo-sensitive wax elemen

t
