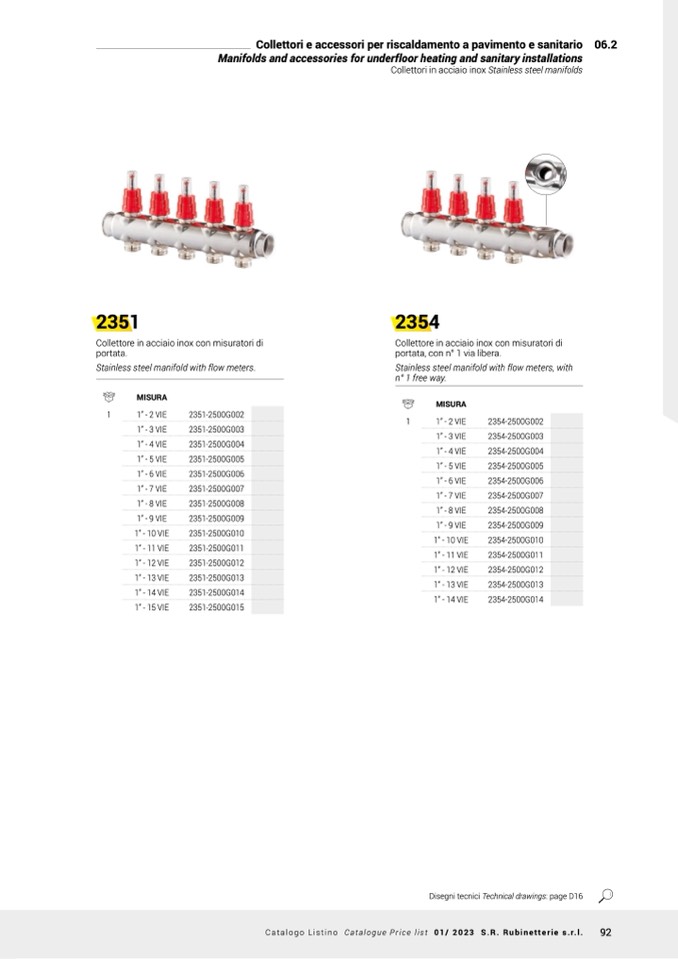

Collettori e accessori per riscaldamento a pavimento e sanitario 06.2

Manifolds and accessories for underfloor heating and sanitary installations

Collettori in acciaio inox Stainless steel manifolds

2354

Collettore in acciaio inox con misuratori di

portata, con n° 1 via libera.

Stainless steel manifold with flow meters, with

n° 1 free way.

MISURA

1

1” - 2 VIE

1” - 3 VIE

1” - 4 VIE

1” - 5 VIE

1” - 6 VIE

1” - 7 VIE

1” - 8 VIE

1” - 9 VIE

1” - 10 VIE

1” - 11 VIE

1” - 12 VIE

1” - 13 VIE

1” - 14 VIE

2351

Collettore in acciaio inox con misuratori di

portata.

Stainless steel manifold with flow meters.

MISURA

1

1” - 2 VIE

1” - 3 VIE

1” - 4 VIE

1” - 5 VIE

1” - 6 VIE

1” - 7 VIE

1” - 8 VIE

1” - 9 VIE

1” - 10 VIE

1” - 11 VIE

1” - 12 VIE

1” - 13 VIE

1” - 14 VIE

1” - 15 VIE

2351-2500G002

2351-2500G003

2351-2500G004

2351-2500G005

2351-2500G006

2351-2500G007

2351-2500G008

2351-2500G009

2351-2500G010

2351-2500G011

2351-2500G012

2351-2500G013

2351-2500G014

2351-2500G015

2354-2500G002

2354-2500G003

2354-2500G004

2354-2500G005

2354-2500G006

2354-2500G007

2354-2500G008

2354-2500G009

2354-2500G010

2354-2500G011

2354-2500G012

2354-2500G013

2354-2500G014

Disegni tecnici Technical drawings: page D16

Catalogo Listino Catalogue Price list 01/ 2023 S.R. Rubinetterie s.r.l.

92
