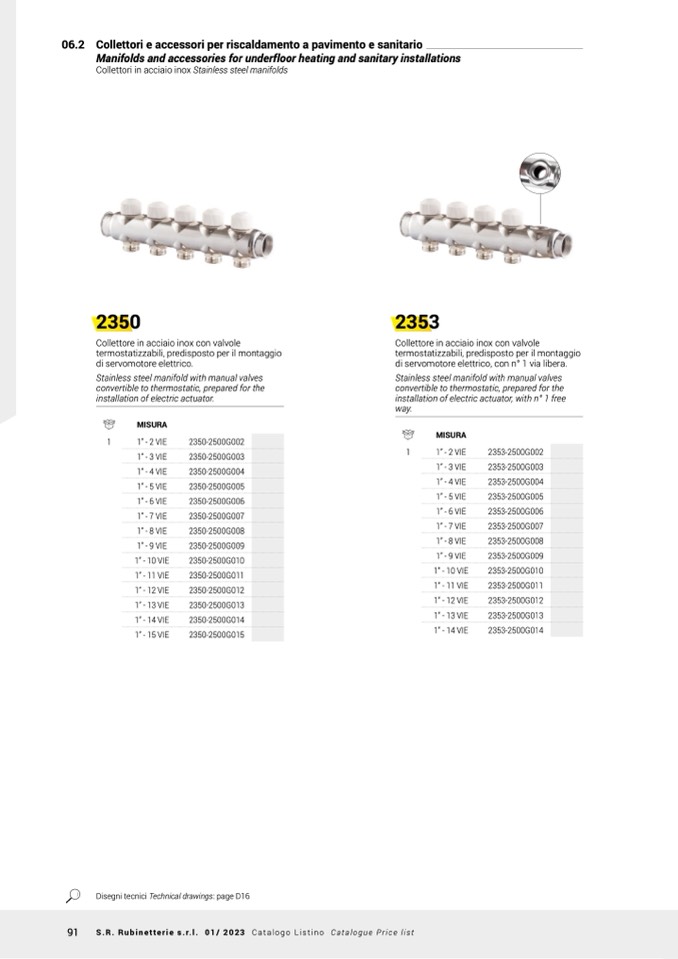

06.2 Collettori e accessori per riscaldamento a pavimento e sanitario

Manifolds and accessories for underfloor heating and sanitary installations

Collettori in acciaio inox Stainless steel manifolds

2350

Collettore in acciaio inox con valvole

termostatizzabili, predisposto per il montaggio

di servomotore elettrico.

Stainless steel manifold with manual valves

convertible to thermostatic, prepared for the

installation of electric actuator.

MISURA

1

1” - 2 VIE

1” - 3 VIE

1” - 4 VIE

1” - 5 VIE

1” - 6 VIE

1” - 7 VIE

1” - 8 VIE

1” - 9 VIE

1” - 10 VIE

1” - 11 VIE

1” - 12 VIE

1” - 13 VIE

1” - 14 VIE

1” - 15 VIE

2353

Collettore in acciaio inox con valvole

termostatizzabili, predisposto per il montaggio

di servomotore elettrico, con n° 1 via libera.

Stainless steel manifold with manual valves

convertible to thermostatic, prepared for the

installation of electric actuator, with n° 1 free

way.

MISURA

1

1” - 2 VIE

1” - 3 VIE

1” - 4 VIE

1” - 5 VIE

1” - 6 VIE

1” - 7 VIE

1” - 8 VIE

1” - 9 VIE

1” - 10 VIE

1” - 11 VIE

1” - 12 VIE

1” - 13 VIE

1” - 14 VIE

2350-2500G002

2350-2500G003

2350-2500G004

2350-2500G005

2350-2500G006

2350-2500G007

2350-2500G008

2350-2500G009

2350-2500G010

2350-2500G011

2350-2500G012

2350-2500G013

2350-2500G014

2350-2500G015

2353-2500G002

2353-2500G003

2353-2500G004

2353-2500G005

2353-2500G006

2353-2500G007

2353-2500G008

2353-2500G009

2353-2500G010

2353-2500G011

2353-2500G012

2353-2500G013

2353-2500G014

Disegni tecnici Technical drawings: page D16
