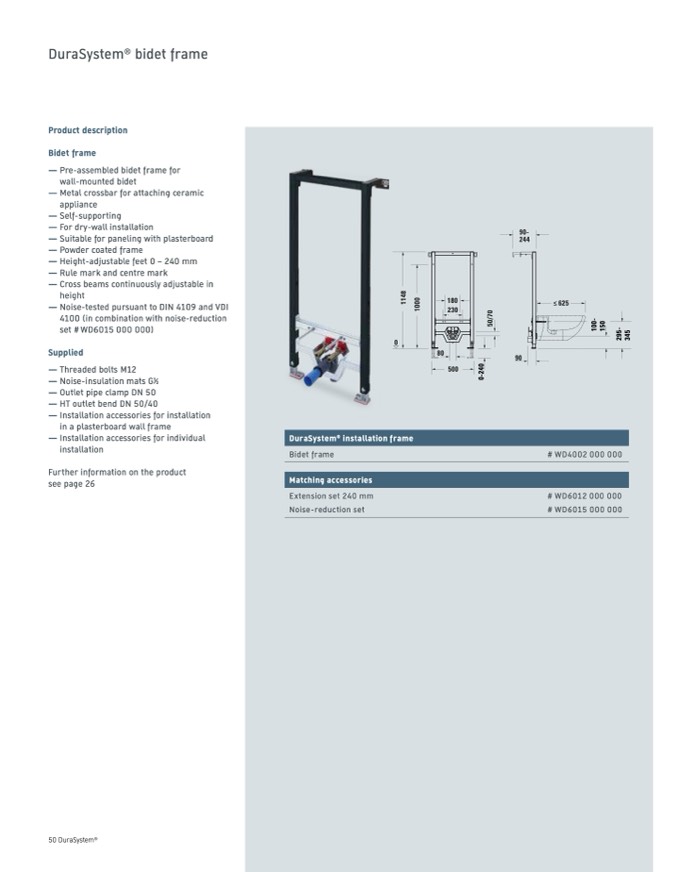

DuraSystem

®

bidet frame

Product description

Bidet frame

— Pre-assembled bidet frame for

wall-mounted bidet

— Metal crossbar for attaching ceramic

appliance

— Self-supporting

— For dry-wall installation

— Suitable for paneling with plasterboard

— Powder coated frame

— Height-adjustable feet 0 – 240 mm

— Rule mark and centre mark

— Cross beams continuously adjustable in

height

— Noise-tested pursuant to DIN 4109 and VDI

4100 (in combination with noise-reduction

set # WD6015 000 000)

Supplied

— Threaded bolts M12

— Noise-insulation mats G1⁄2

— Outlet pipe clamp DN 50

— HT outlet bend DN 50/40

— Installation accessories for installation

in a plasterboard wall frame

— Installation accessories for individual

installation

Further information on the product

see page 26

180

230

500

90-

244

90

≥ 625

0

-

2

4

0

2

9

5

-

3

4

5

5

0

/

7

0

1

0

0

-

1

5

0

1

1

4

8

1

0

0

0

50 DuraSystem

®

0

DuraSystem

®

installation frame

Bidet frame

Matching accessories

Extension set 240 mm

Noise-reduction set

80

# WD4002 000 000

# WD6012 000 000

# WD6015 000 000
