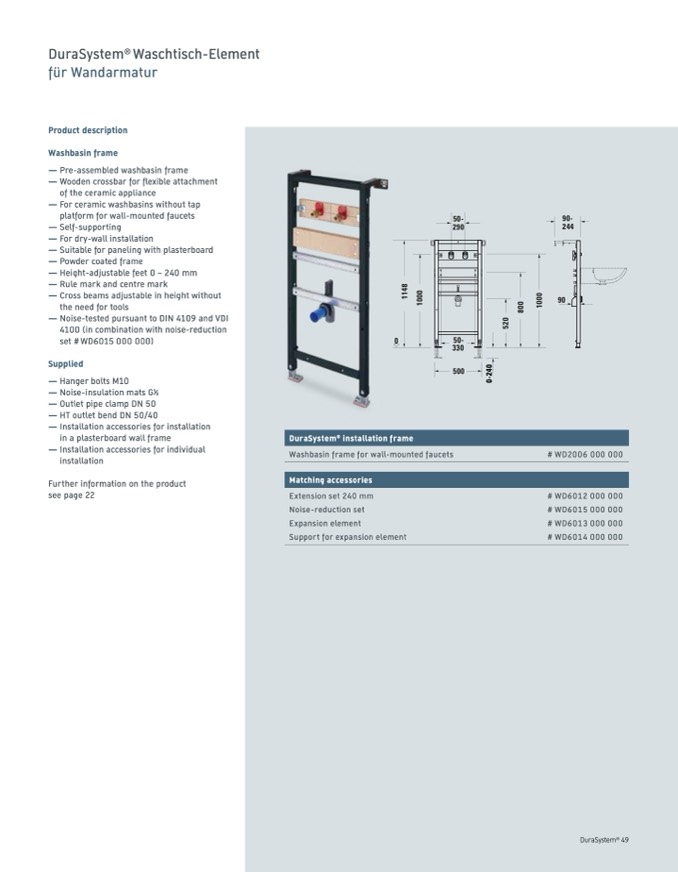

DuraSystem

®

Waschtisch-Element

für Wandarmatur

Product description

Washbasin frame

— Pre-assembled washbasin frame

— Wooden crossbar for flexible attachment

of the ceramic appliance

— For ceramic washbasins without tap

platform for wall-mounted faucets

— Self-supporting

290

— For dry-wall installation

— Suitable for paneling with plasterboard

— Powder coated frame

— Height-adjustable feet 0 – 240 mm

— Rule mark and centre mark

— Cross beams adjustable in height without

90-

244

90

the need for tools

— Noise-tested pursuant to DIN 4109 and VDI

4100 (in combination with noise-reduction

set # WD6015 000 000)

Supplied

— Hanger bolts M10

— Noise-insulation mats G1⁄2

— Outlet pipe clamp DN 50

— HT outlet bend DN 50/40

— Installation accessories for installation

in a plasterboard wall frame

— Installation accessories for individual

installation

Further information on the product

see page 22

50-

0

50-

330

500

DuraSystem

®

installation frame

Washbasin frame for wall-mounted faucets

Matching accessories

Extension set 240 mm

Noise-reduction set

Expansion element

Support for expansion element

# WD2006 000 000

# WD6012 000 000

# WD6015 000 000

# WD6013 000 000

# WD6014 000 000

0

-

2

4

0

5

2

0

8

0

0

1

1

4

8

1

0

0

0

1

0

0

0

DuraSystem

®

49
