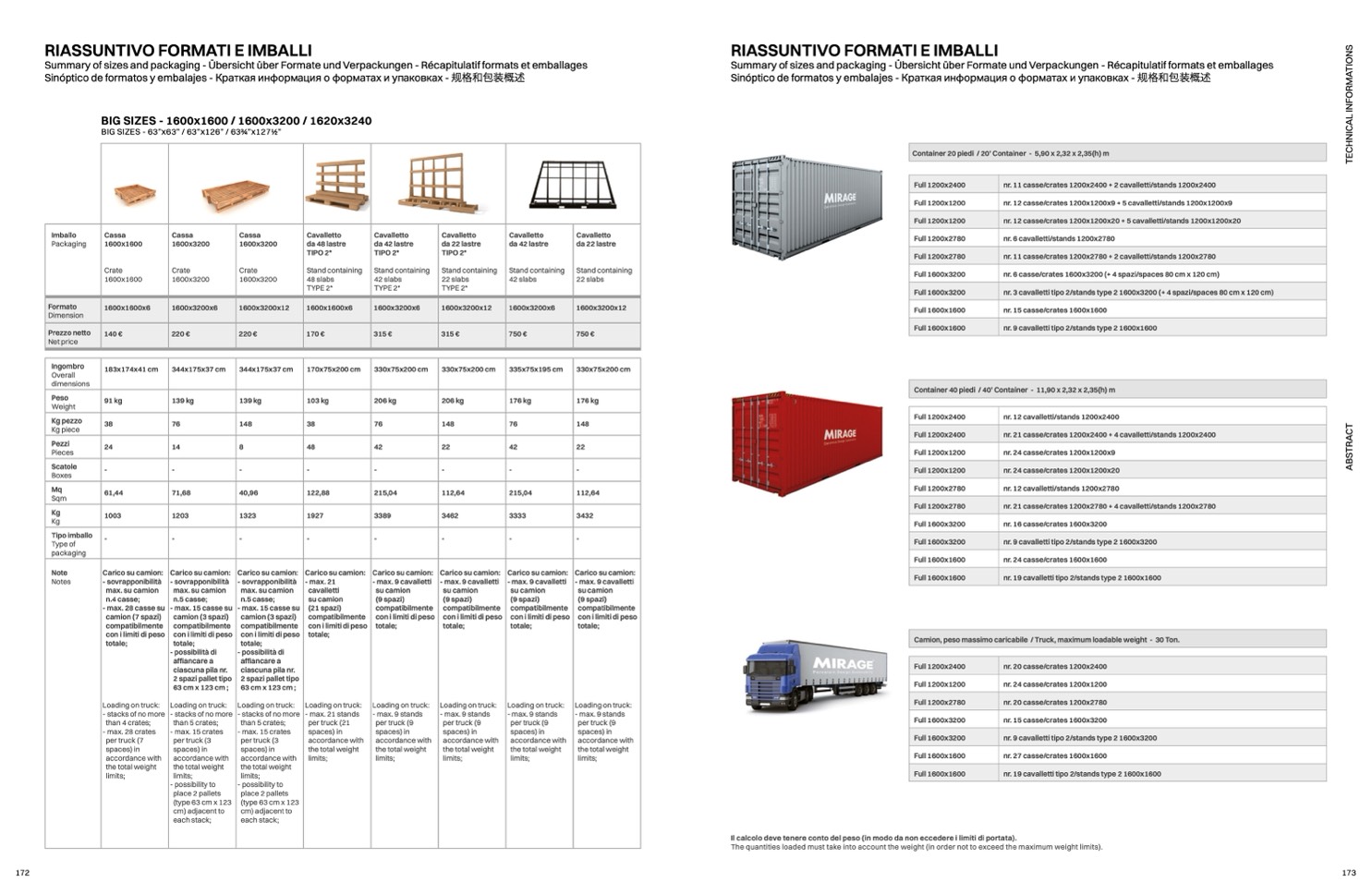

RIASSUNTIVO FORMATI E IMBALLI
Summary of sizes and packaging - Übersicht über Formate und Verpackungen - R
écapitulatif formats et emballages
Sin
óptico de formatos y embalajes -
Краткая информация о форматах и упаковках
- 规格和包装概述
BIG SIZES - 1600x1600 / 1600x3200 / 1620x3240
BIG SIZES - 63”x63” / 63”x126” / 633/4”x1271⁄2”
RIASSUNTIVO FORMATI E IMBALLI
Summary of sizes and packaging -
Übersicht
über Formate und Verpackungen - R
écapitulatif formats et emballages
Sin
óptico de formatos y embalajes -
Краткая информация о форматах и упаковках
- 规格和包装概述
Il calcolo deve tenere conto del peso (in modo da non eccedere i limiti di portata).
The quantities loaded must take into account the weight (in order not to exceed the maximum weight limits).
A
B
S
T
R
A
C
T
T
E
C
H
N
I
C
A
L
I
N
F
O
R
M
A
T
I
O
N
S
Container 20 piedi / 20’ Container - 5,90 x 2,32 x 2,35(h) m
Full 1200x2400
nr. 11 casse/crates 1200x2400 + 2 cavalletti/stands 1200x2400
Full 1200x1200
nr. 12 casse/crates 1200x1200x9 + 5 cavalletti/stands 1200x1200x9
Full 1200x1200
nr. 12 casse/crates 1200x1200x20 + 5 cavalletti/stands 1200x1200x20
Full 1200x2780
nr. 6 cavalletti/stands 1200x2780
Full 1200x2780
nr. 11 casse/crates 1200x2780 + 2 cavalletti/stands 1200x2780
Full 1600x3200
nr. 6 casse/crates 1600x3200 (+ 4 spazi/spaces 80 cm x 120 cm)
Full 1600x3200
nr. 3 cavalletti tipo 2/stands type 2 1600x3200 (+ 4 spazi/spaces 80 cm x 120 cm)
Full 1600x1600
nr. 15 casse/crates 1600x1600
Full 1600x1600
nr. 9 cavalletti tipo 2/stands type 2 1600x1600
Imballo
Packaging
Cassa
1600x1600
Crate
1600x1600
Cassa
1600x3200
Crate
1600x3200
Cassa
1600x3200
Crate
1600x3200
Cavalletto
da 48 lastre
TIPO 2*
Stand containing
48 slabs
TYPE 2*
Cavalletto
da 42 lastre
TIPO 2*
Stand containing
42 slabs
TYPE 2*
Cavalletto
da 22 lastre
TIPO 2*
Stand containing
22 slabs
TYPE 2*
Cavalletto
da 42 lastre
Stand containing
42 slabs
Cavalletto
da 22 lastre
Stand containing
22 slabs
Formato
Dimension
1600x1600x6
1600x3200x6
1600x3200x12
1600x1600x6
1600x3200x6
1600x3200x12
1600x3200x6
1600x3200x12
Prezzo netto
Net price
140 €
220 €
220 €
170 €
315 €
315 €
750 €
750 €
Ingombro
Overall
dimensions
183x174x41 cm
344x175x37 cm
344x175x37 cm
170x75x200 cm
330x75x200 cm
330x75x200 cm
335x75x195 cm
330x75x200 cm
Peso
Weight
91 kg
139 kg
139 kg
103 kg
206 kg
206 kg
176 kg
176 kg
Kg pezzo
Kg piece
38
76
148
38
76
148
76
148
Pezzi
Pieces
24
14
8
48
42
22
42
22
Scatole
Boxes
-
-
-
-
-
-
-
-
Mq
Sqm
61,44
71,68
40,96
122,88
215,04
112,64
215,04
112,64
Kg
Kg
1003
1203
1323
1927
3389
3462
3333
3432
Tipo imballo
Type of
packaging
-
-
-
-
-
-
-
-
Note
Notes
Carico su camion:
- sovrapponibilit
à
max. su camion
n.4 casse;
- max. 28 casse su
camion (7 spazi)
compatibilmente
con i limiti di peso
totale;
Loading on truck:
- stacks of no more
than 4 crates;
- max. 28 crates
per truck (7
spaces) in
accordance with
the total weight
limits;
Carico su camion:
- sovrapponibilit
à
max. su camion
n.5 casse;
- max. 15 casse su
camion (3 spazi)
compatibilmente
con i limiti di peso
totale;
- possibilità di
affiancare a
ciascuna pila nr.
2 spazi pallet tipo
63 cm x 123 cm ;
Loading on truck:
- stacks of no more
than 5 crates;
- max. 15 crates
per truck (3
spaces) in
accordance with
the total weight
limits;
- possibility to
place 2 pallets
(type 63 cm x 123
cm) adjacent to
each stack;
Carico su camion:
- sovrapponibilità
max. su camion
n.5 casse;
- max. 15 casse su
camion (3 spazi)
compatibilmente
con i limiti di peso
totale;
- possibilità di
affiancare a
ciascuna pila nr.
2 spazi pallet tipo
63 cm x 123 cm ;
Loading on truck:
- stacks of no more
than 5 crates;
- max. 15 crates
per truck (3
spaces) in
accordance with
the total weight
limits;
- possibility to
place 2 pallets
(type 63 cm x 123
cm) adjacent to
each stack;
Carico su camion:
- max. 21
cavalletti
su camion
(21 spazi)
compatibilmente
con i limiti di peso
totale;
Loading on truck:
- max. 21 stands
per truck (21
spaces) in
accordance with
the total weight
limits;
Carico su camion:
- max. 9 cavalletti
su camion
(9 spazi)
compatibilmente
con i limiti di peso
totale;
Loading on truck:
- max. 9 stands
per truck (9
spaces) in
accordance with
the total weight
limits;
Carico su camion:
- max. 9 cavalletti
su camion
(9 spazi)
compatibilmente
con i limiti di peso
totale;
Loading on truck:
- max. 9 stands
per truck (9
spaces) in
accordance with
the total weight
limits;
Carico su camion:
- max. 9 cavalletti
su camion
(9 spazi)
compatibilmente
con i limiti di peso
totale;
Loading on truck:
- max. 9 stands
per truck (9
spaces) in
accordance with
the total weight
limits;
Carico su camion:
- max. 9 cavalletti
su camion
(9 spazi)
compatibilmente
con i limiti di peso
totale;
Loading on truck:
- max. 9 stands
per truck (9
spaces) in
accordance with
the total weight
limits;
Container 40 piedi / 40’ Container - 11,90 x 2,32 x 2,35(h) m
Full 1200x2400
nr. 12 cavalletti/stands 1200x2400
Full 1200x2400
nr. 21 casse/crates 1200x2400 + 4 cavalletti/stands 1200x2400
Full 1200x1200
nr. 24 casse/crates 1200x1200x9
Full 1200x1200
nr. 24 casse/crates 1200x1200x20
Full 1200x2780
nr. 12 cavalletti/stands 1200x2780
Full 1200x2780
nr. 21 casse/crates 1200x2780 + 4 cavalletti/stands 1200x2780
Full 1600x3200
nr. 16 casse/crates 1600x3200
Full 1600x3200
nr. 9 cavalletti tipo 2/stands type 2 1600x3200
Full 1600x1600
nr. 24 casse/crates 1600x1600
Full 1600x1600
nr. 19 cavalletti tipo 2/stands type 2 1600x1600
Camion, peso massimo caricabile / Truck, maximum loadable weight - 30 Ton.
Full 1200x2400
nr. 20 casse/crates 1200x2400
Full 1200x1200
nr. 24 casse/crates 1200x1200
Full 1200x2780
nr. 20 casse/crates 1200x2780
Full 1600x3200
nr. 15 casse/crates 1600x3200
Full 1600x3200
nr. 9 cavalletti tipo 2/stands type 2 1600x3200
Full 1600x1600
nr. 27 casse/crates 1600x1600
Full 1600x1600
nr. 19 cavalletti tipo 2/stands type 2 1600x1600
