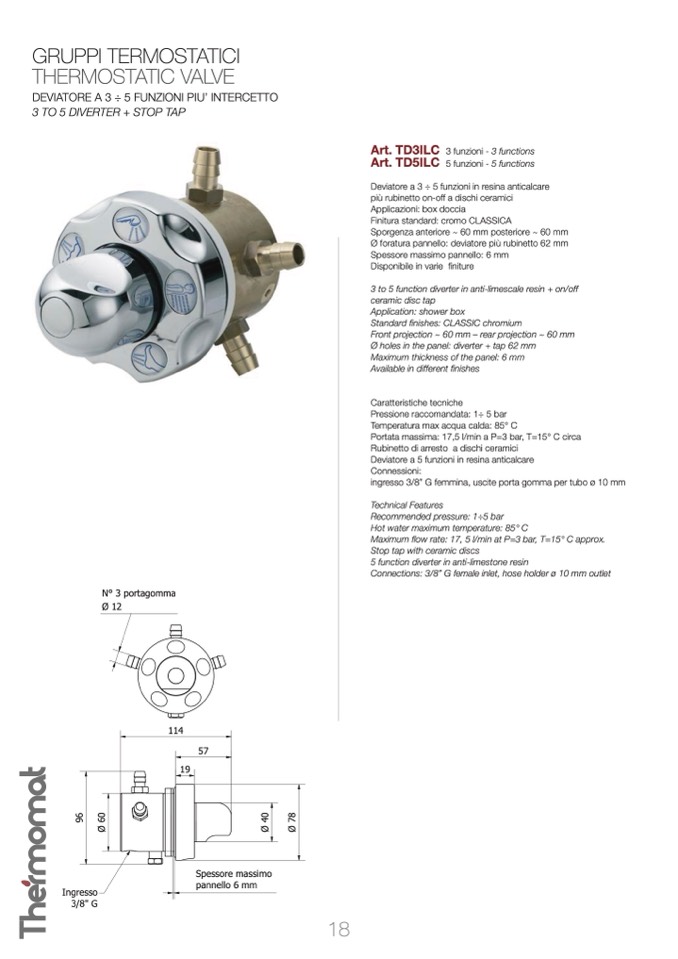

GRUPPI TERMOSTATICI

THERMOSTATIC VALVE

DEVIATORE A 3 ÷ 5 FUNZIONI PIU’ INTERCETTO

3 TO 5 DIVERTER + STOP TAP

Ingresso

3/8" G

Spessore massimo

pannello 6 mm

N° 3 portagomma

Ø 12

114

57

19

18

Art. TD3ILC 3 funzioni - 3 functions

Art. TD5ILC 5 funzioni - 5 functions

Deviatore a 3 ÷ 5 funzioni in resina anticalcare

più rubinetto on-off a dischi ceramici

Applicazioni: box doccia

Finitura standard: cromo CLASSICA

Sporgenza anteriore ~ 60 mm posteriore ~ 60 mm

Ø foratura pannello: deviatore più rubinetto 62 mm

Spessore massimo pannello: 6 mm

Disponibile in varie finiture

3 to 5 function diverter in anti-limescale resin + on/off

ceramic disc tap

Application: shower box

Standard finishes: CLASSIC chromium

Front projection ~ 60 mm – rear projection ~ 60 mm

Ø holes in the panel: diverter + tap 62 mm

Maximum thickness of the panel: 6 mm

Available in different finishes

Caratteristiche tecniche

Pressione raccomandata: 1÷ 5 bar

Temperatura max acqua calda: 85° C

Portata massima: 17,5 l/min a P=3 bar, T=15° C circa

Rubinetto di arresto a dischi ceramici

Deviatore a 5 funzioni in resina anticalcare

Connessioni:

ingresso 3/8” G femmina, uscite porta gomma per tubo ø 10 mm

Technical Features

Recommended pressure: 1÷5 bar

Hot water maximum temperature: 85° C

Maximum flow rate: 17, 5 l/min at P=3 bar, T=15° C approx.

Stop tap with ceramic discs

5 function diverter in anti-limestone resin

Connections: 3/8” G female inlet, hose holder ø 10 mm outlet
