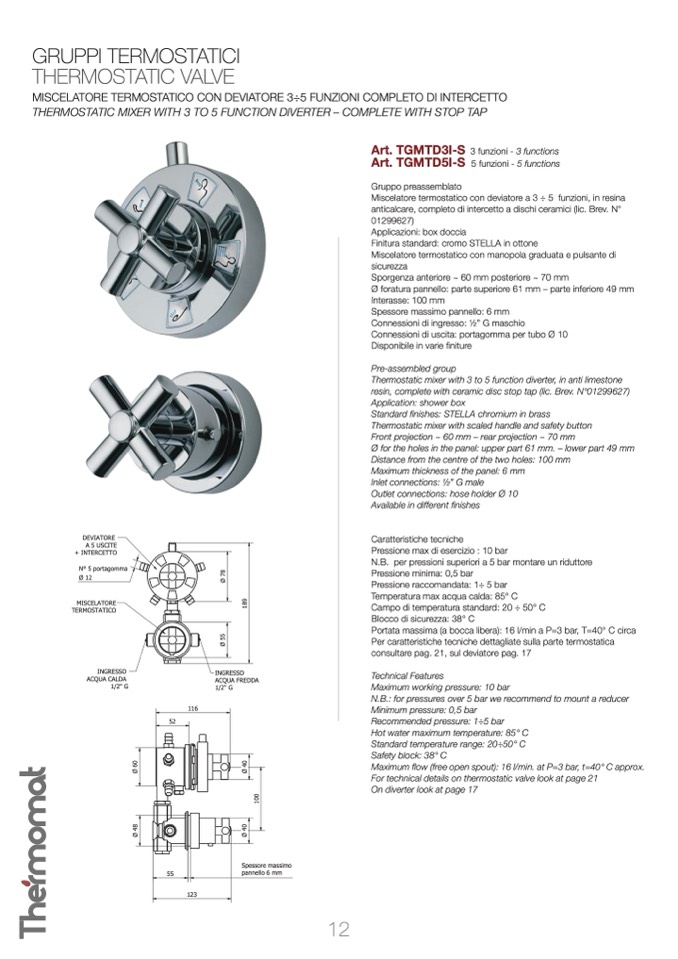

GRUPPI TERMOSTATICI

THERMOSTATIC VALVE

MISCELATORE TERMOSTATICO CON DEVIATORE 3÷5 FUNZIONI COMPLETO DI INTERCETTO

THERMOSTATIC MIXER WITH 3 TO 5 FUNCTION DIVERTER – COMPLETE WITH STOP TAP

Art. TGMTD3I-S 3 funzioni - 3 functions

DEVIATORE

A 5 USCITE

+ INTERCETTO

N° 5 portagomma

Ø 12

MISCELATORE

TERMOSTATICO

INGRESSO

ACQUA CALDA

1/2" G

INGRESSO

ACQUA FREDDA

1/2" G

Art. TGMTD5I-S 5 funzioni - 5 functions

Gruppo preassemblato

Miscelatore termostatico con deviatore a 3 ÷ 5 funzioni, in resina

anticalcare, completo di intercetto a dischi ceramici (lic. Brev. N°

01299627)

Applicazioni: box doccia

Finitura standard: cromo STELLA in ottone

Miscelatore termostatico con manopola graduata e pulsante di

sicurezza

Sporgenza anteriore ~ 60 mm posteriore ~ 70 mm

Ø foratura pannello: parte superiore 61 mm – parte inferiore 49 mm

Interasse: 100 mm

Spessore massimo pannello: 6 mm

Connessioni di ingresso: 1⁄2” G maschio

Connessioni di uscita: portagomma per tubo Ø 10

Disponibile in varie finiture

Pre-assembled group

Thermostatic mixer with 3 to 5 function diverter, in anti limestone

resin, complete with ceramic disc stop tap (lic. Brev. N°01299627)

Application: shower box

Standard finishes: STELLA chromium in brass

Thermostatic mixer with scaled handle and safety button

Front projection ~ 60 mm – rear projection ~ 70 mm

Ø for the holes in the panel: upper part 61 mm. – lower part 49 mm

Distance from the centre of the two holes: 100 mm

Maximum thickness of the panel: 6 mm

Inlet connections: 1⁄2” G male

Outlet connections: hose holder Ø 10

Available in different finishes

Caratteristiche tecniche

Pressione max di esercizio : 10 bar

N.B. per pressioni superiori a 5 bar montare un riduttore

Pressione minima: 0,5 bar

Pressione raccomandata: 1÷ 5 bar

Temperatura max acqua calda: 85° C

Campo di temperatura standard: 20 ÷ 50° C

Blocco di sicurezza: 38° C

Portata massima (a bocca libera): 16 l/min a P=3 bar, T=40° C circa

Per caratteristiche tecniche dettagliate sulla parte termostatica

consultare pag. 21, sul deviatore pag. 17

Technical Features

Maximum working pressure: 10 bar

N.B.: for pressures over 5 bar we recommend to mount a reducer

Minimum pressure: 0,5 bar

Recommended pressure: 1÷5 bar

Hot water maximum temperature: 85° C

Standard temperature range: 20÷50° C

Safety block: 38° C

Maximum flow (free open spout): 16 l/min. at P=3 bar, t=40° C approx.

For technical details on thermostatic valve look at page 21

On diverter look at page 17

52

Ø

4

8

Ø

6

0

Ø

4

0

Ø

4

0

Ø

5

5

Ø

7

8

1

8

9

1

0

0

55

Spessore massimo

pannello 6 mm

116

123
