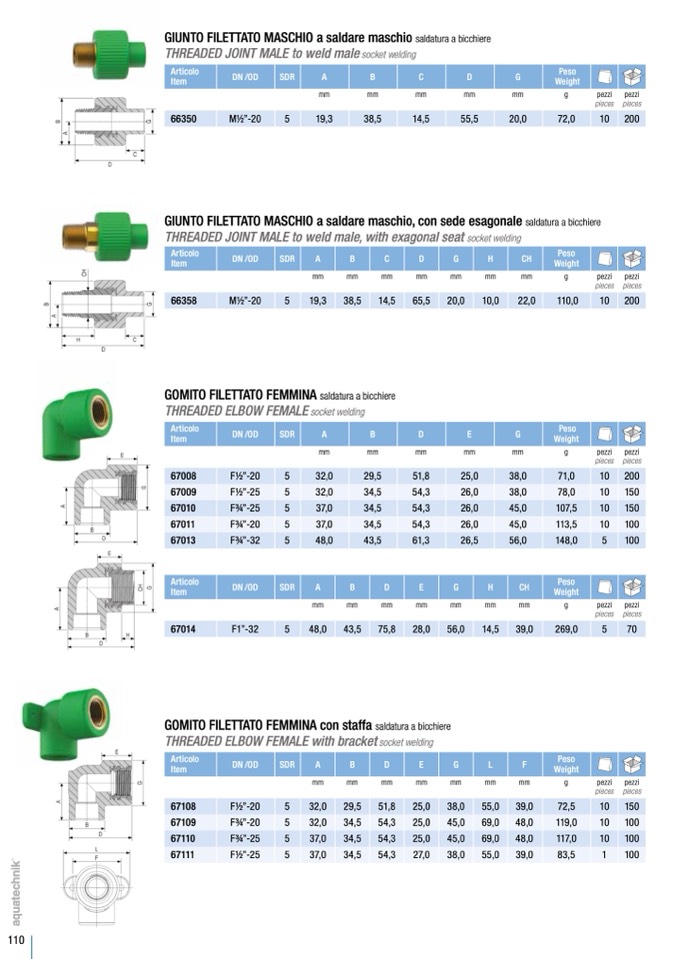

GIUNTO FILETTATO MASCHIO a saldare maschio saldatura a bicchiere
THREADED JOINT MALE to weld male socket welding
Articolo
Item
66350
DN /OD
M1⁄2”-20
SDR
5
A
mm
19,3
B
mm
38,5
C
mm
14,5
D
mm
55,5
G
mm
20,0
Peso
Weight
g
72,0
pezzi
pieces
10
200
pezzi
pieces
GIUNTO FILETTATO MASCHIO a saldare maschio, con sede esagonale saldatura a bicchiere
THREADED JOINT MALE to weld male, with exagonal seat socket welding
GOMITO FILETTATO FEMMINA saldatura a bicchiere
THREADED ELBOW FEMALE socket welding
pezzi
pieces
Articolo
Item
66358
DN /OD
M
1⁄2”-20
SDR
5
A
mm
19,3
B
mm
38,5
C
mm
14,5
D
mm
65,5
G
mm
20,0
H
mm
10,0
CH
mm
22,0
Peso
Weight
g
110,0
pezzi
pieces
10
200
Articolo
Item
67008
67009
67010
67011
67013
DN /OD
F1⁄2”-20
F
1⁄2”-25
F
3⁄4”-25
F3⁄4”-20
F
3⁄4”-32
SDR
5
5
5
5
5
A
mm
32,0
32,0
37,0
37,0
48,0
B
mm
29,5
34,5
34,5
34,5
43,5
D
mm
51,8
54,3
54,3
54,3
61,3
E
mm
25,0
26,0
26,0
26,0
26,5
G
mm
38,0
38,0
45,0
45,0
56,0
Peso
Weight
g
71,0
78,0
107,5
113,5
148,0
pezzi
pieces
10
10
10
10
5
200
150
150
100
100
pezzi
pieces
pezzi
pieces
Articolo
Item
67014
DN /OD
F1”-32
SDR
5
A
mm
48,0
B
mm
43,5
D
mm
75,8
E
mm
28,0
G
mm
56,0
H
mm
14,5
CH
mm
39,0
Peso
Weight
g
269,0
pezzi
pieces
5
70
GOMITO FILETTATO FEMMINA con staffa saldatura a bicchiere
THREADED ELBOW FEMALE with bracket socket welding
Articolo
Item
67108
67109
67110
67111
DN /OD
F1⁄2”-20
F
3⁄4”-20
F3⁄4”-25
F1⁄2”-25
SDR
5
5
5
5
A
mm
32,0
32,0
37,0
37,0
B
mm
29,5
34,5
34,5
34,5
D
mm
51,8
54,3
54,3
54,3
E
mm
25,0
25,0
25,0
27,0
G
mm
38,0
45,0
45,0
38,0
L
mm
55,0
69,0
69,0
55,0
F
mm
39,0
48,0
48,0
39,0
Peso
Weight
g
72,5
119,0
117,0
83,5
pezzi
pieces
10
10
10
1
150
100
100
100
pezzi
pieces
