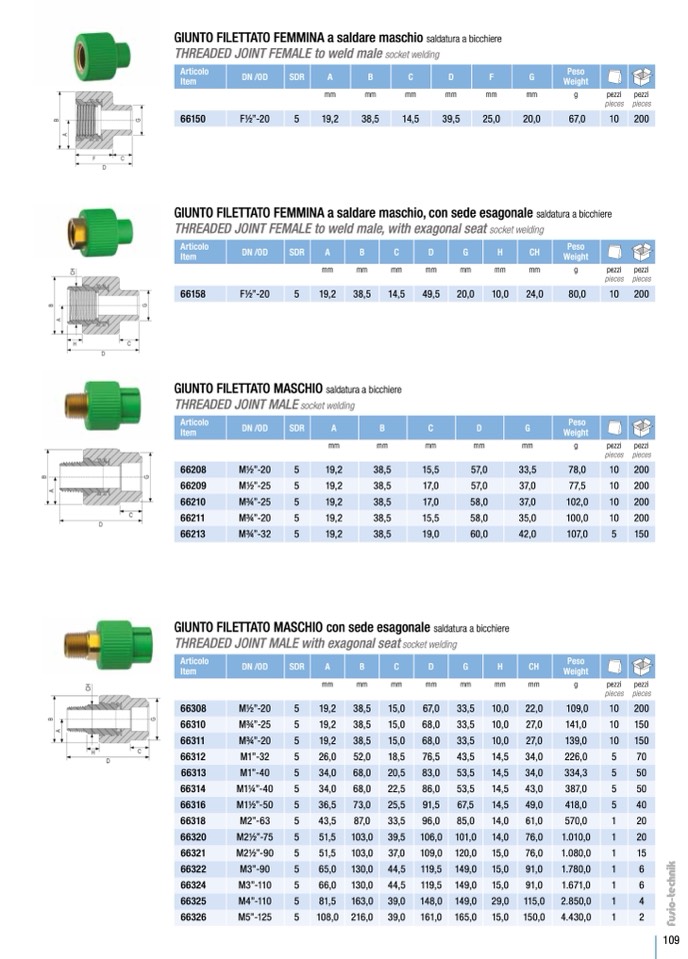

GIUNTO FILETTATO FEMMINA a saldare maschio saldatura a bicchiere
THREADED JOINT FEMALE to weld male socket welding
Articolo
Item
66150
DN /OD
F
1⁄2”-20
SDR
5
A
mm
19,2
B
mm
38,5
C
mm
14,5
D
mm
39,5
F
mm
25,0
G
mm
20,0
Peso
Weight
g
67,0
pezzi
pieces
10
200
pezzi
pieces
GIUNTO FILETTATO FEMMINA a saldare maschio, con sede esagonale saldatura a bicchiere
THREADED JOINT FEMALE to weld male, with exagonal seat socket welding
Articolo
Item
66158
DN /OD
F
1⁄2”-20
SDR
5
A
mm
19,2
B
mm
38,5
C
mm
14,5
D
mm
49,5
G
mm
20,0
H
mm
10,0
CH
mm
24,0
Peso
Weight
g
80,0
pezzi
pieces
10 200
pezzi
pieces
GIUNTO FILETTATO MASCHIO saldatura a bicchiere
THREADED JOINT MALE socket welding
Articolo
Item
66208
66209
66210
66211
66213
DN /OD
M
1⁄2”-20
M1⁄2”-25
M
3⁄4”-25
M3⁄4”-20
M
3⁄4”-32
SDR
5
5
5
5
5
A
mm
19,2
19,2
19,2
19,2
19,2
B
mm
38,5
38,5
38,5
38,5
38,5
C
mm
15,5
17,0
17,0
15,5
19,0
D
mm
57,0
57,0
58,0
58,0
60,0
G
mm
33,5
37,0
37,0
35,0
42,0
Peso
Weight
g
78,0
77,5
102,0
100,0
107,0
pezzi
pieces
10
10
10
10
5
200
200
200
200
150
pezzi
pieces
GIUNTO FILETTATO MASCHIO con sede esagonale saldatura a bicchiere
THREADED JOINT MALE with exagonal seat socket welding
Articolo
Item
66308
66310
66311
66312
66313
66314
66316
66318
66320
66321
66322
66324
66325
66326
DN /OD
M
1⁄2”-20
M
3⁄4”-25
M3⁄4”-20
M1”-32
M1”-40
M11⁄4”-40
M11⁄2”-50
M2”-63
M2
1⁄2”-75
M2
1⁄2”-90
M3”-90
M3”-110
M4”-110
M5”-125
SDR
5
5
5
5
5
5
5
5
5
5
5
5
5
5
A
mm
19,2
19,2
19,2
26,0
34,0
34,0
36,5
43,5
51,5
51,5
65,0
66,0
81,5
108,0
B
mm
38,5
38,5
38,5
52,0
68,0
68,0
73,0
87,0
103,0
103,0
130,0
130,0
163,0
216,0
C
mm
15,0
15,0
15,0
18,5
20,5
22,5
25,5
33,5
39,5
37,0
44,5
44,5
39,0
39,0
D
mm
67,0
68,0
68,0
76,5
83,0
86,0
91,5
96,0
106,0
109,0
119,5
119,5
148,0
161,0
G
mm
33,5
33,5
33,5
43,5
53,5
53,5
67,5
85,0
101,0
120,0
149,0
149,0
149,0
165,0
H
mm
10,0
10,0
10,0
14,5
14,5
14,5
14,5
14,0
14,0
15,0
15,0
15,0
29,0
15,0
CH
mm
22,0
27,0
27,0
34,0
34,0
43,0
49,0
61,0
76,0
76,0
91,0
91,0
115,0
150,0
Peso
Weight
g
109,0
141,0
139,0
226,0
334,3
387,0
418,0
570,0
1.010,0
1.080,0
1.780,0
1.671,0
2.850,0
4.430,0
pezzi
pieces
10
10
10
5
5
5
5
1
1
1
1
1
1
1
200
150
150
70
50
50
40
20
20
15
6
6
4
2
pezzi
pieces
109
